YR27LV-PREK (1983)

Toyota Van

Production Nov 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)4FC

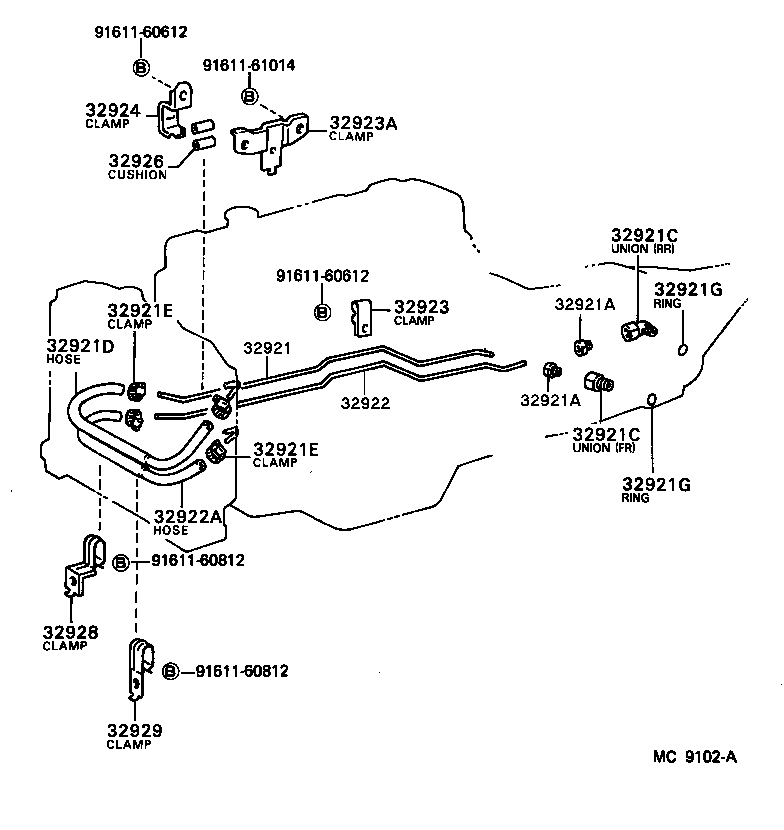

Click highlighted areas on diagram

diagram 32921 32921A 32921A 32921C 32921C 32921D 32921E 32921E 32921G 32921G 32922 32922A 32923 32923A 32924 32926 32928 32929 9161160612 9161160612 9161160812 9161160812 9161161014
Part # Description Qty Price
32921 - TUBE, OIL COOLER INLET, NO.1
32921-28021

YR2#..4FC

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

YR2#..4FC

FR

 1
90407-14003

YR2#..4FC

RR

 1
32921C - UNION(FOR OIL COOLER TUBE)
90404-14007

YR2#..4FC

FR

 1
90407-14003

YR2#..4FC

RR

 1
32921D - HOSE(FOR OIL COOLER INLET)
32941-28020

YR2#..4FC

 1
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

YR2#..4FC

 4
32921E - CLAMP, HOSE(FOR OIL COOLER)
90460-14085

YR2#..4FC

 4
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

YR2#,3#..4FC

 2
32921G - RING, O(FOR OIL COOLER TUBE UNION)
90301-10189

YR2#,3#..4FC

 2
32922 - TUBE, OIL COOLER OUTLET, NO.1
32922-28021

YR2#..4FC

 1
32922A - HOSE(FOR OIL COOLER OUTLET)
32942-28020

YR2#..4FC

 1
32923 - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
90461-08070

YR2#..4FC

 1
32923A - CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE
32923-28020

YR2#..4FC

 1
32924 - CLAMP, OIL COOLER TUBE, NO.2
32924-28010

YR2#..4FC

 1
32926 - CUSHION, OIL COOLER TUBE(ATM)
32926-30011

YR2#..4FC

L=25,ID=8

 2
32928 - CLAMP, FLEXIBLE HOSE, NO.1
90949-01047

YR2#..4FC

 1
32929 - CLAMP, FLEXIBLE HOSE, NO.2
90949-01046

YR2#..4FC

 1
Common parts
91611-60612
91611-60812
91611-61014
