YR22LG-PQEK (1988)
Toyota Van

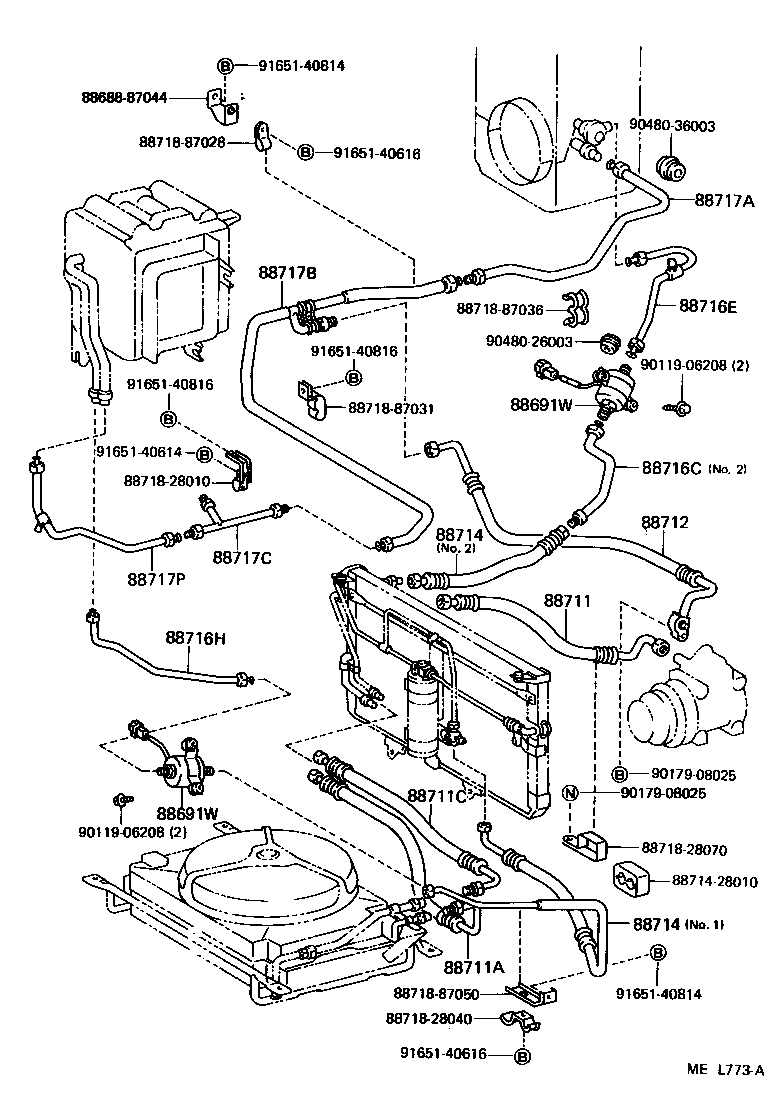

ILLUST NO. 2 OF 3(8808- )YR2#
PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88691W - VALVE, MAGNET | ||||
| 88690-28040 |
YR22..CND FRONT |
1 | ||
| 88691-87001 |
YR32;YR22..CND REAR |
1 | ||
| 88691-87001 |
YR22,31;YR29..USA REAR |
1 | ||
| 88691W - VALVE, MAGNET | ||||
| 88690-28040 |
YR22..CND FRONT |
1 | ||
| 88691-87001 |
YR32;YR22..CND REAR |
1 | ||
| 88691-87001 |
YR22,31;YR29..USA REAR |
1 | ||
| 88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1 | ||||
| 88711-28040 |
YR22;YR29..USA |
1 | ||
| 88711A - HOSE, COOLER REFRIGERANT DISCHARGE, NO.2 | ||||
| 88711-28023 |
YR22..CND |
1 | ||
| 88711C - HOSE, COOLER REFRIGERANT DISCHARGE, NO.3 | ||||
| 88711-28031 |
YR22..CND |
1 | ||
| 88712 - HOSE, COOLER REFRIGERANT SUCTION, NO.1 | ||||
| 88712-87016 |
YR2# W(FRONT AIR CONDITIONER) |
1 | ||
| 88712-28020 |
YR22;YR29..USA W(AIR CONDITIONER) |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-28030 |
YR22..CND NO.1 |
1 | ||
| 88721-87005 |
YR22..CND NO.2 |
1 | ||
| 88714 - HOSE, COOLER REFRIGERANT LIQUID, NO.1 | ||||
| 88721-28030 |
YR22..CND NO.1 |
1 | ||
| 88721-87005 |
YR22..CND NO.2 |
1 | ||
| 88716C - PIPE, COOLER REFRIGERANT LIQUID, C | ||||
| 88716-87027 |
YR32;YR22..CND NO.2 |
1 | ||
| 88716-87027 |
YR22,31;YR29..USA NO.2 |
1 | ||
| 88716E - PIPE, COOLER REFRIGERANT LIQUID, E | ||||
| 88716-28142 |
YR22..CND |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-28190 |
YR22..CND |
1 | ||
| 88716-28101 |
YR22;YR29..USA W(ICE COOL BOX) |
1 | ||
| 88716-28180 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88717A - PIPE, COOLER REFRIGERANT SUCTION, A | ||||
| 88717-87019 |
YR22..CND |
1 | ||
| 88717B - PIPE, COOLER REFRIGERANT SUCTION, B | ||||
| 88717-28070 |
YR22;YR29..USA MAKER OPTION |
1 | ||
| 88717-28140 |
YR2# W(FRONT AIR CONDITIONER) |
1 | ||
| 88717-28080 |
YR22;YR29..USA W(ICE COOL BOX) |
1 | ||
| 88717-28130 |
YR22..CND DEALER OPTION,W(DUAL AIR CON) |
1 | ||
| 88717C - PIPE, COOLER REFRIGERANT SUCTION, C | ||||
| 88717-28120 |
YR22..CND |
1 | ||
| 88717-28100 |
YR22,31;YR29..USA W(ICE COOL BOX) |
1 | ||
| 88717P - PIPE, COOLER REFRIGERANT SUCTION, P | ||||
| 88717-28061 |
YR22..CND |
1 | ||
| Common parts | ||||
| 88688-87044 | ||||
| 88714-28010 | ||||
| 88718-28010 | ||||
| 88718-28040 | ||||
| 88718-28070 | ||||
| 88718-87028 | ||||
| 88718-87031 | ||||
| 88718-87036 | ||||
| 88718-87050 | ||||
| 90119-06208 | ||||
| 90179-08025 | ||||
| 90480-26003 | ||||
| 90480-36003 | ||||
| 91651-40614 | ||||
| 91651-40616 | ||||
| 91651-40814 | ||||
| 91651-40816 | ||||

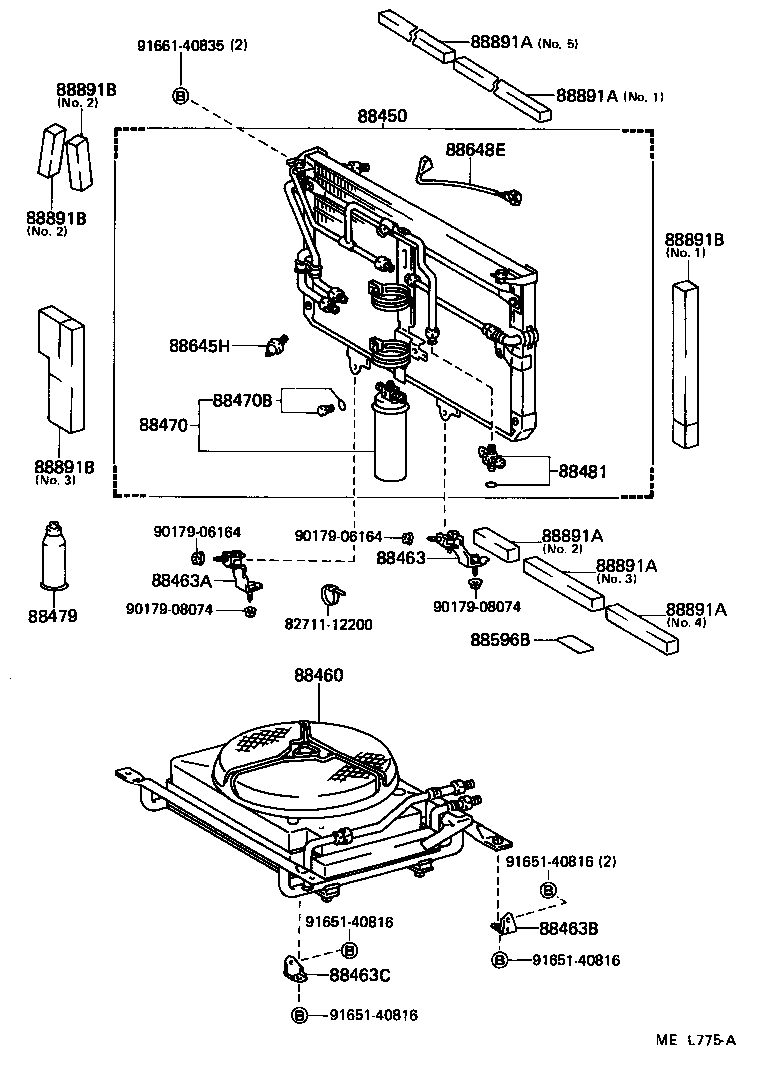

ILLUST NO. 1 OF 3(8808- )YR2#
CONDENSER,MAKER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88450 - CONDENSER ASSY, W/RECEIVER | ||||
| 88450-28011 |
YR22;YR29..USA |
1 | ||
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28020 |
YR22..CND RADIATOR |
1 | ||
| 88460-28011 |
YR22;YR29..USA FLOOR |
1 | ||
| 88460-28011 |
YR22..CND FLOOR |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28011 |
YR22..CND |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28021 |
YR22..CND |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-87014 |
YR22..CND |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-87015 |
YR22..CND |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
YR22..CND |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
YR22..CND |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YR2#,3# 400G,400G |
3 | ||
| 90986-02004 |
YR2#,3# 250G,250G |
3 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87004 |
YR22..CND |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88723-28010 |
YR22,31;YR29..USA W(AIR CONDITIONER) |
1 | ||
| 88645H - SWITCH, PRESSURE NO.1 | ||||
| 88645-12020 |
YR22;YR29..USA |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-28071 |
YR22..CND |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 90179-06164 | ||||
| 90179-08074 | ||||
| 91651-40816 | ||||
| 91661-40835 | ||||

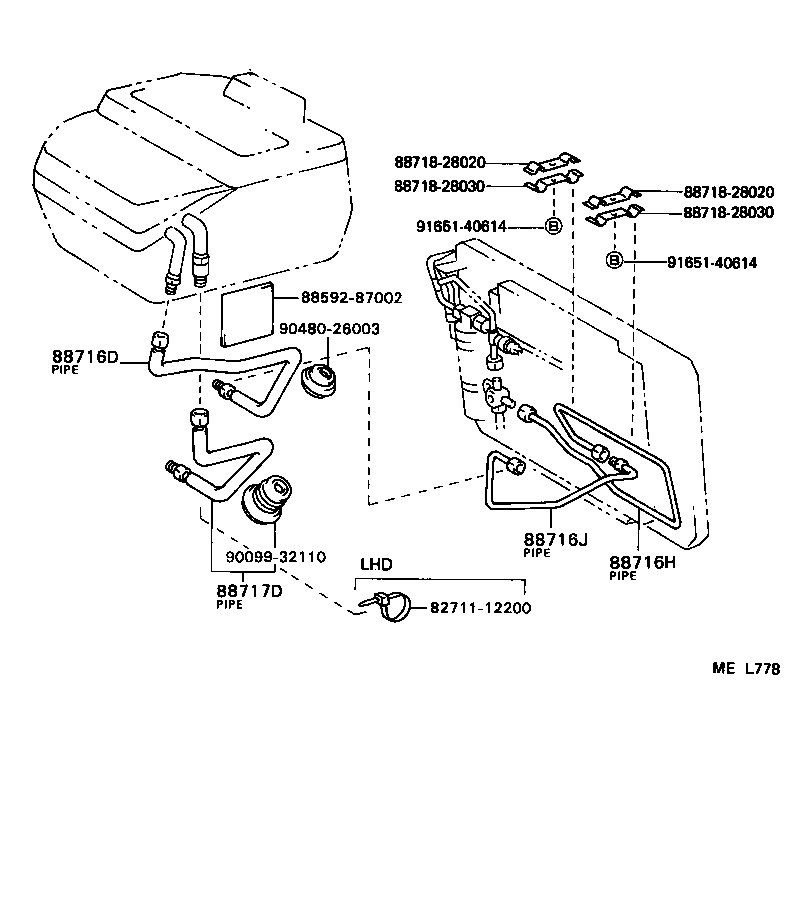

ILLUST NO. 3 OF 3(8808- )YR2#,31
COOL BOX PIPING
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88716D - PIPE, COOLER REFRIGERANT LIQUID, D | ||||
| 88716-28010 |
YR22;YR29..USA |
1 | ||
| 88716H - PIPE, COOLER REFRIGERANT LIQUID, H | ||||
| 88716-28190 |
YR22..CND |
1 | ||
| 88716-28101 |
YR22;YR29..USA W(ICE COOL BOX) |
1 | ||
| 88716-28180 |
YR2#,3# W(FRONT AIR CONDITIONER) |
1 | ||
| 88716J - PIPE, COOLER REFRIGERANT LIQUID, J | ||||
| 88716-28131 |
YR22;YR29..USA |
1 | ||
| 88717D - PIPE, COOLER REFRIGERANT SUCTION, D | ||||
| 88717-28090 |
YR22;YR29..USA |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88592-87002 | ||||
| 88718-28020 | ||||
| 88718-28030 | ||||
| 90099-32110 | ||||
| 90480-26003 | ||||
| 91651-40614 | ||||

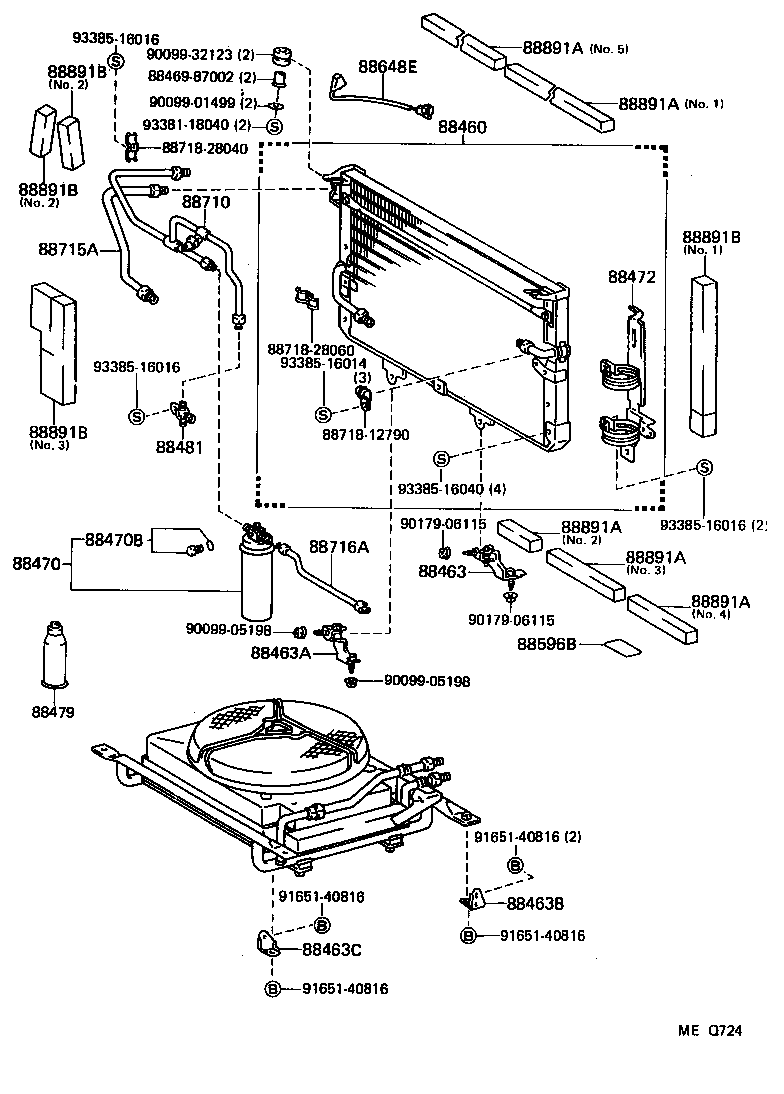

(8808- )YR2#
CONDENSER,DEALER OPTION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88460 - CONDENSER ASSY, COOLER | ||||
| 88460-28020 |
YR22..CND RADIATOR |
1 | ||
| 88460-28011 |
YR22;YR29..USA FLOOR |
1 | ||
| 88460-28011 |
YR22..CND FLOOR |
1 | ||
| 88463 - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 88463-28011 |
YR22..CND |
1 | ||
| 88463A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 88463-28021 |
YR22..CND |
1 | ||
| 88463B - BRACKET, COOLER CONDENSER, NO.3 | ||||
| 88463-87014 |
YR22..CND |
1 | ||
| 88463C - BRACKET, COOLER CONDENSER, NO.4 | ||||
| 88463-87015 |
YR22..CND |
1 | ||
| 88470 - RECEIVER & DRYER ASSY, COOLER | ||||
| 88470-14010 |
YR22..CND |
1 | ||
| 88470B - BOLT, FUSE | ||||
| 88475-12020 |
YR22..CND |
1 | ||
| 88472 - BRACKET, RECEIVER TANK, NO.1 | ||||
| 88472-28010 |
YR2# |
1 | ||
| 88479 - FREON GAS, AIR CONDITIONER (DRUM, COOLER REFRIGERANT) | ||||
| 90986-02001 |
YR2#,3# 400G,400G |
3 | ||
| 90986-02004 |
YR2#,3# 250G,250G |
3 | ||
| 88481 - GLASS, SIGHT | ||||
| 88481-87004 |
YR22..CND |
1 | ||
| 88596B - PLATE, CAUTION, NO.1 | ||||
| 88723-28010 |
YR22,31;YR29..USA W(AIR CONDITIONER) |
1 | ||
| 88648E - WIRING, COOLER | ||||
| 88648-28071 |
YR22..CND |
1 | ||
| 88710 - TUBE ASSY, AIR CONDITIONER | ||||
| 88710-28010 |
YR2# |
1 | ||
| 88716-28160 |
YR2# W(DUAL AIR CON. & RR HEATER) |
1 | ||
| 88715A - PIPE, COOLER REFRIGERANT DISCHARGE, A | ||||
| 88715-28030 |
YR22..CND |
1 | ||
| 88716A - PIPE, COOLER REFRIGERANT LIQUID, A | ||||
| 88716-28150 |
YR22..CND |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891A - PACKING A (FOR COOLER) | ||||
| 88578-28020 |
YR22..CND NO.2 |
1 | ||
| 88578-28030 |
YR22..CND NO.3 |
1 | ||
| 88578-87006 |
YR22..CND NO.5 |
1 | ||
| 88899-95407 |
YR22..CND NO.1 |
1 | ||
| 88578-28040 |
YR22..CND NO.4 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| 88891B - PACKING B (FOR COOLER) | ||||
| 88578-28070 |
YR22..CND NO.3 |
1 | ||
| 88578-28060 |
YR22..CND NO.2 |
2 | ||
| 88578-28090 |
YR22..CND NO.1 |
1 | ||
| Common parts | ||||
| 88469-87002 | ||||
| 88718-12790 | ||||
| 88718-28040 | ||||
| 88718-28060 | ||||
| 90099-01499 | ||||
| 90099-05198 | ||||
| 90099-32123 | ||||
| 90179-06115 | ||||
| 91651-40816 | ||||
| 93381-18040 | ||||
| 93385-16014 | ||||
| 93385-16016 | ||||
| 93385-16040 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
