YR22LG-PQEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

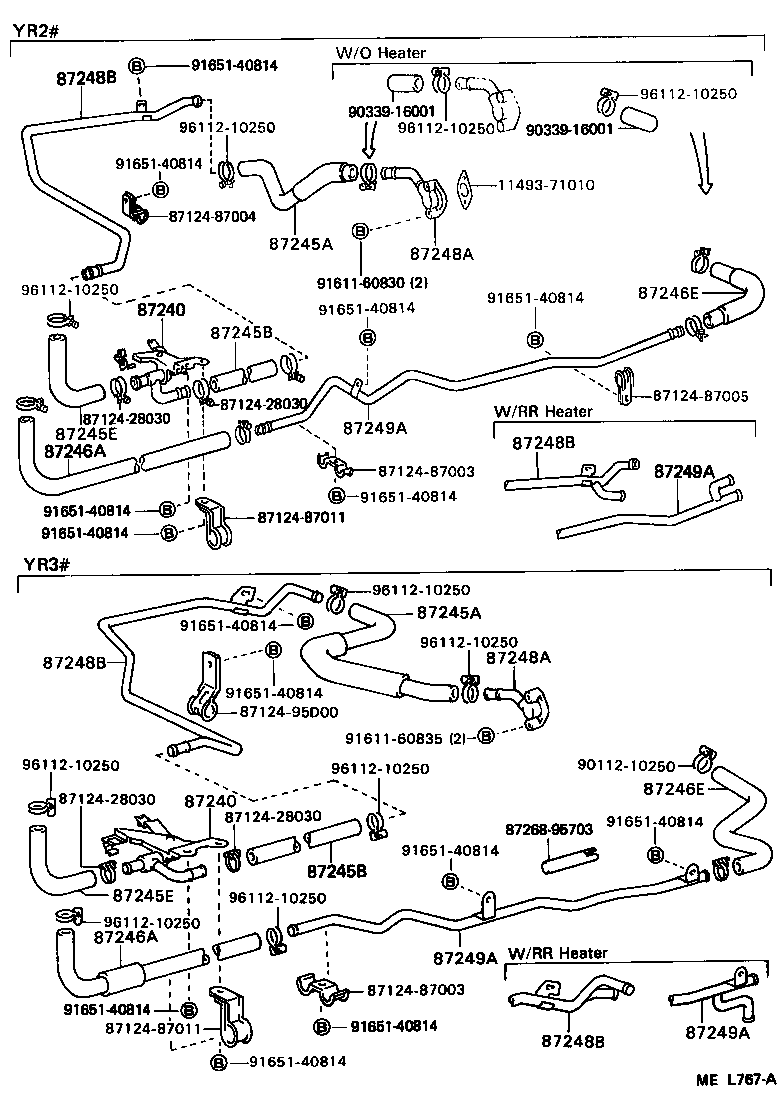

ILLUST NO. 1 OF 2(8808- )
Click highlighted areas on diagram
FRONT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-28030 |
YR2#,3# |
1 | ||
| 87240 - VALVE ASSY, HEATER WATER | ||||
| 87240-28030 |
YR2#,3# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-87014 |
YR2# |
1 | ||
| 87245A - HOSE, HEATER WATER, INLET A | ||||
| 87245-87014 |
YR2# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-28050 |
YR2#,3# |
1 | ||
| 87245B - HOSE, HEATER WATER, INLET B | ||||
| 87245-28050 |
YR2#,3# |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30500 |
YR2#,3# L=500 |
1 | ||
| 87245E - HOSE, HEATER WATER, INLET E | ||||
| 99556-30500 |
YR2#,3# L=500 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
YR2# *H,L=980 |
1 | ||
| 87246A - HOSE, HEATER WATER, OUTLET A | ||||
| 99556-30980 |
YR2# *H,L=980 |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-87016 |
YR2# |
1 | ||
| 87246E - HOSE, HEATER WATER, OUTLET E | ||||
| 87245-87016 |
YR2# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YR2#,3# |
1 | ||
| 87248A - PIPE, HEATER WATER INLET, A | ||||
| 87208-28010 |
YR2#,3# |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-28140 |
YR22..CND |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-28140 |
YR22..CND |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-28140 |
YR22..CND |
1 | ||
| 87248B - PIPE, HEATER WATER INLET, B | ||||
| 87208-28140 |
YR22..CND |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-28150 |
YR22..CND |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-28150 |
YR22..CND |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-28150 |
YR22..CND |
1 | ||
| 87249A - PIPE, HEATER WATER OUTLET, A | ||||
| 87208-28150 |
YR22..CND |
1 | ||
| Common parts | ||||
| 11493-71010 | ||||
| 87124-28030 | ||||
| 87124-87003 | ||||
| 87124-87004 | ||||
| 87124-87005 | ||||
| 87124-87011 | ||||
| 87124-95D00 | ||||
| 87268-95703 | ||||
| 90112-10250 | ||||
| 90339-16001 | ||||
| 91611-60830 | ||||
| 91611-60835 | ||||
| 91651-40814 | ||||
| 96112-10250 | ||||

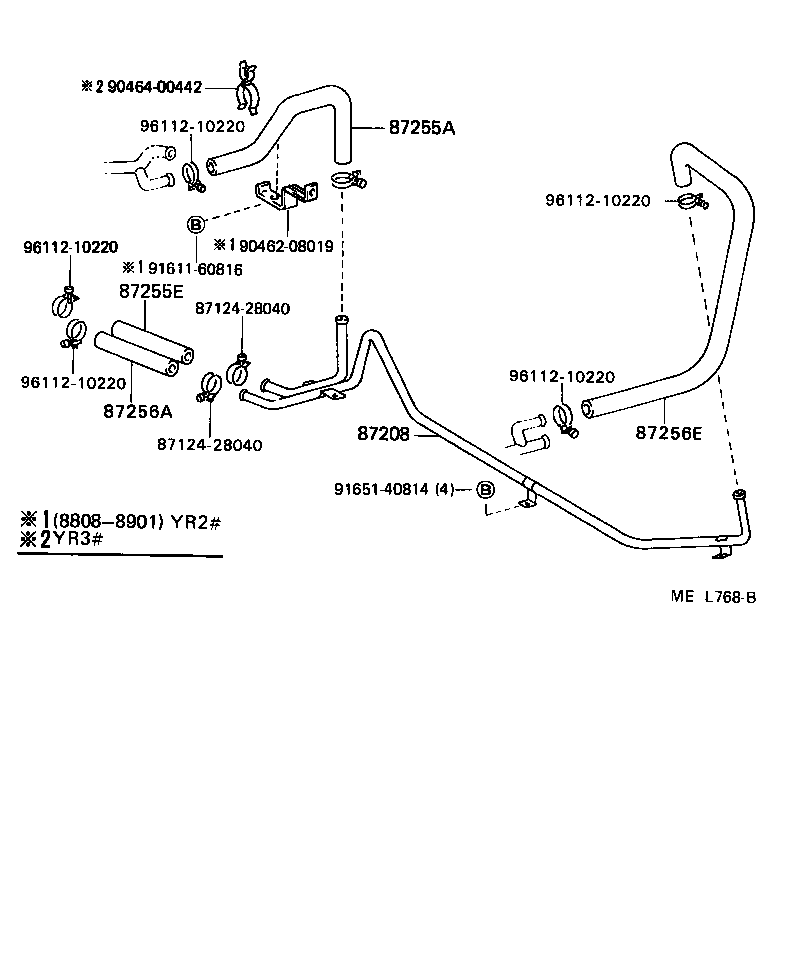

ILLUST NO. 2 OF 2(8808- )
Click highlighted areas on diagram
REAR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-28190 |
YR22..CND |
1 | ||
| 87255A - HOSE, REAR HEATER WATER INLET, A(FROM ENGINE) | ||||
| 99556-20490 |
YR22..CND *H,L=490 |
1 | ||
| 87245-28040 |
YR22..CND L=430 |
1 | ||
| 87255E - HOSE, REAR HEATER WATER INLET, E(TO HEATER UNIT) | ||||
| 87245-87026 |
YR22..CND |
1 | ||
| 87256A - HOSE, REAR HEATER WATER OUTLET, A (FROM HEATER UNIT) | ||||
| 87245-87026 |
YR22..CND |
1 | ||
| 87256E - HOSE, REAR HEATER WATER OUTLET, E (TO ENGINE) | ||||
| 99556-20300 |
YR22..CND L=300 |
1 | ||
| Common parts | ||||
| 87124-28040 | ||||
| 90462-08019 | ||||
| 90464-00442 | ||||
| 91611-60816 | ||||
| 91651-40814 | ||||
| 96112-10220 | ||||
