YR22LG-PQEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

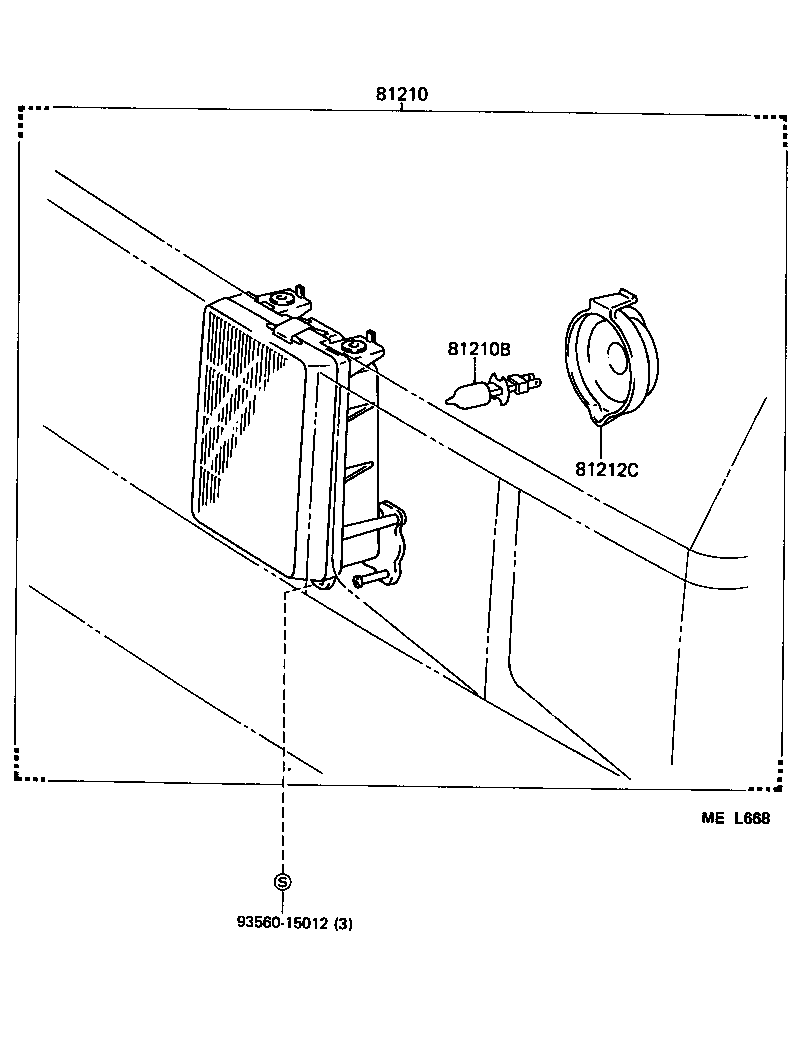

Click highlighted areas on diagram

diagram 81210 81210B 81212C 9356015012
Part # Description Qty Price
81210 - LAMP ASSY, FOG
81210-28010

YR22,31..LE

RH

 1
81220-28010

YR22,31..LE

LH

 1
81210B - BULB, FOG LAMP
90981-13038

YR22,31..LE

12V 35W,HALOGEN

 2
81212C - COVER, FOG LAMP
81212-30030

YR22,31..LE

 2
Common parts
93560-15012
