YR22LG-PQEK (1988)
Toyota Van

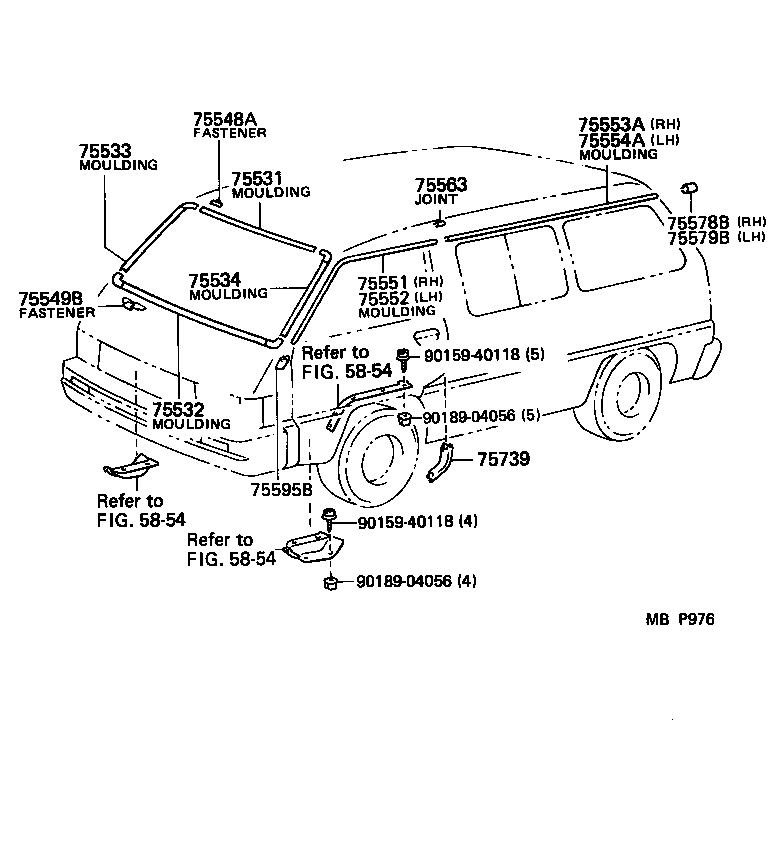

ILLUST NO. 1 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75531 - MOULDING, WINDSHIELD, OUTER UPPER | ||||
| 75531-28010 |
YR2#,3# |
1 | ||
| 75532 - MOULDING, WINDSHIELD, LOWER | ||||
| 75504-28010 |
YR2#,3# |
1 | ||
| 75533 - MOULDING, WINDSHIELD, OUTSIDE RH | ||||
| 76503-28010 |
YR2#,3# |
1 | ||
| 75534 - MOULDING, WINDSHIELD, OUTSIDE LH | ||||
| 76504-28010 |
YR2#,3# |
1 | ||
| 75548A - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.1 | ||||
| 75548-28010 |
YR2#,3# |
14 | ||
| 75549B - FASTENER, WINDSHIELD OUTSIDE MOULDING, NO.2 | ||||
| 75549-28010 |
YR2#,3# |
6 | ||
| 75551 - MOULDING, ROOF DRIP SIDE FINISH, RH | ||||
| 75551-87005 |
YR22,31..LE |
1 | ||
| 75552 - MOULDING, ROOF DRIP SIDE FINISH, LH | ||||
| 75552-87005 |
YR22,31..LE |
1 | ||
| 75553A - MOULDING, ROOF DRIP SIDE FINISH, REAR RH | ||||
| 75553-87005 |
YR22,31..LE |
1 | ||
| 75554A - MOULDING, ROOF DRIP SIDE FINISH, REAR LH | ||||
| 75554-87005 |
YR22,31..LE |
1 | ||
| 75563 - RETAINER, ROOF DRIP SIDE FINISH MOULDING, NO.1 | ||||
| 75563-87001 |
YR22,31..LE RH |
1 | ||
| 75563-87002 |
YR22,31..LE LH |
1 | ||
| 75739 - MOULDING, DOOR EDGE PROTECTION | ||||
| 75739-30030 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90159-40118 | ||||
| 90189-04056 | ||||
| Linked diagrams | ||||
| 5854 | ||||

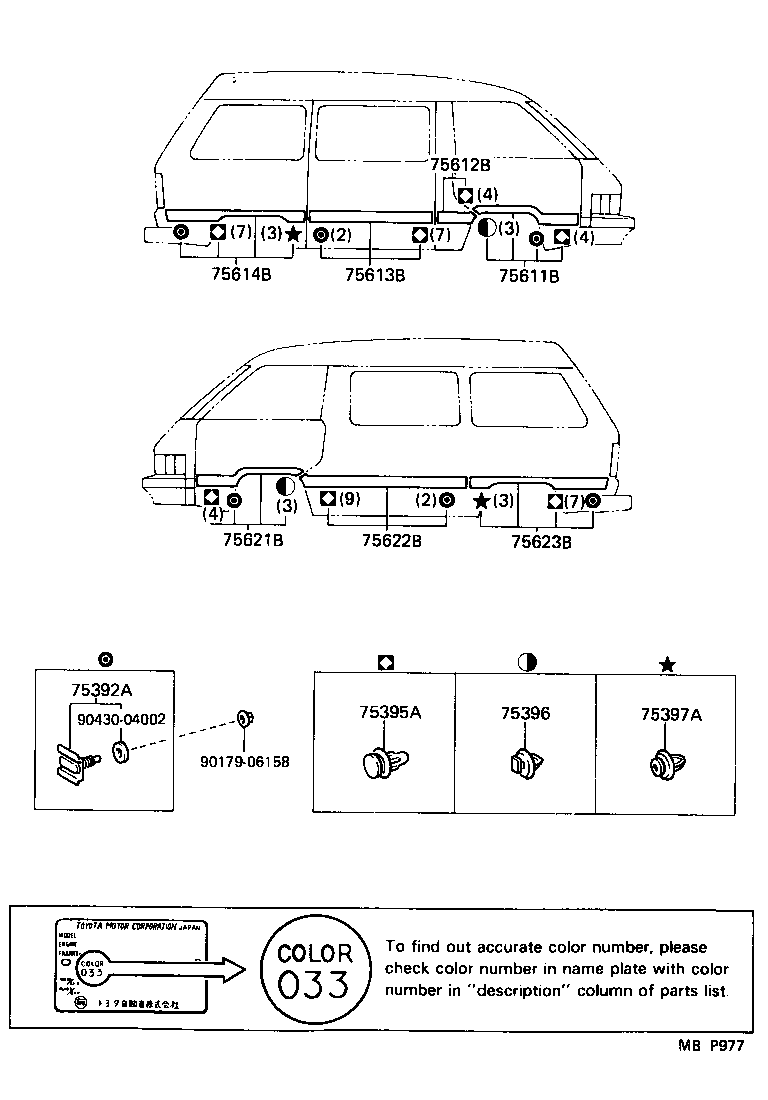

ILLUST NO. 2 OF 2(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 75392A - RETAINER, OUTSIDE MOULDING, NO.1 | ||||
| 75392-87001 |
YR22,31..LE |
8 | ||
| 75395A - CLIP, OUTSIDE MOULDING, NO.1 | ||||
| 47749-87001 |
YR22,31..LE |
42 | ||
| 75396 - CLIP, OUTSIDE MOULDING, NO.2 | ||||
| 76519-87001 |
YR22,31..LE |
6 | ||
| 75397A - CLIP, OUTSIDE MOULDING, NO.3 | ||||
| 75498-87001 |
YR22,31..LE |
6 | ||
| 75611B - MOULDING, SIDE PANEL, NO.1 RH | ||||
| 75071-8700243 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 75071-8700244 |
YR22,31..LE BLUE METALLIC,8D7 |
1 | ||
| 75071-8700236 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 75071-8700222 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 75071-8700246 |
YR22,31..LE LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75071-8700203 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 75071-8700254 |
YR22,31..LE LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75071-8700256 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| 75071-8700228 |
YR22,31..LE WHITE,045 |
1 | ||
| 75612B - MOULDING, SIDE PANEL, NO.2 RH | ||||
| 76055-2801008 |
YR22,31..LE WHITE,045 |
1 | ||
| 76055-2801034 |
YR22,31..LE BLUE M.,8D7 |
1 | ||
| 76055-2801003 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 76055-2801023 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 76055-2801046 |
YR22,31..LE LT. REDDISH BROWN M.,4K7 |
1 | ||
| 76055-2801036 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 76055-2801044 |
YR22,31..LE LIGHT BLUE M.,8D8 |
1 | ||
| 76055-2801012 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 76055-2801056 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| 75613B - MOULDING, SIDE PANEL, NO.3 RH | ||||
| 75705-8700222 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 75705-8700246 |
YR22,31..LE L. REDDISH BROWN M.,4K7 |
1 | ||
| 75705-8700244 |
YR22,31..LE BLUE METALLIC,8D7 |
1 | ||
| 75705-8700203 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 75705-8700254 |
YR22,31..LE LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75705-8700243 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 75705-8700259 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| 75705-8700256 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 75705-8700228 |
YR22,31..LE WHITE,045 |
1 | ||
| 75614B - MOULDING, SIDE PANEL, NO.4 RH | ||||
| 75065-8700246 |
YR22,31..LE L. REDDISH BROWN M.,4K7 |
1 | ||
| 75065-8700222 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 75065-8700228 |
YR22,31..LE WHITE,045 |
1 | ||
| 75065-8700203 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 75065-8700244 |
YR22,31..LE BLUE METALLIC,8D7 |
1 | ||
| 75065-8700259 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| 75065-8700256 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 75065-8700243 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 75065-8700254 |
YR22,31..LE LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75621B - MOULDING, SIDE PANEL, NO.1 LH | ||||
| 75072-8700228 |
YR22,31..LE WHITE,045 |
1 | ||
| 75072-8700203 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 75072-8700236 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 75072-8700243 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 75072-8700244 |
YR22,31..LE BLUE METALLIC,8D7 |
1 | ||
| 75072-8700222 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 75072-8700246 |
YR22,31..LE LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75072-8700256 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| 75072-8700254 |
YR22,31..LE LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75622B - MOULDING, SIDE PANEL, NO.2 LH | ||||
| 76606-2801036 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 76606-2801023 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 76606-2801008 |
YR22,31..LE WHITE,045 |
1 | ||
| 76606-2801012 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 76606-2801054 |
YR22,31..LE LIGHT BLUE M.,8D8 |
1 | ||
| 76606-2801003 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 76606-2801056 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| 76606-2801044 |
YR22,31..LE BLUE M.,8D7 |
1 | ||
| 76606-2801046 |
YR22,31..LE LT. REDDISH BROWN M.,4K7 |
1 | ||
| 75623B - MOULDING, SIDE PANEL, NO.3 LH | ||||
| 75066-8700203 |
YR22,31..LE SILVER METALLIC,148 |
1 | ||
| 75066-8700228 |
YR22,31..LE WHITE,045 |
1 | ||
| 75066-8700246 |
YR22,31..LE L. REDDISH BROWN M.,4K7 |
1 | ||
| 75066-8700243 |
YR22,31..LE GRAY M.,168 ,20L |
1 | ||
| 75066-8700256 |
YR22,31..LE DR. BROWN M.,22L ,4K5 |
1 | ||
| 75066-8700254 |
YR22,31..LE LIGHT BLUE METALLIC,8D8 |
1 | ||
| 75066-8700222 |
YR22,31..LE RED MICA,3H4 |
1 | ||
| 75066-8700244 |
YR22,31..LE BLUE METALLIC,8D7 |
1 | ||
| 75066-8700259 |
YR22,31..LE LT. BROWN M.,4J6 |
1 | ||
| Common parts | ||||
| 90179-06158 | ||||
| 90430-04002 | ||||
