YR22LG-PQEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

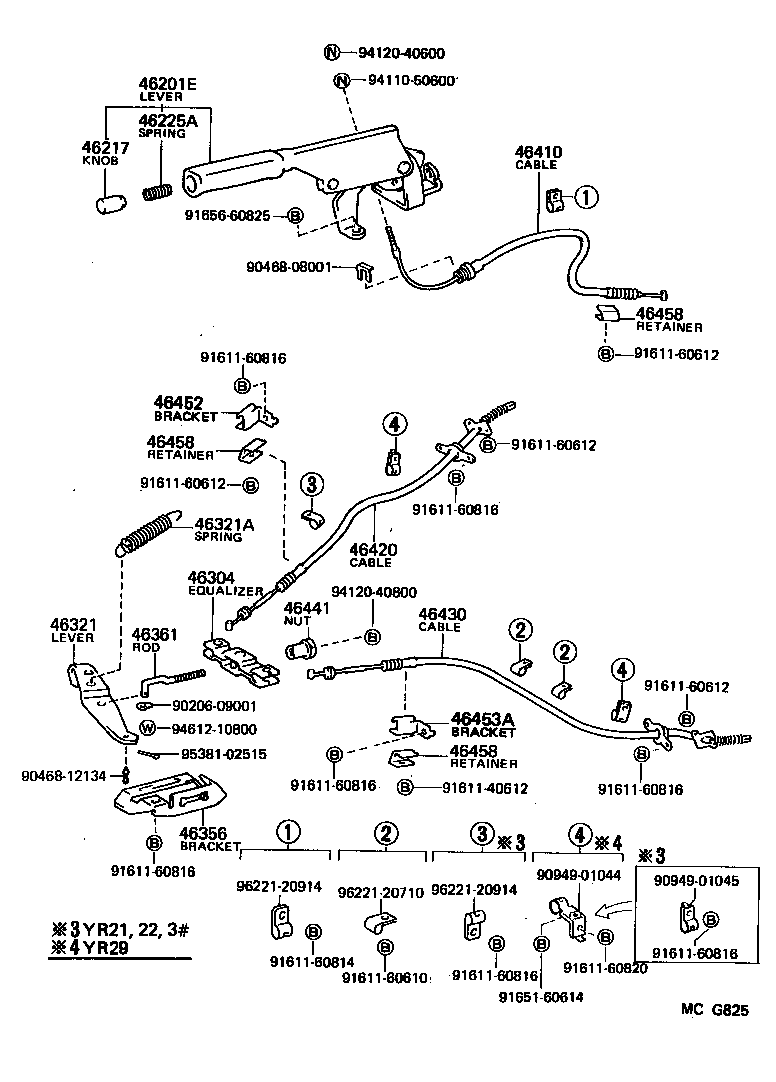

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 46201E - LEVER SUB-ASSY, PARKING BRAKE | ||||
| 46201-2804203 |
YR22,31 SHADOW GRAY,TRIM1# |
1 | ||
| 46201-2804204 |
YR22,31 BLUE,TRIM8# |
1 | ||
| 46201-2804206 |
YR22,31 BROWN,TRIM4# |
1 | ||
| 46217 - KNOB, PARKING BRAKE RELEASE ROD | ||||
| 46217-1202004 |
YR2#,3# DEEP BLUE,TRIM8# |
1 | ||
| 46217-1202003 |
YR2#,3# SHADOW GRAY,TRIM1# |
1 | ||
| 46217-1202006 |
YR2#,3# BROWN,TRIM4# |
1 | ||
| 46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD) | ||||
| 90501-10132 |
YR2#,3# |
1 | ||
| 90501-10069 |
YR2#,3# |
1 | ||
| 46304 - EQUALIZER SUB-ASSY, PARKING BRAKE | ||||
| 46304-22020 |
YR2#,3# |
1 | ||
| 46321 - LEVER, PARKING BRAKE INTERMEDIATE | ||||
| 46321-28042 |
YR2#,3# |
1 | ||
| 46321A - SPRING, TENSIION(FOR PARKING BRAKE INTERMEDIATE LEVER) | ||||
| 90506-11006 |
YR2#,3# |
1 | ||
| 46356 - BRACKET, EQUALIZER SUPPORT | ||||
| 46356-28030 |
YR2#,3# |
1 | ||
| 46361 - ROD, PARKING BRAKE PULL | ||||
| 46361-28031 |
YR2#,3# |
1 | ||
| 46410 - CABLE ASSY, PARKING BRAKE, NO.1 | ||||
| 46410-28073 |
YR2#,3# |
1 | ||
| 46420 - CABLE ASSY, PARKING BRAKE, NO.2 | ||||
| 46420-28111 |
YR22 |
1 | ||
| 46430 - CABLE ASSY, PARKING BRAKE, NO.3 | ||||
| 46430-28113 |
YR22 |
1 | ||
| 46441 - NUT, WIRE ADJUSTING, NO.1 | ||||
| 46441-35010 |
YR2#,3# |
1 | ||
| 46452 - BRACKET, PARKING BRAKE CABLE SUPPORT, NO.2 | ||||
| 46452-28060 |
YR2#,3# |
1 | ||
| 46453A - BRACKET, CABLE SUPPORT, NO.3 | ||||
| 46453-28010 |
YR2#,3# |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YR2#,3# RR CABLE |
2 | ||
| 46458-28010 |
YR2#,3# FR CABLE |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YR2#,3# RR CABLE |
2 | ||
| 46458-28010 |
YR2#,3# FR CABLE |
1 | ||
| 46458 - RETAINER, CABLE | ||||
| 46458-28010 |
YR2#,3# RR CABLE |
2 | ||
| 46458-28010 |
YR2#,3# FR CABLE |
1 | ||
| Common parts | ||||
| 90206-09001 | ||||
| 90468-08001 | ||||
| 90468-12134 | ||||
| 90949-01044 | ||||
| 90949-01045 | ||||
| 91611-40612 | ||||
| 91611-60610 | ||||
| 91611-60612 | ||||
| 91611-60814 | ||||
| 91611-60816 | ||||
| 91611-60820 | ||||
| 91651-60614 | ||||
| 91656-60825 | ||||
| 94110-50600 | ||||
| 94120-40600 | ||||
| 94120-40800 | ||||
| 94612-10800 | ||||
| 95381-02515 | ||||
| 96221-20710 | ||||
| 96221-20914 | ||||
