YR22LG-PQEK (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

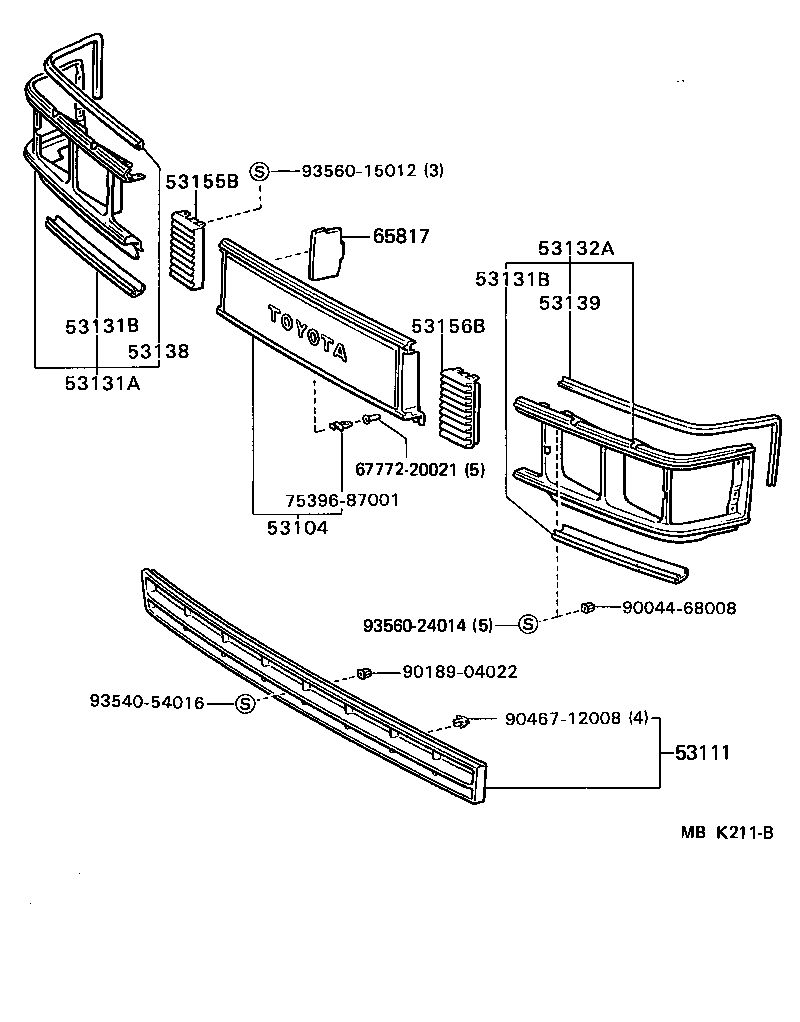

Click highlighted areas on diagram

diagram 53104 53111 53131A 53131B 53131B 53132A 53138 53139 53155B 53156B 65817 6777220021 7539687001 9004468008 9018904022 9046712008 9354054016 9356015012 9356024014
Part # Description Qty Price
53104 - GARNISH SUB-ASSY, FRONT PANEL, CENTER
53101-87012

YR22,31..LE

 1
53111 - GRILLE, RADIATOR
53111-29195

YR2#

 1
53111-2802003

YR22,31..LE

GRAY & BLACK,GRAY/BLACK

 1
53131A - DOOR, HEADLAMP, RH
53031-87028

YR22,31..LE

 1
53131B - WEATHERSTRIP, HEADLAMP ORNAMENT
53147-87004

YR2#,3#

 2
53147-87003

YR2#

 2
53131B - WEATHERSTRIP, HEADLAMP ORNAMENT
53147-87004

YR2#,3#

 2
53147-87003

YR2#

 2
53132A - DOOR, HEADLAMP, LH
53032-87027

YR22,31..LE

 1
53138 - PROTECTOR, HEADLAMP DOOR, RH
53139-87004

YR2#

 1
53145-87003

YR2#,3#

 1
53139 - PROTECTOR, HEADLAMP DOOR, LH
53139-87004

YR2#

 1
53146-87005

YR2#,3#

 1
53155B - BEZEL, HEADLAMP, OUTER RH
53155-87001

YR22,31

 1
53156B - BEZEL, HEADLAMP, OUTER LH
53156-87001

YR22,31

 1
65817 - PAD, COVER TOP PANEL END
65817-28010

YR2#,3#

 1
Common parts
67772-20021
75396-87001
90044-68008
90189-04022
90467-12008
93540-54016
93560-15012
93560-24014
