YR22LG-PDEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8808- )

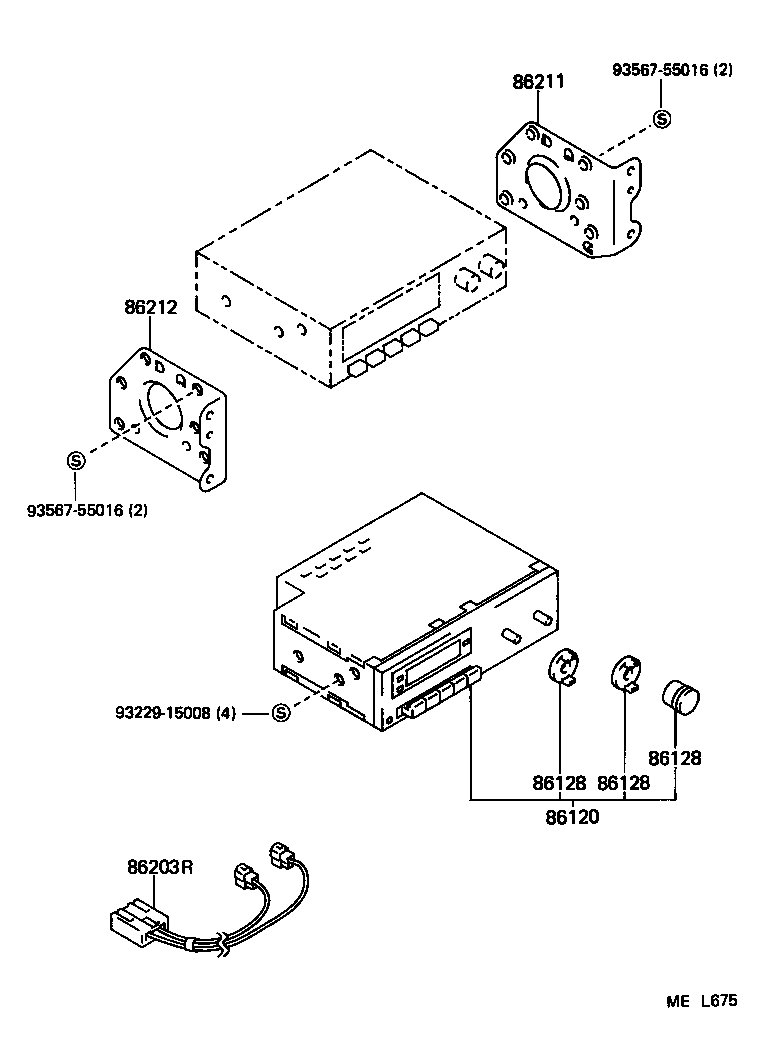

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120 - RECEIVER ASSY, RADIO | ||||
| 86120-28040 |
YR22,31..CND;YR22,31..DLX..USA AM/FM MPX ETR 1DIN 5-SPEAKERS(OPT) |
1 | ||
| 86120-28050 |
YR22,31 AM/FM MPX ETR CASSETTE 2DIN 5-SPEAKERS(OPT) |
1 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
YR22,31..CND;YR22,31..DLX..USA W(AM/FM MPX ETR 1-DIN 5SP RADIO),PWR/VOL |
1 | ||
| 86128-28160 |
YR22,31..CND;YR22,31..DLX..USA BAL/FADE,BASS/TREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
YR22,31..CND;YR22,31..DLX..USA W(AM/FM MPX ETR 1-DIN 5SP RADIO),PWR/VOL |
1 | ||
| 86128-28160 |
YR22,31..CND;YR22,31..DLX..USA BAL/FADE,BASS/TREB |
2 | ||
| 86128 - KNOB, RADIO RECEIVER | ||||
| 86128-28140 |
YR22,31..CND;YR22,31..DLX..USA W(AM/FM MPX ETR 1-DIN 5SP RADIO),PWR/VOL |
1 | ||
| 86128-28160 |
YR22,31..CND;YR22,31..DLX..USA BAL/FADE,BASS/TREB |
2 | ||
| 86203R - WIRE SUB-ASSY, RR | ||||
| 86205-28010 |
YR2#,3# |
1 | ||
| 86211 - BRACKET, RADIO, NO.1 | ||||
| 86211-28010 |
YR2#,3# |
1 | ||
| 86212 - BRACKET, RADIO, NO.2 | ||||
| 86212-28010 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 93229-15008 | ||||
| 93567-55016 | ||||

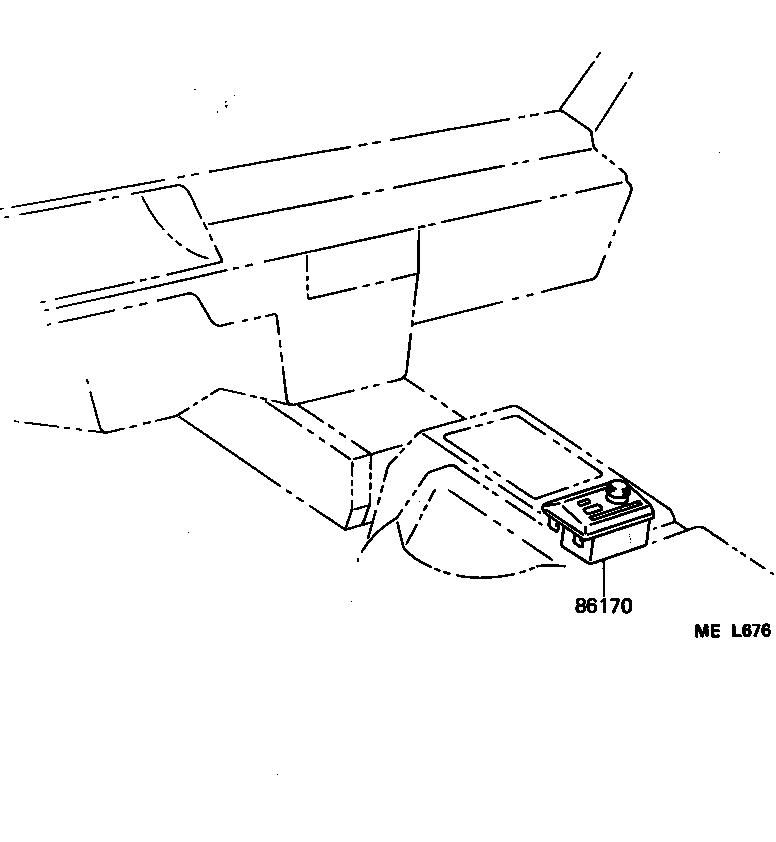

(8808- )
