YR22LG-PDEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

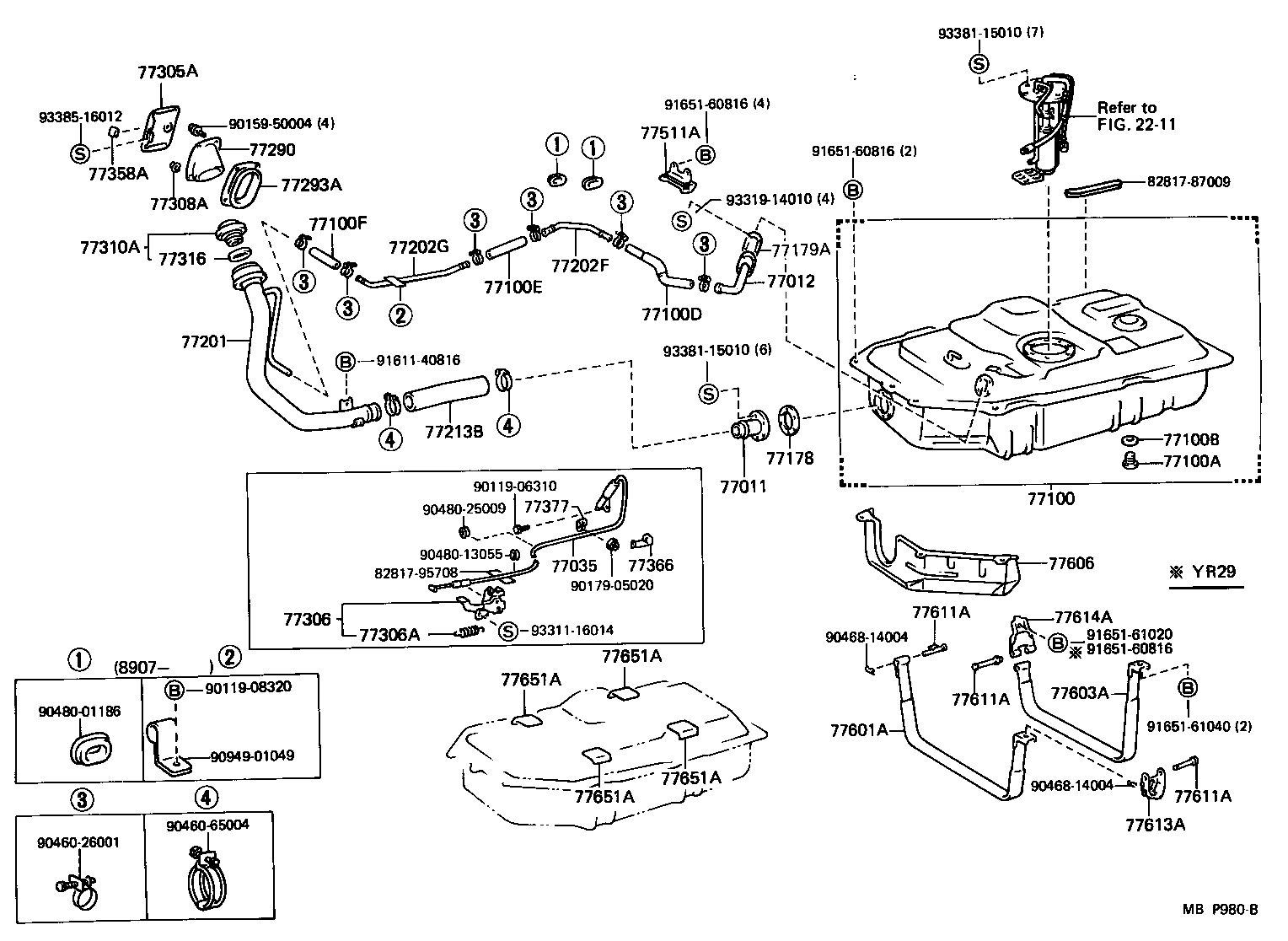

ILLUST NO. 1 OF 2(8808- )YR2#

Click highlighted areas on diagram

diagram 2211 77011 77012 77035 77100 77100A 77100B 77100D 77100E 77100F 77178 77179A 77201 77202F 77202G 77213B 77290 77293A 77305A 77306 77306A 77308A 77310A 77316 77358A 77366 77377 77511A 77601A 77603A 77606 77611A 77611A 77611A 77613A 77614A 77651A 77651A 77651A 77651A 8281787009 8281795708 9011906310 9011908320 9015950004 9017905020 9046026001 9046065004 9046814004 9046814004 9048001186 9048013055 9048025009 9094901049 9161140816 9165160816 9165160816 9165160816 9165161020 9165161040 9331116014 9331914010 9338115010 9338115010 9338516012
Part # Description Qty Price
77011 - PIPE SUB-ASSY, FUEL TANK FILLER, LOWER
77011-13010

YR2#,3#

 1
77012 - TUBE SUB-ASSY, FUEL TANK BREATHER
77012-28020

YR2#,3#

 1
77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL
77035-28010

YR2#,3#

 1
77100 - TANK ASSY, FUEL
77001-28270

YR2#

 1
77100A - PLUG(FOR FUEL TANK)
90105-12116

YR2#,3#

 1
77100B - GASKET(FOR FUEL TANK)
90430-12245

YR2#,3#

 1
77100D - HOSE, FUEL, NO.1(FOR FUEL TANK)
77259-28030

YR2#,3#

L=290

 1
77100E - HOSE, FUEL, NO.2(FOR FUEL TANK)
90445-24010

YR2#,3#

L=130

 1
77100F - HOSE, FUEL, NO.3(FOR FUEL TANK)
90445-24029

YR2#,3#

 1
77178 - GASKET, FUEL TANK FILLER PIPE, LOWER
77178-13020

YR2#,3#

 1
77179A - GASKET, FUEL TANK BREATHER TUBE
77179-14030

YR2#,3#

 1
77201 - PIPE SUB-ASSY, FUEL TANK INLET
77201-28070

YR2#,3#

 1
77202F - TUBE, FUEL, NO.1 (FOR BREATHER TUBE)
77222-28030

YR2#,3#

 1
77202G - TUBE, FUEL, NO.2 (FOR BREATHER TUBE)
77014-28010

YR2#,3#

 1
77223-28040

YR2#,3#

 1
77223-28030

YR2#,3#

 1
77213B - HOSE, FUEL TANK TO FILLER PIPE
77019-28011

YR2#,3#

 1
77290 - SHIELD ASSY, FUEL TANK FILLER PIPE
77290-28010

YR2#,3#

 1
77293A - SHIELD, FUEL TANK FILLER PIPE, NO.3
77293-28010

YR2#,3#

 1
77305A - LID SUB-ASSY, FUEL FILLER OPENING
77305-87006

YR2#,3#

 1
77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN
77306-28010

YR2#,3#

 1
77306A - SPRING, FUEL LID OPEN LEVER
90506-09004

YR2#,3#

 1
77308A - CUSHION(FOR FUEL INLET BOX COVER)
90541-06001

YR2#,3#

 2
77310A - CAP ASSY, FUEL TANK
77310-12140

YR2#,3#

 1
77316 - GASKET, FUEL TANK CAP
77316-16010

YR2#,3#

 1
77358A - STOPPER, FUEL FILLER OPENING LID
77358-87002

YR2#,3#

 1
77358-87001

YR2#,3#

 1
77366 - SPRING, FUEL FILLER OPENING LID HINGE
77366-87001

YR2#,3#

 1
77377 - RETAINER, FUEL FILLER OPENING LID LOCK
77377-28010

YR2#,3#

 1
77511A - BRACKET, FUEL TANK
77511-28050

YR2#

 1
77601A - BAND SUB-ASSY, FUEL TANK, NO.1
77601-28040

YR2#

 1
77603A - BAND SUB-ASSY, FUEL TANK, NO.2
77603-28050

YR2#

 1
77606 - PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77606-28020

YR2#

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

YR2#

RR-RH

 1
90240-08047

YR2#

FR-LH

 1
90240-08020

YR2#

FR-RH

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

YR2#

RR-RH

 1
90240-08047

YR2#

FR-LH

 1
90240-08020

YR2#

FR-RH

 1
77611A - PIN (FOR FUEL TANK BAND)
77653-28010

YR2#

RR-RH

 1
90240-08047

YR2#

FR-LH

 1
90240-08020

YR2#

FR-RH

 1
77613A - BRACKET, FUEL TANK BAND, NO.1
77613-28040

YR2#

 1
77614A - BAND, FUEL TANK, NO.2 RH
77614-28010

YR22,3#

 1
77651A - CUSHION, FUEL TANK, NO.1
77651-28020

YR2#,3#

70 X 110

 2
77651-28010

YR2#,3#

70 X 70

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-28020

YR2#,3#

70 X 110

 2
77651-28010

YR2#,3#

70 X 70

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-28020

YR2#,3#

70 X 110

 2
77651-28010

YR2#,3#

70 X 70

 2
77651A - CUSHION, FUEL TANK, NO.1
77651-28020

YR2#,3#

70 X 110

 2
77651-28010

YR2#,3#

70 X 70

 2
Common parts
82817-87009
82817-95708
90119-06310
90119-08320
90159-50004
90179-05020
90460-26001
90460-65004
90468-14004
90480-01186
90480-13055
90480-25009
90949-01049
91611-40816
91651-60816
91651-61020
91651-61040
93311-16014
93319-14010
93381-15010
93385-16012
Linked diagrams
2211

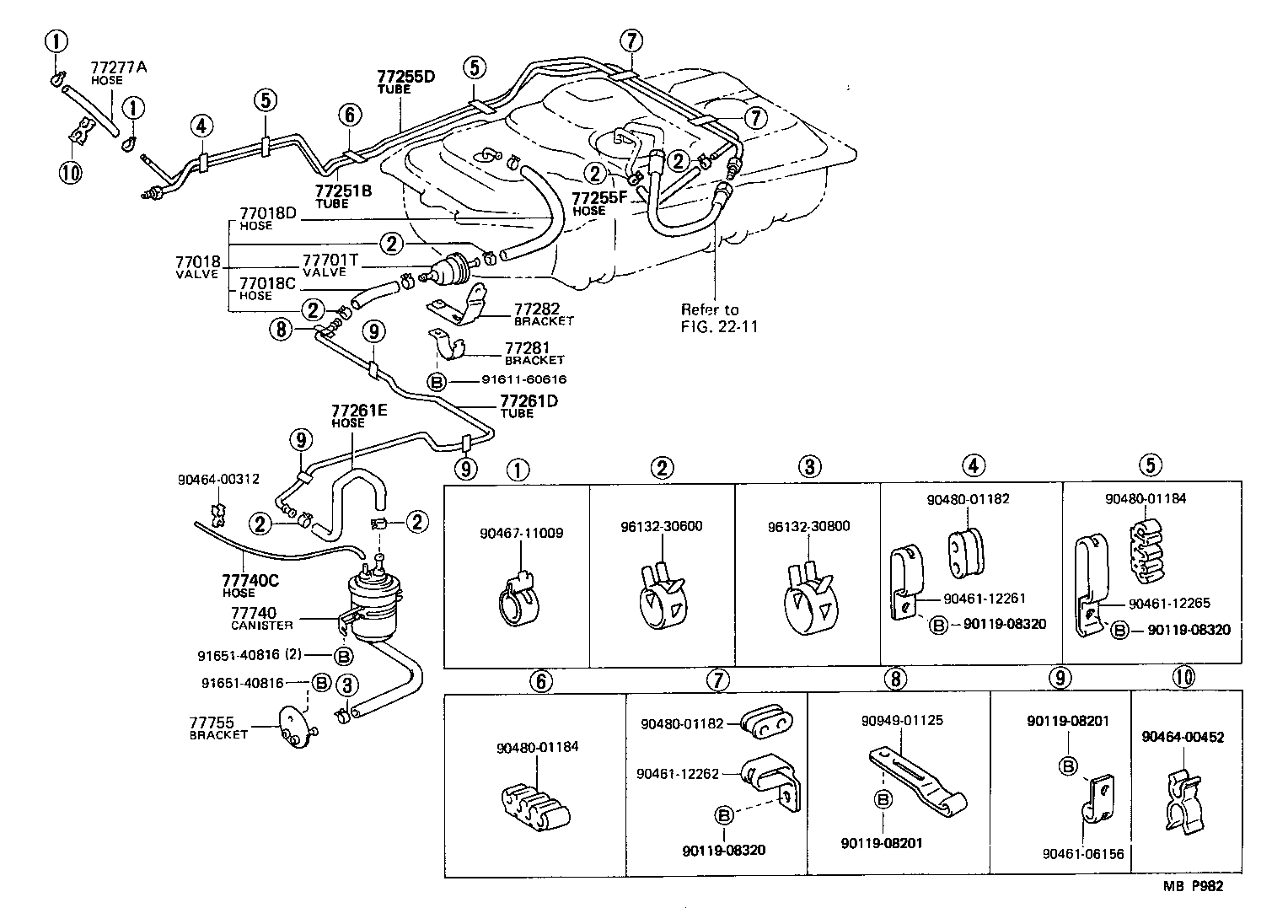

ILLUST NO. 2 OF 2(8808- )

Click highlighted areas on diagram

diagram 2211 77018 77018C 77018D 77251B 77255D 77255F 77261D 77261E 77277A 77281 77282 77701T 77740 77740C 77755 9011908201 9011908201 9011908320 9011908320 9011908320 9046106156 9046112261 9046112262 9046112265 9046400312 9046400452 9046711009 9048001182 9048001182 9048001184 9048001184 9094901125 9161160616 9165140816 9165140816 9613230600 9613230800
Part # Description Qty Price
77018 - VALVE SUB-ASSY, FUEL VAPOUR SEPARATE
77018-28030

YR2#,3#

 1
77018C - HOSE, FUEL NO.1 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
95333-06010

YR2#,3#

*H,L=100

 1
77018D - HOSE, FUEL NO.2 (FOR FUEL LIQUID VAPOUR SEPARATE VALVE)
90445-12136

YR2#,3#

 1
77251B - TUBE, FUEL MAIN
77251-28050

YR2#

 1
77255D - TUBE, FUEL RETURN
77255-28031

YR2#,3#

 1
77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE)
95333-06020

YR2#,3#

*H,L=200

 1
77261D - TUBE, FUEL TANK TO CANISTER
77263-28060

YR2#,3#

 1
77261E - HOSE, FUEL, NO.1 (FOR FUEL TANK TO CANISTER TUBE)
77249-28030

YR2#,3#

 1
77277A - HOSE, FUEL, NO.1(FOR RETURN TUBE, NO.1)
23271-73030

YR2#,3#

*H,L=500

 1
77281 - BRACKET, FUEL MAIN TUBE, NO.1
77281-28010

YR2#,3#

 1
77282 - BRACKET, FUEL MAIN TUBE, NO.2
77282-28020

YR2#

 1
77701T - VALVE, CHECK (FOR MAIN FUEL TANK)
90917-10020

YR2#,3#

 1
77740 - CANISTER ASSY, CHARCOAL
77740-28100

YR2#,3#

 1
77740C - HOSE, FUEL, NO.3(FOR CHARCOAL CANISTER)
90999-92004

YR2#,3#

L=950

 1
77755 - BRACKET, CHARCOAL CANISTER OUTLET HOSE
77755-28021

YR2#

 1
Common parts
90119-08201
90119-08320
90461-06156
90461-12261
90461-12262
90461-12265
90464-00312
90464-00452
90467-11009
90480-01182
90480-01184
90949-01125
91611-60616
91651-40816
96132-30600
96132-30800
Linked diagrams
2211
