YR22LG-PDEK (1988)
Toyota Van
Production
Aug 1988
-
Jan 1990
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)

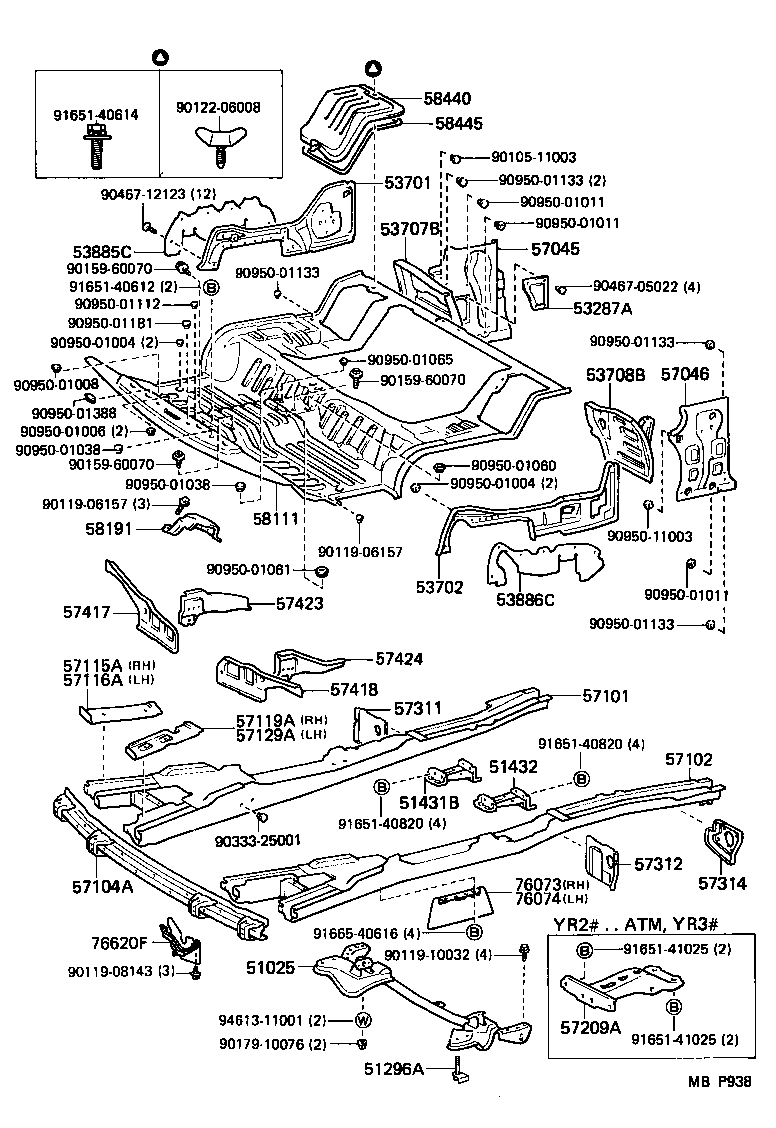

ILLUST NO. 1 OF 3(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51025 - MEMBER SUB-ASSY, ENGINE FRONT MOUNTING | ||||
| 51025-28040 |
YR2#..CND |
1 | ||
| 51296A - BOLT, ENGINE FRONT SUPPORT MEMBER | ||||
| 51296-87001 |
YR2# RH |
2 | ||
| 51296-87002 |
YR2# LH |
2 | ||
| 53287A - COVER, COOLER PIPE HOLE | ||||
| 53287-87001 |
YR2#,3# |
1 | ||
| 53701 - APRON SUB-ASSY, FRONT FENDER, RH | ||||
| 53701-28011 |
YR2#,3# |
1 | ||
| 53702 - APRON SUB-ASSY, FRONT FENDER, LH | ||||
| 53702-87013 |
YR2#,3# |
1 | ||
| 53707B - APRON SUB-ASSY, FENDER SIDE, RH | ||||
| 53707-87011 |
YR2#,3# |
1 | ||
| 53708B - APRON SUB-ASSY, FENDER SIDE, LH | ||||
| 53708-28011 |
YR2#,3# |
1 | ||
| 53885C - SEAL, FENDER APRON MUDGUARD, RH | ||||
| 53885-87004 |
YR2# |
1 | ||
| 53886C - SEAL, FENDER APRON MUDGUARD, LH | ||||
| 53886-87002 |
YR2# |
1 | ||
| 57045 - PLATE SUB-ASSY, FLOOR SIDE RAIL, RH | ||||
| 57045-28020 |
YR2#,3# |
1 | ||
| 57046 - PLATE SUB-ASSY, FLOOR SIDE RAIL, LH | ||||
| 57046-28020 |
YR2#,3# |
1 | ||
| 57101 - MEMBER SUB-ASSY, FRONT SIDE, RH | ||||
| 57101-28050 |
YR2# |
1 | ||
| 57102 - MEMBER SUB-ASSY, FRONT SIDE, LH | ||||
| 57102-28060 |
YR2# |
1 | ||
| 57104A - MEMBER SUB-ASSY, FRONT CROSS | ||||
| 57104-28070 |
YR2#,3# |
1 | ||
| 57115A - PLATE, FRONT SIDE MEMBER, OUTER RH | ||||
| 57115-28020 |
YR2#,3# |
1 | ||
| 57116A - PLATE, FRONT SIDE MEMBER, OUTER LH | ||||
| 57116-28020 |
YR2#,3# |
1 | ||
| 57119A - PLATE, FRONT SIDE MEMBER, FRONT RH | ||||
| 57119-28020 |
YR2#,3# |
1 | ||
| 57129A - PLATE, FRONT SIDE MEMBER, FRONT LH | ||||
| 57129-28020 |
YR2#,3# |
1 | ||
| 57209A - MEMBER SUB-ASSY, ENGINE REAR MOUNTING | ||||
| 57255-87005 |
YR2#..4FC |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-28010 |
YR2#,3# |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-28010 |
YR2#,3# |
1 | ||
| 57423 - BRACKET, FRONT FLOOR REINFORCEMENT, RH | ||||
| 57423-28010 |
YR2#,3# |
1 | ||
| 57424 - BRACKET, FRONT FLOOR REINFORCEMENT, LH | ||||
| 57424-28010 |
YR2#,3# |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-28150 |
YR22,31..DLX;YR29,32..USA |
1 | ||
| 58111-28160 |
YR22,31..DLX;YR29,32..USA W(FOOT REST) |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58190-28010 |
YR2#,3#..DLX,STD |
1 | ||
| 58440 - COVER ASSY, BATTERY SERVICE HOLE | ||||
| 58207-87002 |
YR2#,3# |
1 | ||
| 58445 - PACKING, BATTERY SERVICE HOLE COVER | ||||
| 58459-87001 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90105-11003 | ||||
| 90119-06157 | ||||
| 90119-08143 | ||||
| 90119-10032 | ||||
| 90122-06008 | ||||
| 90159-60070 | ||||
| 90179-10076 | ||||
| 90333-25001 | ||||
| 90467-05022 | ||||
| 90467-12123 | ||||
| 90950-01004 | ||||
| 90950-01006 | ||||
| 90950-01008 | ||||
| 90950-01011 | ||||
| 90950-01038 | ||||
| 90950-01060 | ||||
| 90950-01061 | ||||
| 90950-01065 | ||||
| 90950-01112 | ||||
| 90950-01133 | ||||
| 90950-01181 | ||||
| 90950-01388 | ||||
| 90950-11003 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40820 | ||||
| 91651-41025 | ||||
| 91665-40616 | ||||
| 94613-11001 | ||||

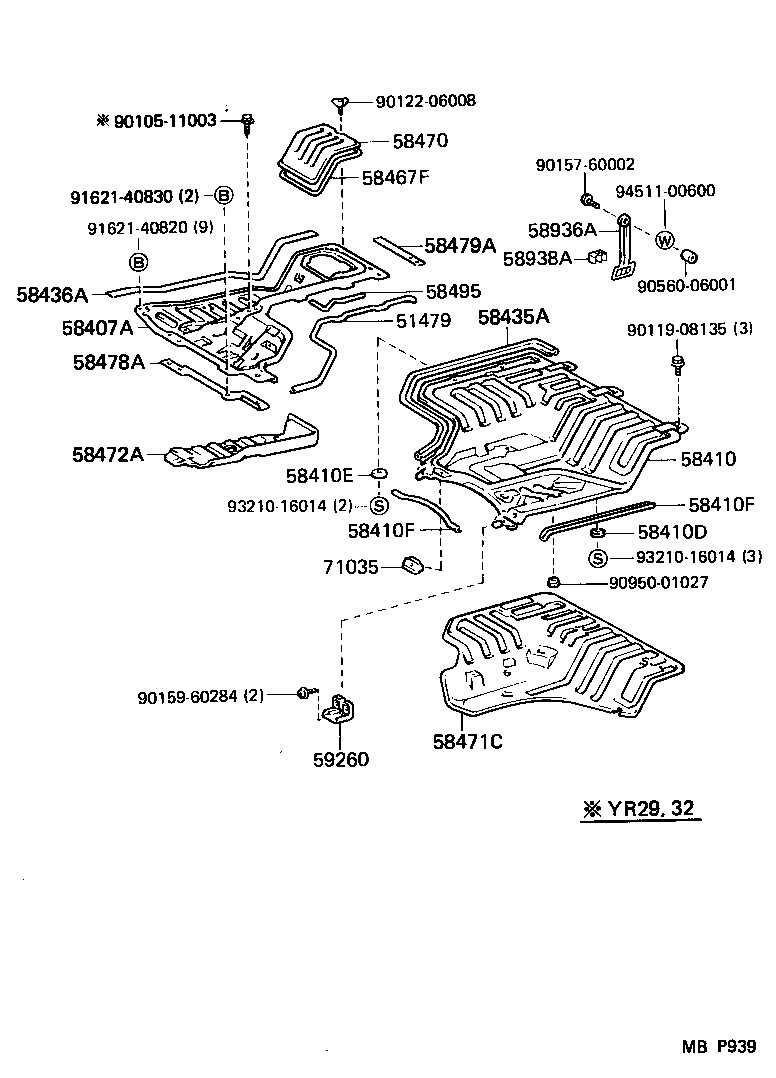

ILLUST NO. 2 OF 3(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51479 - TRIM, ENGINE COVER, NO.2 | ||||
| 51479-87001 |
YR2#,3# |
1 | ||
| 58407A - COVER SUB-ASSY, ENGINE SERVICE HOLE SUB | ||||
| 58407-28060 |
YR2#,3#..4FC |
1 | ||
| 58410 - COVER, ENGINE SERVICE HOLE | ||||
| 58401-28040 |
YR2#,3#..DLX,STD |
1 | ||
| 58410D - CUSHION, NO.1 | ||||
| 90540-06011 |
YR2#,3# |
3 | ||
| 58410E - CUSHION, NO.3 | ||||
| 90540-06014 |
YR2#,3# |
2 | ||
| 58410F - TRIM, ENGINE SERVICE HOLE COVER | ||||
| 51469-87001 |
YR2#,3# L=440 |
1 | ||
| 51499-87001 |
YR2#,3# L=410 |
1 | ||
| 58410F - TRIM, ENGINE SERVICE HOLE COVER | ||||
| 51469-87001 |
YR2#,3# L=440 |
1 | ||
| 51499-87001 |
YR2#,3# L=410 |
1 | ||
| 58435A - PACKING, ENGINE MAIN COVER | ||||
| 58435-87001 |
YR2#,3# |
1 | ||
| 58436A - PACKING, ENGINE SUB COVER, NO.1 | ||||
| 58436-87001 |
YR2#,3# |
1 | ||
| 58467F - PACKING, INSPECTION HOLE | ||||
| 58475-87001 |
YR2#,3# |
1 | ||
| 58470 - COVER ASSY, INSPECTION HOLE | ||||
| 58408-87001 |
YR2#,3# |
1 | ||
| 58471C - SILENCER, ENGINE MAIN COVER | ||||
| 58471-28010 |
YR2#,3# |
1 | ||
| 58472A - SILENCER, ENGINE SUB COVER | ||||
| 58472-87001 |
YR2#,3# |
1 | ||
| 58478A - PACKING, ENGINE SUB COVER, NO.2 | ||||
| 58478-87001 |
YR2#,3# |
1 | ||
| 58479A - PACKING, ENGINE SUB COVER, NO.3 | ||||
| 58479-87001 |
YR2#,3# |
1 | ||
| 58495 - TRIM, INSPECTION HOLE COVER | ||||
| 58495-87001 |
YR2#,3# |
1 | ||
| 58936A - BAND, ENGINE SERVICE HOLE COVER SUPPORT | ||||
| 58936-2801003 |
YR2#,3# GRAY,TRIM1# |
1 | ||
| 58936-2801006 |
YR2#,3# LIGHT BROWN,TRIM4# |
1 | ||
| 58936-2801004 |
YR2#,3# LIGHT BLUE,TRIM8# |
1 | ||
| 58938A - CUSHION, ENGINE SERVICE HOLE COVER BAND | ||||
| 58938-87001 |
YR2#,3#..DLX,STD |
1 | ||
| 59260 - LOCK ASSY, ENGINE COVER | ||||
| 53510-28010 |
YR2#,3# |
2 | ||
| 71035 - CUSHION SUB-ASSY, SEAT STOPPER | ||||
| 71035-87001 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90105-11003 | ||||
| 90119-08135 | ||||
| 90122-06008 | ||||
| 90157-60002 | ||||
| 90159-60284 | ||||
| 90560-06001 | ||||
| 90950-01027 | ||||
| 91621-40820 | ||||
| 91621-40830 | ||||
| 93210-16014 | ||||
| 94511-00600 | ||||

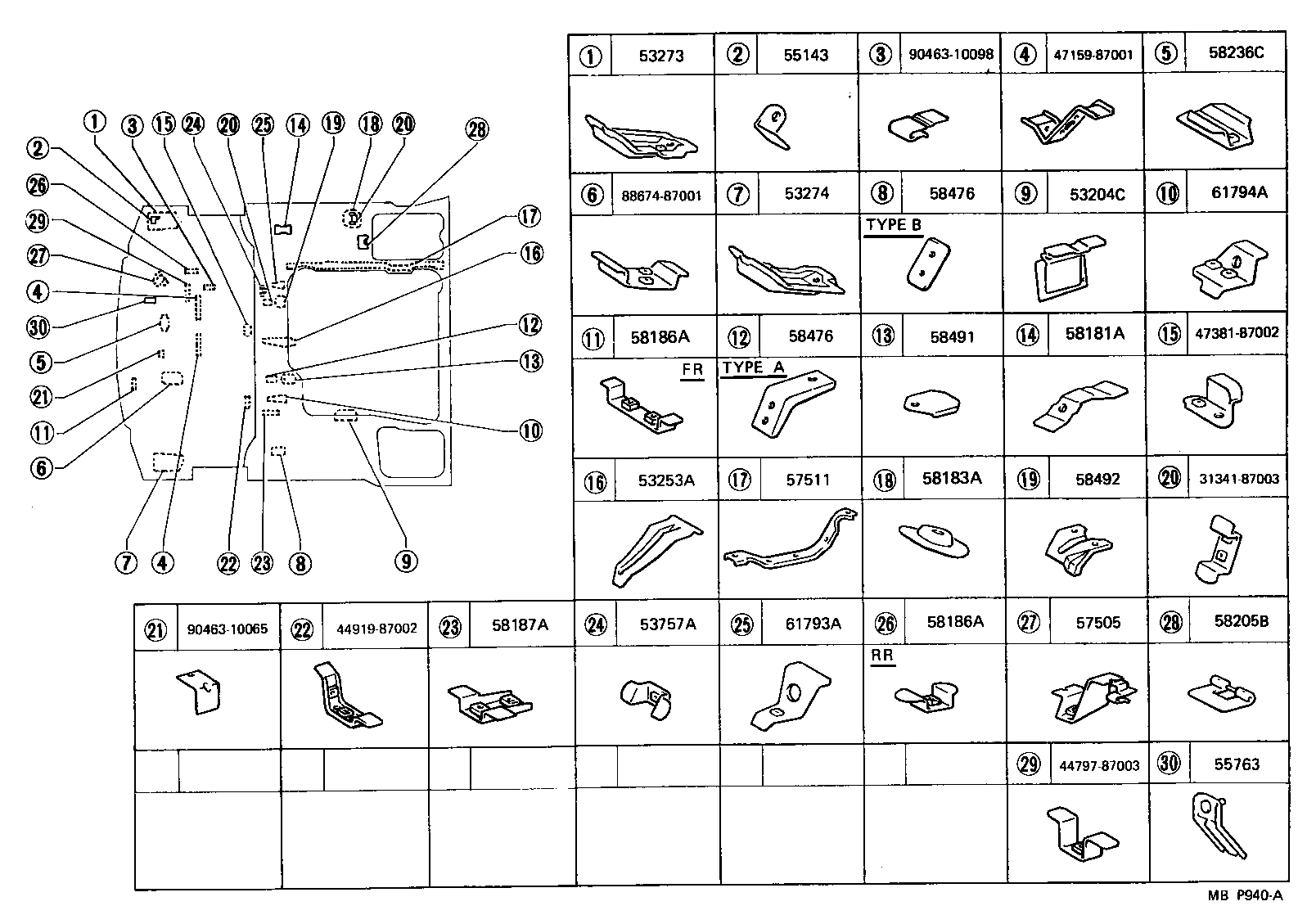

ILLUST NO. 3 OF 3(8808- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 53204C - SUPPORT SUB-ASSY, RADIATOR RESERVER TANK | ||||
| 53204-87002 |
YR2#,3# |
1 | ||
| 53253A - BRACKET, RADIATOR MOUNTING, UPPER | ||||
| 53253-87002 |
YR2#,3# |
1 | ||
| 53273 - BRACKET, FRONT BUMPER ARM MOUNTING, RH | ||||
| 53273-28020 |
YR2#,3# |
1 | ||
| 53274 - BRACKET, FRONT BUMPER ARM MOUNTING, LH | ||||
| 53274-28010 |
YR2#,3# |
1 | ||
| 53757A - BRACKET, HEATER HOSE MOUNTING | ||||
| 53757-87003 |
YR2#,3# |
1 | ||
| 55143 - BRACKET, COWL SIDE TRIM MOUNTING, NO.1 | ||||
| 55143-87001 |
YR2#,3# |
1 | ||
| 55763 - BRACKET, COOLER MOUNTING | ||||
| 55763-28010 |
YR2#,3# |
1 | ||
| 57505 - BRACKET SUB-ASSY, PARKING BRAKE, NO.1 | ||||
| 57505-87002 |
YR2#,3# |
1 | ||
| 57511 - REINFORCEMENT, FRONT FLOOR, CENTER | ||||
| 57511-28020 |
YR2#,3# |
1 | ||
| 58181A - RETAINER, SEAT RAIL, FRONT | ||||
| 58181-28020 |
YR2#,3# |
1 | ||
| 58183A - RETAINER, SEAT RAIL, REAR RH | ||||
| 58183-28020 |
YR2#,3# |
1 | ||
| 58186A - BRACKET, BRAKE TUBE SET | ||||
| 58186-87001 |
YR2#,3# RR |
1 | ||
| 58186-28010 |
YR2#,3# FR |
1 | ||
| 58186A - BRACKET, BRAKE TUBE SET | ||||
| 58186-87001 |
YR2#,3# RR |
1 | ||
| 58186-28010 |
YR2#,3# FR |
1 | ||
| 58187A - BRACKET, VACUUM TUBE CLAMP | ||||
| 58187-87002 |
YR2#,3# |
1 | ||
| 58205B - HINGE SUB-ASSY, BATTERY SERVICE COVER MALE | ||||
| 58205-87001 |
YR2#,3# |
1 | ||
| 58236C - BRACKET, CLUTCH TUBE | ||||
| 58236-87004 |
YR2#,3# |
1 | ||
| 58476 - RETAINER, ENGINE SERVICE HOLE COVER CATCH | ||||
| 58476-87006 |
YR2#,3# TYPE A |
1 | ||
| 58476-28030 |
YR2#,3# TYPE B |
1 | ||
| 58476 - RETAINER, ENGINE SERVICE HOLE COVER CATCH | ||||
| 58476-87006 |
YR2#,3# TYPE A |
1 | ||
| 58476-28030 |
YR2#,3# TYPE B |
1 | ||
| 58491 - RETAINER, ENGINE COVER, NO.1 | ||||
| 58491-87003 |
YR2#,3# |
1 | ||
| 58492 - RETAINER, ENGINE COVER, NO.2 | ||||
| 58492-87002 |
YR2#,3# |
1 | ||
| 61793A - BRACKET, COOLER CONDENSER, NO.1 | ||||
| 61793-87004 |
YR2#,3# |
1 | ||
| 61794A - BRACKET, COOLER CONDENSER, NO.2 | ||||
| 61794-87003 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 31341-87003 | ||||
| 44797-87003 | ||||
| 44919-87002 | ||||
| 47159-87001 | ||||
| 47381-87002 | ||||
| 88674-87001 | ||||
| 90463-10065 | ||||
| 90463-10098 | ||||
