YR22LG-PDEA (1985)
Toyota Van
Production
Aug 1985
-
Aug 1988
Engine
4YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8508-8708)

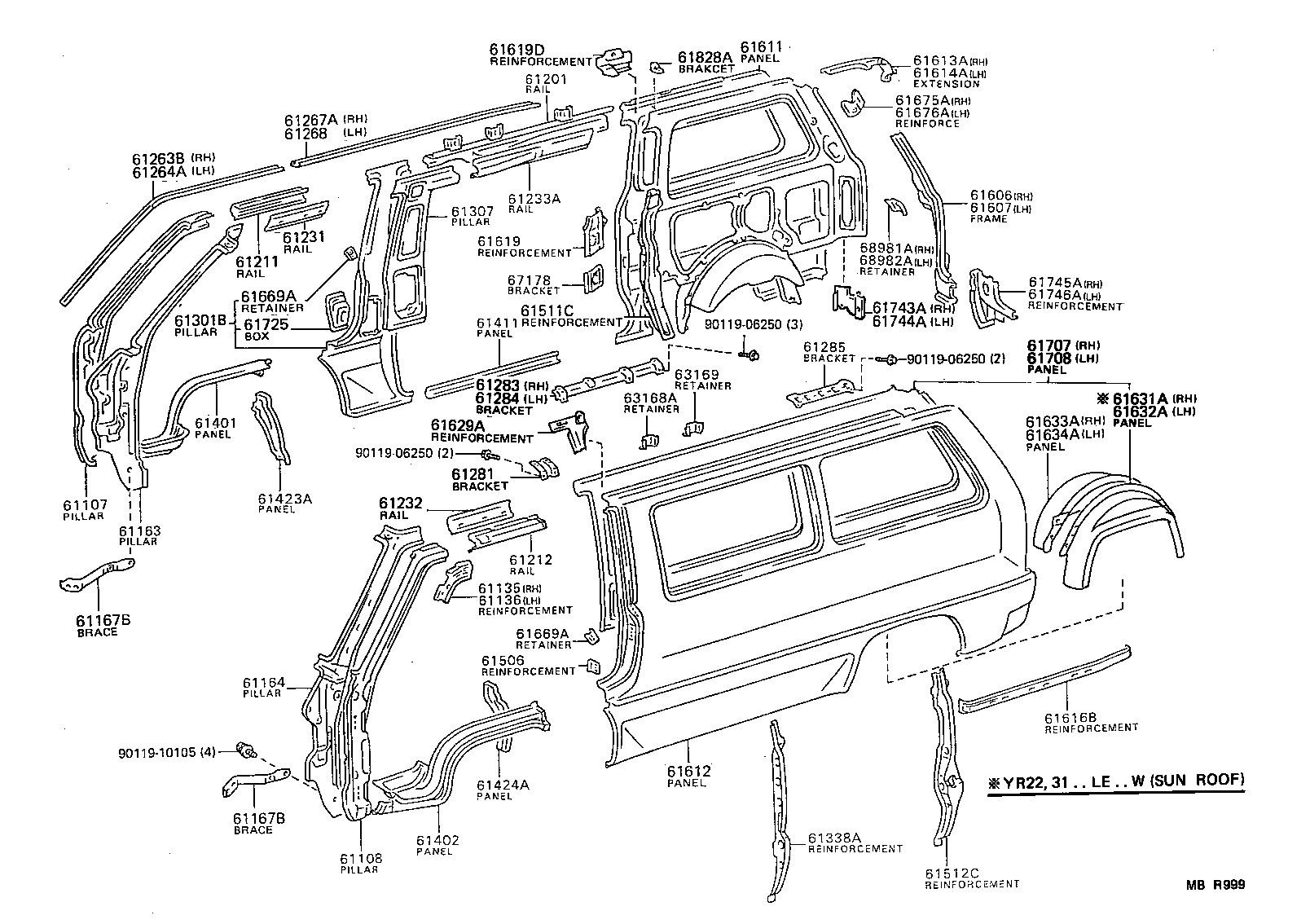

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH | ||||
| 61027-28010 |
YR2# |
1 | ||
| 61027-28030 |
YR2#,3# |
1 | ||
| 61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH | ||||
| 61028-28050 |
YR2# W/ANTENA |
1 | ||
| 61028-28060 |
YR2#,31 W/ANTENA |
1 | ||
| 61028-28070 |
YR22,31..DLX |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-87001 |
YR2#,3# |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-87001 |
YR2#,3# |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-28010 |
YR2#,3# |
2 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-28010 |
YR2#,3# |
2 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-28010 |
YR2#,3# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-87005 |
YR2#,3# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-87007 |
YR2#,3# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-28020 |
YR2#,3# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-28020 |
YR2#,3# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-28010 |
YR2#,3# |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61261-28010 |
YR2#,3# |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61262-28010 |
YR2#,3# |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-87004 |
YR2#,3# |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-87004 |
YR2#,3# |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-87003 |
YR2#,3# |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-87003 |
YR2#,3# |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-28050 |
YR2# |
1 | ||
| 61301-28030 |
YR2#..DLX,STD |
1 | ||
| 61301-28050 |
YR2# W/FUEL LID OPENER |
1 | ||
| 61301-28030 |
YR2# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-28020 |
YR2#,3# |
1 | ||
| 61338A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH | ||||
| 61338-28010 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61401 - PANEL SUB-ASSY, FENDER, RH | ||||
| 61403-87005 |
YR2# |
1 | ||
| 61402 - PANEL SUB-ASSY, FENDER, LH | ||||
| 61404-87004 |
YR2# |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61431-87001 |
YR2#,3# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-87001 |
YR2#,3# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-87001 |
YR2#,3# |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-28010 |
YR2#,3# |
1 | ||
| 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61503-28010 |
YR2#,3# |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-28020 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61771-87001 |
YR2# |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61772-87001 |
YR2#,3# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-28010 |
YR2# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-28020 |
YR2# |
1 | ||
| 61613A - EXTENSION, QUARTER PANEL REAR, RH | ||||
| 61625-87003 |
YR2#,3# |
1 | ||
| 61614A - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-87002 |
YR2#,3# |
1 | ||
| 61616B - REINFORCEMENT, QUARTER PANEL, OUTER REAR | ||||
| 61616-28020 |
YR2# |
1 | ||
| 61619 - REINFORCEMENT, SLIDE DOOR LOCK STRIKER | ||||
| 61513-28020 |
YR2#,3# |
1 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-87001 |
YR2#,3# |
2 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-87001 |
YR2#,3# |
2 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61675-28010 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61676-28010 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-28910 |
YR22,31 |
1 | ||
| 61703-28910 |
YR22,31..DLX |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-28908 |
YR22,31 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61709-87005 |
YR2# |
1 | ||
| 61709-28010 |
YR2#,3# W/FUEL LID OPENER |
1 | ||
| 61709-28010 |
YR2#,3# |
1 | ||
| 61709-87005 |
YR2#,32..DLX,STD |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-87001 |
YR2#,3# |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-87001 |
YR2#,3# |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-87001 |
YR2#,3# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-87001 |
YR2#,3# |
1 | ||
| 61828A - BRACKET, REAR DOOR RAIL, CENTER RH | ||||
| 61828-87001 |
YR2#,3# |
1 | ||
| 63168A - RETAINER, ROOF REINFORCEMENT, NO.1 | ||||
| 63168-87001 |
YR2#,3# W/O SUN ROOF |
1 | ||
| 63169 - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-87001 |
YR2#,3# W/O SUN ROOF |
3 | ||
| 67178 - RETAINER, REAR DOOR SWITCH, RH | ||||
| 67178-87003 |
YR2#,3# |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-87002 |
YR2#,3# |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-87001 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90119-06250 | ||||
| 90119-10105 | ||||
(8708- )

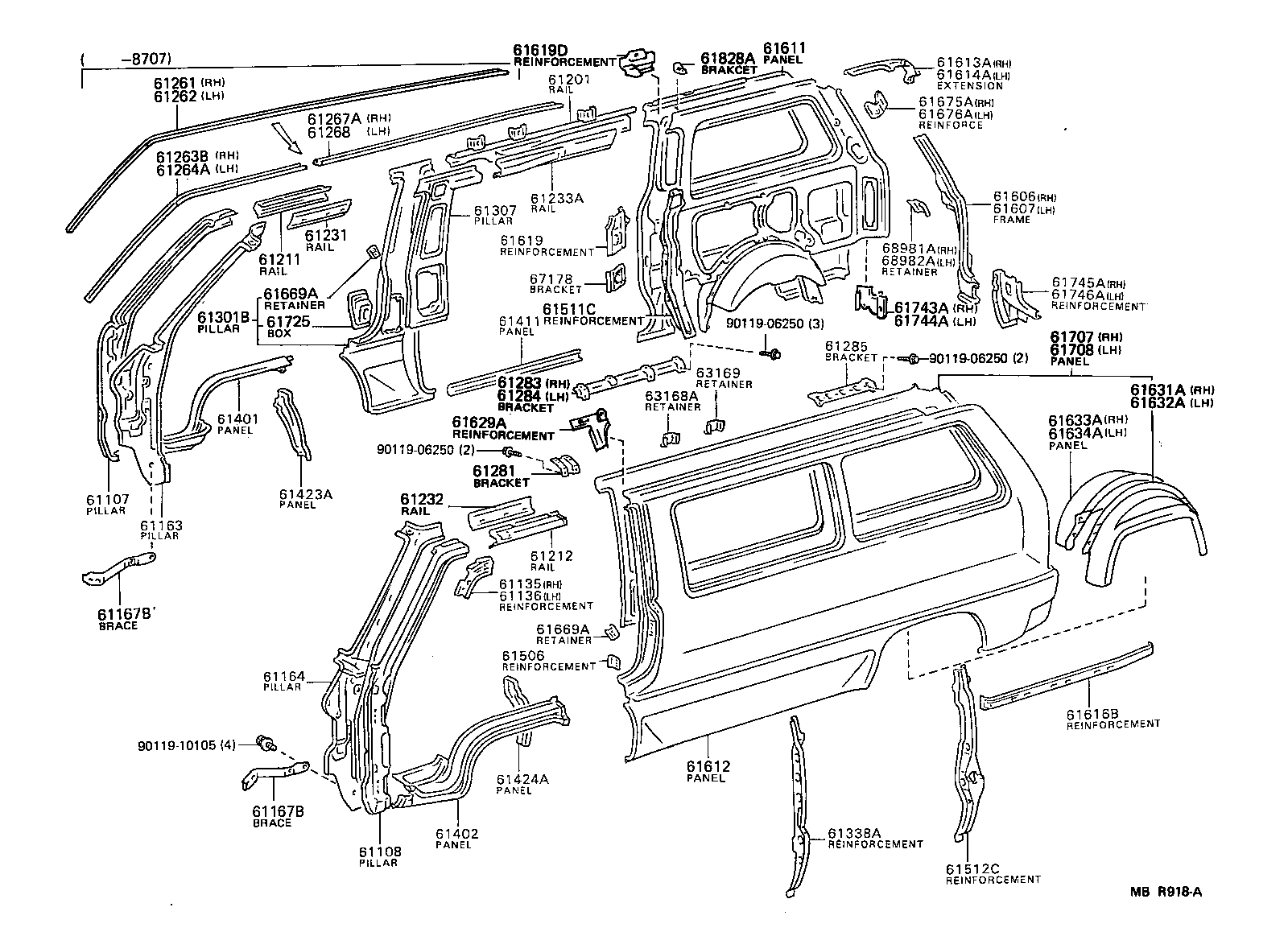

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61107 - PILLAR SUB-ASSY, FRONT BODY OUTER, RH | ||||
| 61027-28010 |
YR2# |
1 | ||
| 61027-28030 |
YR2#,3# |
1 | ||
| 61108 - PILLAR SUB-ASSY, FRONT BODY OUTER, LH | ||||
| 61028-28050 |
YR2# W/ANTENA |
1 | ||
| 61028-28060 |
YR2#,31 W/ANTENA |
1 | ||
| 61028-28070 |
YR22,31..DLX |
1 | ||
| 61135 - REINFORCEMENT, FRONT BODY PILLAR, UPPER RH | ||||
| 61135-87001 |
YR2#,3# |
1 | ||
| 61136 - REINFORCEMENT, FRONT BODY PILLAR, UPPER LH | ||||
| 61136-87001 |
YR2#,3# |
1 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-28010 |
YR2#,3# |
2 | ||
| 61167B - BRACE, FRONT BODY PILLAR, LOWER | ||||
| 61167-28010 |
YR2#,3# |
2 | ||
| 61201 - RAIL SUB-ASSY, ROOF SIDE, RH | ||||
| 61201-28010 |
YR2#,3# |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-87005 |
YR2#,3# |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-87007 |
YR2#,3# |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-28020 |
YR2#,3# |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-28020 |
YR2#,3# |
1 | ||
| 61233A - RAIL, ROOF SIDE, INNER NO.2 RH | ||||
| 61233-28010 |
YR2#,3# |
1 | ||
| 61263B - CHANNEL, ROOF DRIP SIDE, FRONT RH | ||||
| 61263-87004 |
YR2#,3# |
1 | ||
| 61264A - CHANNEL, ROOF DRIP SIDE, FRONT LH | ||||
| 61264-87004 |
YR2#,3# |
1 | ||
| 61267A - CHANNEL, ROOF DRIP SIDE, REAR RH | ||||
| 61267-87003 |
YR2#,3# |
1 | ||
| 61268 - CHANNEL, ROOF DRIP SIDE, REAR LH | ||||
| 61268-87003 |
YR2#,3# |
1 | ||
| 61301B - PILLAR, CENTER BODY, OUTER RH | ||||
| 61301-28050 |
YR2# |
1 | ||
| 61301-28030 |
YR2#..DLX,STD |
1 | ||
| 61301-28050 |
YR2# W/FUEL LID OPENER |
1 | ||
| 61301-28030 |
YR2# |
1 | ||
| 61307 - PILLAR SUB-ASSY, CENTER BODY, INNER RH | ||||
| 61307-28020 |
YR2#,3# |
1 | ||
| 61338A - REINFORCEMENT, CENTER BODY PILLAR, INNER LH | ||||
| 61338-28010 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61401 - PANEL SUB-ASSY, FENDER, RH | ||||
| 61403-87005 |
YR2# |
1 | ||
| 61402 - PANEL SUB-ASSY, FENDER, LH | ||||
| 61404-87004 |
YR2# |
1 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61431-87001 |
YR2#,3# |
1 | ||
| 61423A - PANEL, FENDER, INNER LOWER RH | ||||
| 61423-87001 |
YR2#,3# |
1 | ||
| 61424A - PANEL, FENDER, INNER LOWER LH | ||||
| 61424-87001 |
YR2#,3# |
1 | ||
| 61506 - REINFORCE SUB-ASSY, FRONT DOOR LOCK STRIKER, LH | ||||
| 61506-28010 |
YR2#,3# |
1 | ||
| 61511C - REINFORCEMENT, QUARTER LOCK PILLAR, RH | ||||
| 61503-28010 |
YR2#,3# |
1 | ||
| 61512C - REINFORCEMENT, QUARTER LOCK PILLAR, LH | ||||
| 61518-28020 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61606 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, RH | ||||
| 61771-87001 |
YR2# |
1 | ||
| 61607 - FRAME SUB-ASSY, BACK DOOR OPENING SIDE, LH | ||||
| 61772-87001 |
YR2#,3# |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61611-28010 |
YR2# |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61612-28020 |
YR2# |
1 | ||
| 61613A - EXTENSION, QUARTER PANEL REAR, RH | ||||
| 61625-87003 |
YR2#,3# |
1 | ||
| 61614A - EXTENSION, QUARTER PANEL, REAR LH | ||||
| 61626-87002 |
YR2#,3# |
1 | ||
| 61616B - REINFORCEMENT, QUARTER PANEL, OUTER REAR | ||||
| 61616-28020 |
YR2# |
1 | ||
| 61619 - REINFORCEMENT, SLIDE DOOR LOCK STRIKER | ||||
| 61513-28020 |
YR2#,3# |
1 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-87001 |
YR2#,3# |
2 | ||
| 61669A - RETAINER, FRONT DOOR OPEN SWITCH SET | ||||
| 61669-87001 |
YR2#,3# |
2 | ||
| 61675A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER RH | ||||
| 61675-28010 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61676A - REINFORCE, SEAT BELT ANCHOR, NO.2 UPPER LH | ||||
| 61676-28010 |
YR29..VSG;YR21,22,27,31 |
1 | ||
| 61707 - PANEL SUB-ASSY, QUARTER, INNER RH | ||||
| 61703-28910 |
YR22,31 |
1 | ||
| 61703-28910 |
YR22,31..DLX |
1 | ||
| 61708 - PANEL SUB-ASSY, QUARTER, INNER LH | ||||
| 61704-28908 |
YR22,31 |
1 | ||
| 61725 - BOX, FUEL INLET | ||||
| 61709-87005 |
YR2# |
1 | ||
| 61709-28010 |
YR2#,3# W/FUEL LID OPENER |
1 | ||
| 61709-28010 |
YR2#,3# |
1 | ||
| 61709-87005 |
YR2#,32..DLX,STD |
1 | ||
| 61743A - REINFORCEMENT, BACK DOOR OPENING SIDE, RH | ||||
| 61743-87001 |
YR2#,3# |
1 | ||
| 61744A - REINFORCEMENT, BACK DOOR OPENING SIDE, LH | ||||
| 61744-87001 |
YR2#,3# |
1 | ||
| 61745A - REINFORCEMENT, BACK DOOR OPENING, LOWER RH | ||||
| 61745-87001 |
YR2#,3# |
1 | ||
| 61746A - REINFORCEMENT, BACK DOOR OPENING, LOWER LH | ||||
| 61746-87001 |
YR2#,3# |
1 | ||
| 61828A - BRACKET, REAR DOOR RAIL, CENTER RH | ||||
| 61828-87001 |
YR2#,3# |
1 | ||
| 63168A - RETAINER, ROOF REINFORCEMENT, NO.1 | ||||
| 63168-87001 |
YR2#,3# W/O SUN ROOF |
1 | ||
| 63169 - RETAINER, ROOF REINFORCEMENT, NO.2 | ||||
| 63169-87001 |
YR2#,3# W/O SUN ROOF |
3 | ||
| 67178 - RETAINER, REAR DOOR SWITCH, RH | ||||
| 67178-87003 |
YR2#,3# |
1 | ||
| 68981A - RETAINER, BACK DOOR STAY, RH | ||||
| 68981-87002 |
YR2#,3# |
1 | ||
| 68982A - RETAINER, BACK DOOR STAY, LH | ||||
| 68982-87001 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 90119-06250 | ||||
| 90119-10105 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
Unable to retrieve price information.
