YR22LG-PDEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )4FC

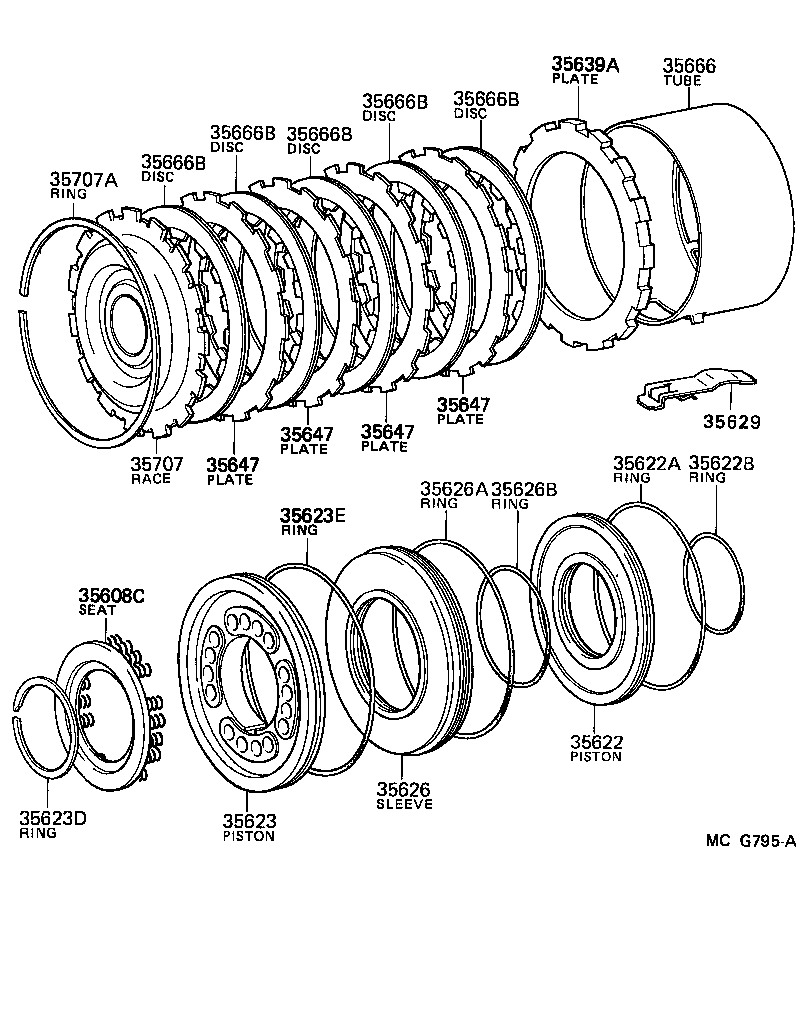

Click highlighted areas on diagram

diagram 35608C 35622 35622A 35622B 35623 35623D 35623E 35626 35626A 35626B 35629 35639A 35647 35647 35647 35647 35666 35666B 35666B 35666B 35666B 35666B 35707 35707A
Part # Description Qty Price
35608C - SPRING SUB-ASSY, NO.3 BRAKE PISTON RETURN
35608-20020

YR2#,3#..4FC

 1
35622 - PISTON, BRAKE, NO.2
35622-22010

YR2#,3#..4FC

 1
35622A - RING (FOR BRAKE PISTON OUTER)
90301-99193

YR2#,3#..4FC

 1
35622B - RING (FOR BRAKE PISTON INNER)
90301-57188

YR2#,3#..4FC

 1
35623 - PISTON, BRAKE, NO.3
35623-22010

YR2#,3#..4FC

 1
35623D - RING, SHAFT SNAP (FOR BRAKE)
90520-52262

YR2#,3#..4FC

 1
35623E - RING, O, NO.1 (FOR BRAKE PISTON)
90301-99192

YR2#,3#..4FC

 1
35626 - SLEEVE, BRAKE REACTION
35626-22010

YR2#,3#..4FC

 1
35626A - RING (FOR BRAKE REACTION SLEEVE OUTER)
90301-99200

YR2#,3#..4FC

 1
35626B - RING (FOR BRAKE REACTION SLEEVE INNER)
90301-68191

YR2#,3#..4FC

 1
35629 - SPRING (1ST & REVS BRAKE PLATE STOPPER)
35629-22010

YR2#,3#..4FC

 1
35639A - PLATE, CLUTCH PRESSURE (FOR BRAKE)
35639-22010

YR2#,3#..4FC

 1
35647 - PLATE, CLUTCH, NO.2
35647-22010

YR2#,3#..4FC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

YR2#,3#..4FC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

YR2#,3#..4FC

 4
35647 - PLATE, CLUTCH, NO.2
35647-22010

YR2#,3#..4FC

 4
35666 - TUBE, BRAKE APPLY
35666-30010

YR2#,3#..4FC

 1
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

YR2#,3#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

YR2#,3#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

YR2#,3#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

YR2#,3#..4FC

 5
35666B - DISC, CLUTCH (FOR BRAKE)
35633-30050

YR2#,3#..4FC

 5
35707 - RACE SUB-ASSY, 1 WAY CLUTCH, INNER
35707-30040

YR2#,3#..4FC

 1
35707A - RING, HOLE SNAP (FOR 1 WAY CLUTCH INNER RACE)
90521-99140

YR2#,3#..4FC

 1
