YR22LG-MQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

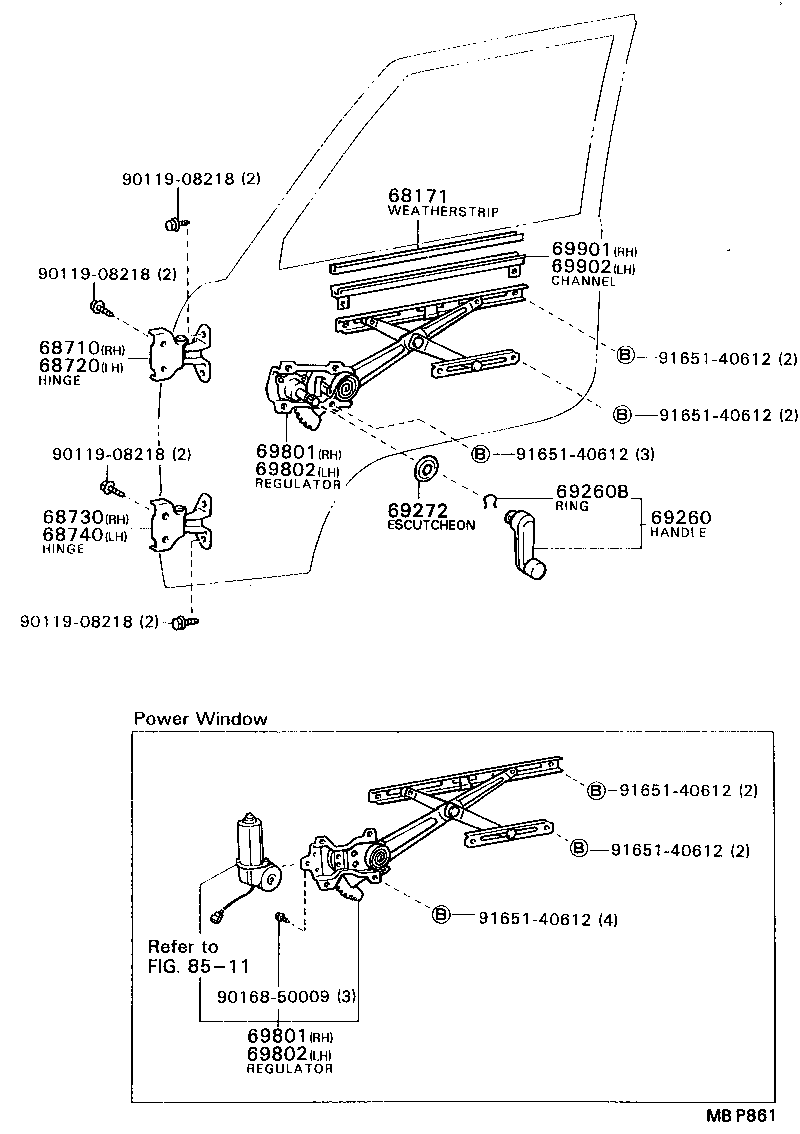

Click highlighted areas on diagram

diagram 68171 68710 68720 68730 68740 69260 69260B 69272 69801 69801 69802 69802 69901 69902 8511 9011908218 9011908218 9011908218 9011908218 9016850009 9165140612 9165140612 9165140612 9165140612 9165140612 9165140612
Part # Description Qty Price
68171 - WEATHERSTRIP, FRONT DOOR GLASS CHANNEL
68171-22020

YR2#,3#

 2
68710 - HINGE ASSY, FRONT DOOR, UPPER RH
68710-87002

YR2#,3#

 1
68720 - HINGE ASSY, FRONT DOOR, UPPER LH
68720-87001

YR2#,3#

 1
68730 - HINGE ASSY, FRONT DOOR, LOWER RH
68720-87001

YR2#,3#

 1
68740 - HINGE ASSY, FRONT DOOR, LOWER LH
68710-87002

YR2#,3#

 1
69260 - HANDLE ASSY, FRONT DOOR WINDOW REGULATOR
69260-1004049

YR2#,3#

BROWN,TRIM4#

 2
69260-1004050

YR2#,3#

BLUE,TRIM8#

 2
69260-1004043

YR2#,3#

GRAY,TRIM1#

 2
69260B - RING, SHAFT SNAP(FOR FRONT DOOR WINDOW REGULATOR HANDLE
90520-01002

YR2#,3#

 2
69272 - PLATE, FRONT DOOR REGULATOR INSIDE HANDLE
69285-2201008

YR2#,3#

NATURAL WHITE,TRIM1#,8#

 2
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-87002

YR2#,3#

 1
69810-87004

YR22,31..LE

W(POWER WINDOW)

 1
69801 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH
69810-87002

YR2#,3#

 1
69810-87004

YR22,31..LE

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-87002

YR2#,3#

 1
69820-87004

YR22,31..LE

W(POWER WINDOW)

 1
69802 - REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH
69820-87002

YR2#,3#

 1
69820-87004

YR22,31..LE

W(POWER WINDOW)

 1
69901 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, RH
69901-87002

YR2#,3#

 1
69902 - CHANNEL SUB-ASSY, FRONT DOOR GLASS, LH
69901-87002

YR2#,3#

 1
Common parts
90119-08218
90168-50009
91651-40612
Linked diagrams
8511
