YR22LG-MQEA (1988)
Toyota Van
(8808- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-28020 |
YR22..LE W(TWIN SUN ROOF) |
1 | ||
| 63105-95D01 |
YR22,31 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28010 |
YR22,31 |
1 | ||
| 63111-28020 |
YR22..LE W(TWIN SUN ROOF) |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-87005 |
YR22,31..LE |
1 | ||
| 63132-87004 |
YR22..LE W(TWIN SUN ROOF) |
1 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-87009 |
YR2#,3# |
2 | ||
| 63141G - REINFORCEMENT, ROOF PANEL, NO.1 | ||||
| 63141-87009 |
YR2#,3# |
2 | ||
| 63143B - REINFORCEMENT, ROOF PANEL, NO.3 | ||||
| 63143-87003 |
YR2#,3# |
1 | ||
| Common parts | ||||
| 91651-40614 | ||||

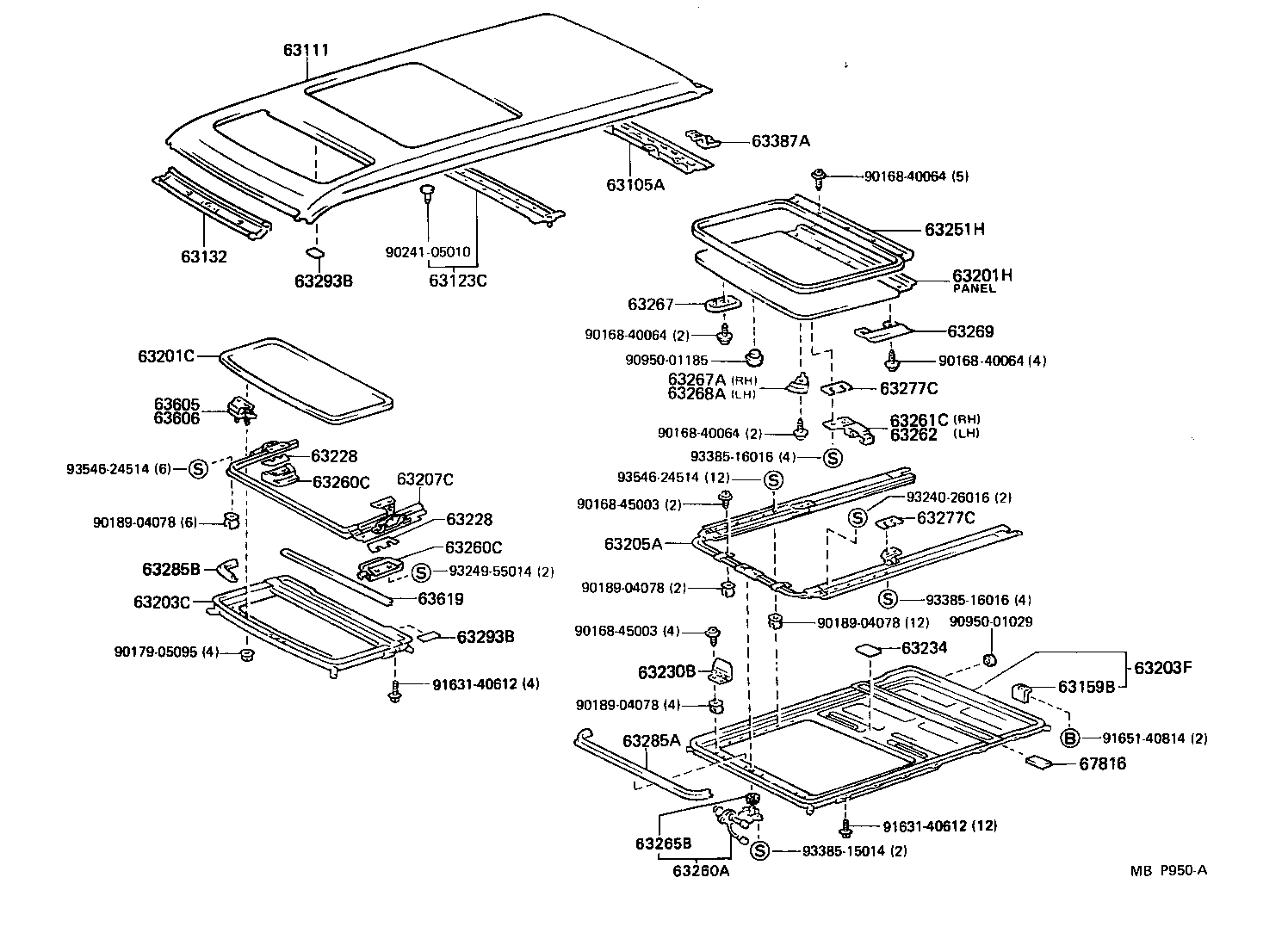

ILLUST NO. 1 OF 2(8808- )LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63105A - FRAME SUB-ASSY, BACK DOOR OPENING | ||||
| 63105-28020 |
YR22..LE W(TWIN SUN ROOF) |
1 | ||
| 63105-95D01 |
YR22,31 |
1 | ||
| 63111 - PANEL, ROOF | ||||
| 63111-28010 |
YR22,31 |
1 | ||
| 63111-28020 |
YR22..LE W(TWIN SUN ROOF) |
1 | ||
| 63123C - REINFORCEMENT, ROOF PANEL | ||||
| 63123-95700 |
YR22..LE |
1 | ||
| 63132 - PANEL, WINDSHIELD HEADER, INNER | ||||
| 63102-87005 |
YR22,31..LE |
1 | ||
| 63132-87004 |
YR22..LE W(TWIN SUN ROOF) |
1 | ||
| 63159B - BRACKET, SLIDING ROOF, REAR | ||||
| 63159-95700 |
YR22..LE |
2 | ||
| 63201C - GLASS SUB-ASSY, TILT ROOF | ||||
| 63201-28030 |
YR22..LE |
1 | ||
| 63201H - PANEL SUB-ASSY, SLIDE ROOF | ||||
| 63201-28010 |
YR22..LE |
1 | ||
| 63203C - HOUSING SUB-ASSY, TILT ROOF | ||||
| 63203-87007 |
YR22..LE |
1 | ||
| 63203F - HOUSING SUB-ASSY, SLIDING ROOF | ||||
| 63203-28010 |
YR22..LE |
1 | ||
| 63205A - CABLE SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63205-28020 |
YR22..LE |
1 | ||
| 63207C - RAIL SUB-ASSY, TILT ROOF GUIDE | ||||
| 63207-28010 |
YR22..LE |
1 | ||
| 63228 - SPACER, SLIDE ROOF LOCK, NO.1 | ||||
| 63228-87006 |
YR22..LE |
1 | ||
| 63228 - SPACER, SLIDE ROOF LOCK, NO.1 | ||||
| 63228-87006 |
YR22..LE |
1 | ||
| 63230B - PANEL ASSY, ROOF WIND DEFLECTOR | ||||
| 63230-95700 |
YR22..LE |
2 | ||
| 63234 - PROTECTOR, SLIDE ROOF HOUSING | ||||
| 63234-95701 |
YR22..LE |
1 | ||
| 63251H - WEATHERSTRIP, SLIDING ROOF | ||||
| 63251-28020 |
YR22..LE |
1 | ||
| 63260A - GEAR SUB-ASSY, SLIDING ROOF DRIVE | ||||
| 63260-87003 |
YR22..LE |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-28020 |
YR22..LE RH |
1 | ||
| 63260-87004 |
YR22..LE LH |
1 | ||
| 63260C - HANDLE ASSY, TILT ROOF LOCK | ||||
| 63260-28020 |
YR22..LE RH |
1 | ||
| 63260-87004 |
YR22..LE LH |
1 | ||
| 63261C - SHOE, SLIDING ROOF, FRONT RH | ||||
| 63261-28010 |
YR22..LE |
1 | ||
| 63262 - SHOE, SLIDING ROOF, FRONT LH | ||||
| 63262-28010 |
YR22..LE |
1 | ||
| 63265B - GEAR, SLIDING ROOF DRIVE | ||||
| 63265-20010 |
YR22..LE |
1 | ||
| 63267 - PROTECTOR, SLIDING ROOF WEATHERSTRIP | ||||
| 63267-28020 |
YR22..LE |
2 | ||
| 63267A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, RH | ||||
| 63267-28010 |
YR22..LE |
1 | ||
| 63268A - PROTECTOR, SLIDING ROOF WEATHERSTRIP, LH | ||||
| 63267-28010 |
YR22..LE |
1 | ||
| 63269 - RETAINER, SLIDING ROOF WEATHERSTRIP | ||||
| 63269-28010 |
YR22..LE |
2 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-95701 |
YR22..LE T=1.0 |
1 | ||
| 63277C - SHIM, SLIDING ROOF PANEL | ||||
| 63277-95701 |
YR22..LE T=1.0 |
1 | ||
| 63285A - DAM, SLIDING ROOF HOUSING | ||||
| 63285-87010 |
YR22..LE |
1 | ||
| 63285B - COVER, SLIDING ROOF HOUSING DRAIN, FRONT | ||||
| 63285-87008 |
YR22..LE |
2 | ||
| 63293B - PROTECTOR, SLIDE ROOF SILENCER, NO.1 | ||||
| 63293-87001 |
YR22..LE |
4 | ||
| 63293B - PROTECTOR, SLIDE ROOF SILENCER, NO.1 | ||||
| 63293-87001 |
YR22..LE |
4 | ||
| 63387A - BRACKET, ROOF HEADLINING HOLDER | ||||
| 63387-87001 |
YR22..LE |
2 | ||
| 63605 - HINGE SUB-ASSY, TILT ROOF, RH | ||||
| 63605-28010 |
YR22..LE |
1 | ||
| 63606 - HINGE SUB-ASSY, TILT ROOF, LH | ||||
| 63606-28010 |
YR22..LE |
1 | ||
| 63619 - COVER, TILT ROOF PANEL | ||||
| 63619-87003 |
YR22..LE |
1 | ||
| 67816 - PAD, ROOF PANEL, NO.4 | ||||
| 67816-87001 |
YR22..LE |
5 | ||
| Common parts | ||||
| 90168-40064 | ||||
| 90168-45003 | ||||
| 90179-05095 | ||||
| 90189-04078 | ||||
| 90241-05010 | ||||
| 90950-01029 | ||||
| 90950-01185 | ||||
| 91631-40612 | ||||
| 91651-40814 | ||||
| 93240-26016 | ||||
| 93249-55014 | ||||
| 93385-15014 | ||||
| 93385-16016 | ||||
| 93546-24514 | ||||
ILLUST NO. 2 OF 2(8808- )LE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63218A - HOSE(FOR SLIDING ROOF OR REMOVABLE ROOF DRAIN) | ||||
| 63247-87007 |
YR22..LE OD=18,L=1380 |
1 | ||
| 63249-87009 |
YR22..LE |
2 | ||
| 63246-87003 |
YR22..LE OD=19,L=1600 |
1 | ||
| 63247-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE B |
1 | ||
| 63246-87004 |
YR22..LE OD=19,L=255 |
1 | ||
| 63249-87005 |
YR22..LE OD=17,L=150 |
1 | ||
| 63249-87006 |
YR22..LE OD=17,L=163 |
1 | ||
| 63245-87005 |
YR22..LE W(TWIN SUN ROOF),OD=18,L=1600,TYPE A |
2 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-87003 |
YR22..LE |
2 | ||
| 63258D - JOINT, SLIDE ROOF DRAIN HOSE | ||||
| 63258-87003 |
YR22..LE |
2 | ||
| Common parts | ||||
| 82817-87013 | ||||
| 90467-17126 | ||||
| 90467-18003 | ||||
| 90480-25001 | ||||
| 90480-25022 | ||||
| 90480-46041 | ||||
