YR22LG-MQEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

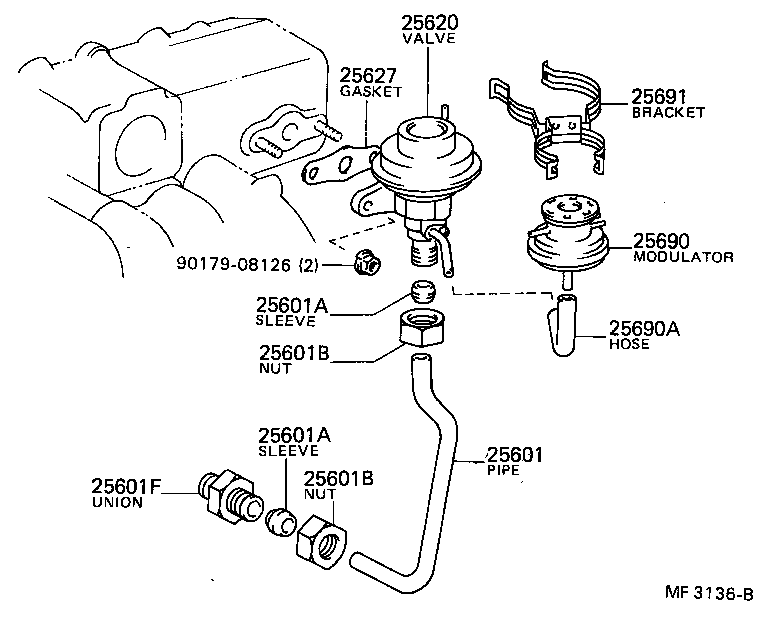

Click highlighted areas on diagram

diagram 25601 25601A 25601A 25601B 25601B 25601F 25620 25627 25690 25690A 25691 9017908126
Part # Description Qty Price
25601 - PIPE SUB-ASSY, EGR, NO.1
25611-73010

4YEC..YR2#,3#

 1
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

4YEC..YR2#,3#

 2
25601A - SLEEVE, BALL, EGR PIPE, NO.1
90410-12042

4YEC..YR2#,3#

 2
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

4YEC..YR2#,3#

 2
25601B - NUT, UNION, EGR PIPE, NO.1
90402-20073

4YEC..YR2#,3#

 2
25601F - UNION(FOR EGR PIPE, NO.1)
90404-20011

4YEC..YR2#,3#

 1
25620 - VALVE ASSY, EGR
25620-73010

4YEC..YR2#

 1
25627 - GASKET, EGR VALVE
25627-73010

4YEC..YR2#,3#

 1
25627-31020

4YEC..YR2#,3#

 1
25690 - MODULATOR ASSY, EGR VACUUM
25870-61011

4YEC..YR2#,3#

 1
25690A - HOSE(FOR EGR VACUUM MODULATOR)
90910-06038

4YEC..YR2#,3#

 1
25691 - BRACKET, EGR VACUUM MODULATOR
25691-73011

4YEC..YR2#,3#

 1
Common parts
90179-08126
