YR22LG-MDEK (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

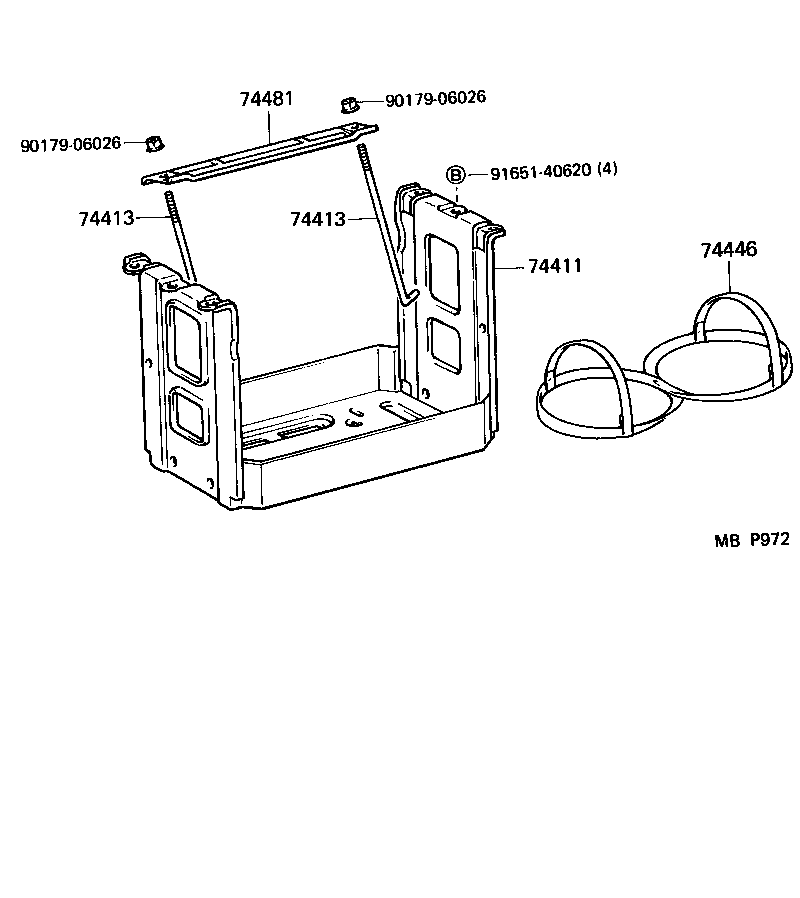

Click highlighted areas on diagram

diagram 74411 74413 74413 74446 74481 9017906026 9017906026 9165140620
Part # Description Qty Price
74411 - CARRIER, BATTERY
74403-87004

YR2#,3#

 1
74413 - BOLT, BATTERY CLAMP
74451-87002

YR2#,3#

 2
74413 - BOLT, BATTERY CLAMP
74451-87002

YR2#,3#

 2
74446 - BAND, BATTERY
74446-95702

YR2#,3#

 1
74481 - CLAMP, BATTERY HOLD DOWN
74481-87007

YR2#,3#

 1
Common parts
90179-06026
91651-40620
