YR22LG-MDEA (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8508- )

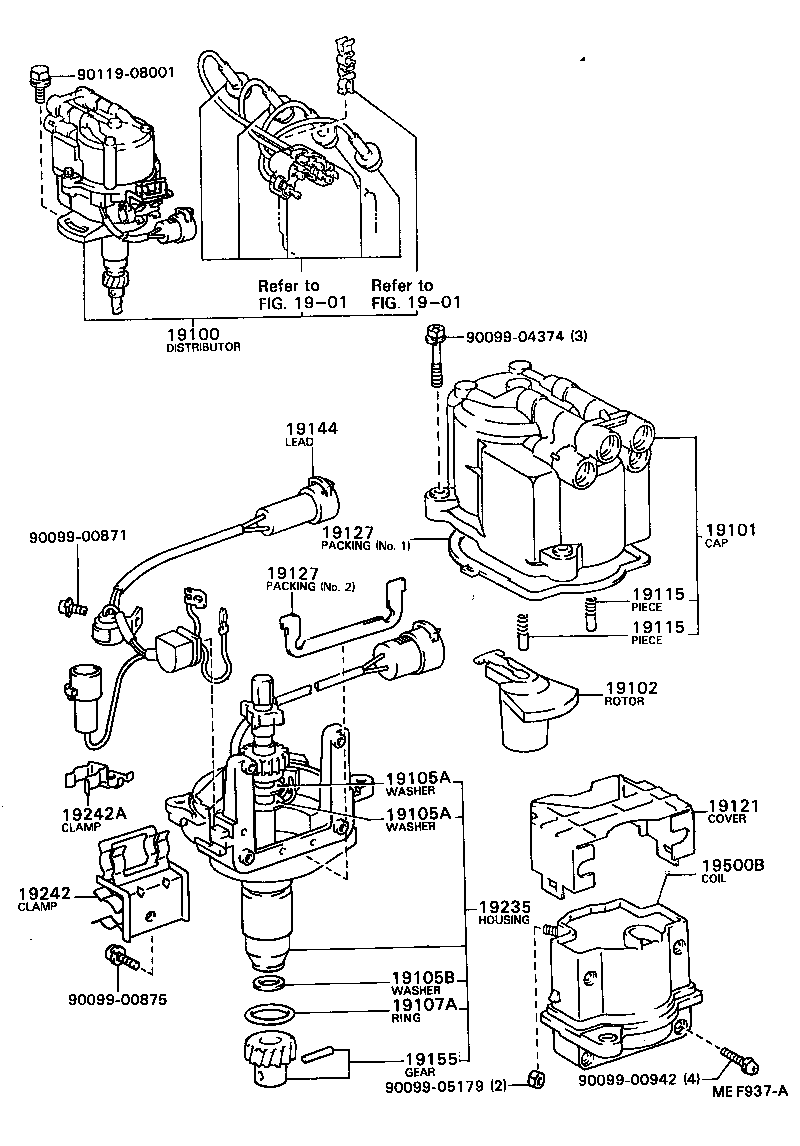

Click highlighted areas on diagram

diagram 1901 1901 19100 19101 19102 19105A 19105A 19105B 19107A 19115 19115 19121 19127 19127 19144 19155 19235 19242 19242A 19500B 9009900871 9009900875 9009900942 9009904374 9009905179 9011908001
Part # Description Qty Price
19100 - DISTRIBUTOR ASSY
19040-73010

4YEC..YR2#,3#

 1
19101 - CAP SUB-ASSY, DISTRIBUTOR
19101-71010

3YEC,4YEC..YR2#,3#

 1
19102 - ROTOR SUB-ASSY, DISTRIBUTOR
19102-35160

4YEC..YR2#

 1
19102-16060

4YEC..YR2#,3#

 1
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01488

3YEC,4YEC..YR2#,3#

T=0.6,T=0.6

 2
90099-01486

3YEC,4YEC..YR2#,3#

T=0.3,T=0.3

 2
90099-01487

3YEC,4YEC..YR2#,3#

T=0.4,T=0.4

 2
90099-01489

3YEC,4YEC..YR2#,3#

T=0.5,T=0.5

 2
19105A - WASHER(FOR GOVERNOR SHAFT THRUST)
90099-01488

3YEC,4YEC..YR2#,3#

T=0.6,T=0.6

 2
90099-01486

3YEC,4YEC..YR2#,3#

T=0.3,T=0.3

 2
90099-01487

3YEC,4YEC..YR2#,3#

T=0.4,T=0.4

 2
90099-01489

3YEC,4YEC..YR2#,3#

T=0.5,T=0.5

 2
19105B - WASHER, NO.2(FOR GOVERNOR SHAFT THRUST)
90099-01429

3YEC,4YEC..YR2#,3#

 1
19107A - RING, O, DISTRIBUTOR HOUSING
90099-14020

3YEC,4YEC..YR2#,3#

 1
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4YEC..YR2#,3#

 2
19115 - PIECE, DISTRIBUTOR CAP, CENTER
19115-63010

4YEC..YR2#,3#

 2
19121 - COVER, DUST PROOF
19121-63040

4YEC..YR2#,3#

 1
19127 - PACKING, DUST PROOF
19127-63020

3YEC,4YEC..YR2#,3#

NO.2

 1
19127-63010

3YEC,4YEC..YR2#,3#

NO.1

 1
19127 - PACKING, DUST PROOF
19127-63020

3YEC,4YEC..YR2#,3#

NO.2

 1
19127-63010

3YEC,4YEC..YR2#,3#

NO.1

 1
19144 - LEAD, DISTRIBUTOR BREAKER
19144-73020

4YEC..YR2#,3#

 1
19155 - GEAR, SPIRAL, DISTRIBUTOR
19195-71010

3YEC,4YEC..YR2#,3#

 1
19235 - HOUSING, DISTRIBUTOR
19235-73020

4YEC..YR2#,3#

 1
19242 - CLAMP, CORD
19242-73020

4YEC..YR2#,3#

 1
19242A - CLAMP, CORD, NO.2
19242-71060

3YEC,4YEC..YR2#,3#

 1
19500B - COIL ASSY, IGNITION
90919-02135

3YEC,4YEC..YR2#,3#

 1
Common parts
90099-00871
90099-00875
90099-00942
90099-04374
90099-05179
90119-08001
Linked diagrams
1901
