YR22LG-MDEA (1985)

Toyota Van

Production Aug 1985 - Aug 1988
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8509)

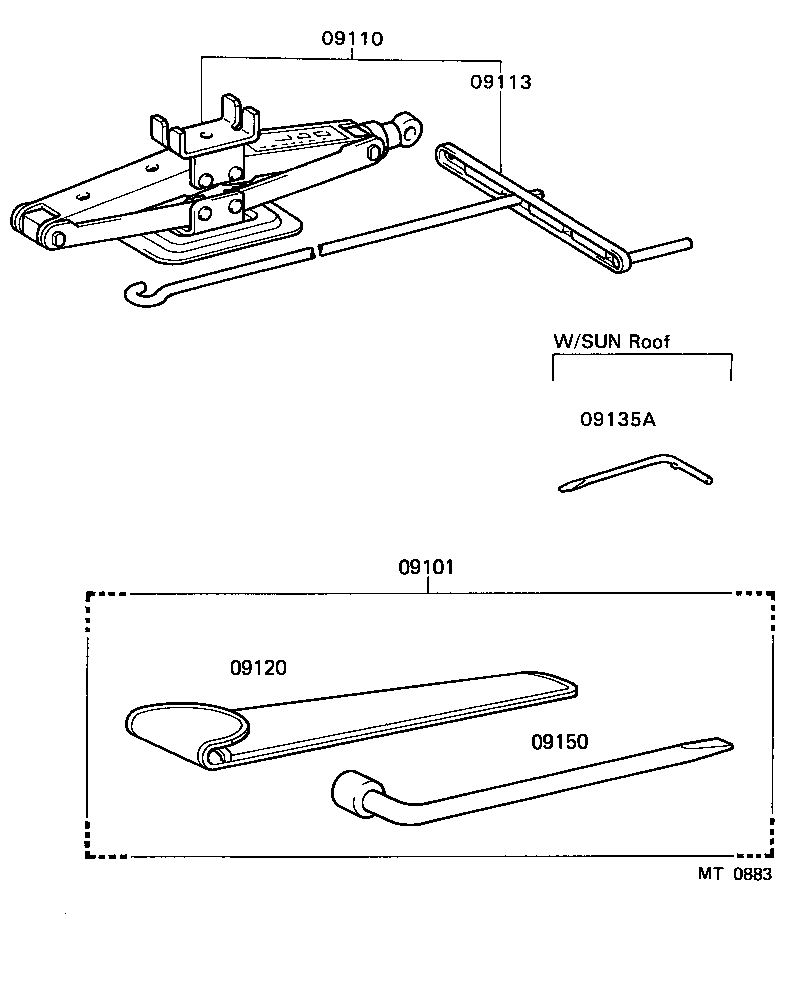

Click highlighted areas on diagram

diagram 09101 09110 09113 09120 09135A 09150
Part # Description Qty Price
09101 - TOOL SET, STANDARD W/O JACK
09101-14070

YR2#

 1
09110 - JACK ASSY
09111-28020

YR2#

 1
09111-28030

YR2#,3#

 1
09111-27040

YR2#

 1
09110-27040

YR2#

 1
09113 - HANDLE, JACK
09113-13021

YR2#

 1
09120 - BAG, TOOL
09120-12030

YR2#

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

YR2#,3#

 1

(8509- )

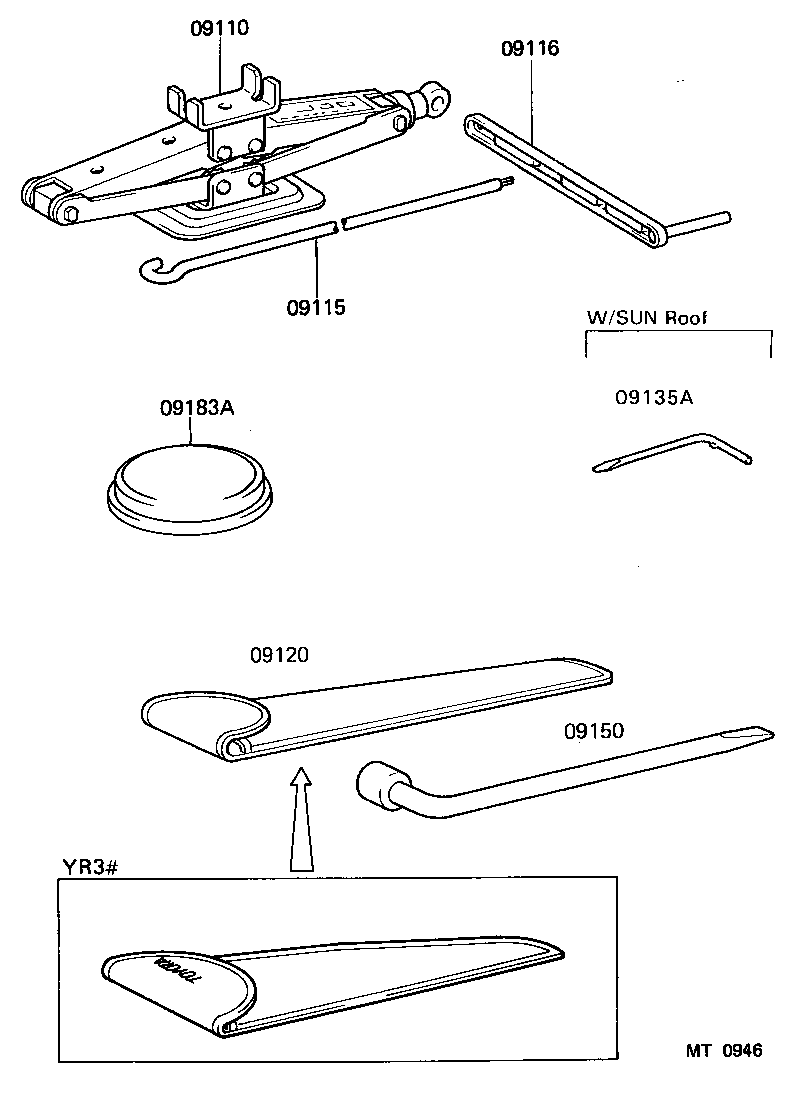

Click highlighted areas on diagram

diagram 09110 09115 09116 09120 09135A 09150 09183A
Part # Description Qty Price
09110 - JACK ASSY
09111-28020

YR2#

 1
09111-28030

YR2#,3#

 1
09111-27040

YR2#

 1
09110-27040

YR2#

 1
09115 - ROD SUB-ASSY, JACK HANDLE
09115-27040

YR2#,3#

 1
09116 - LEVER, JACK HANDLE
09116-35040

YR2#,3#

 1
09120 - BAG, TOOL
09120-12030

YR2#

 1
09150 - WRENCH, HUB NUT BOX
09150-40010

YR2#,3#

 1
