YR22LG-MDEA (1988)

Toyota Van

Production Aug 1988 - Jan 1990
Engine 4YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8808- )

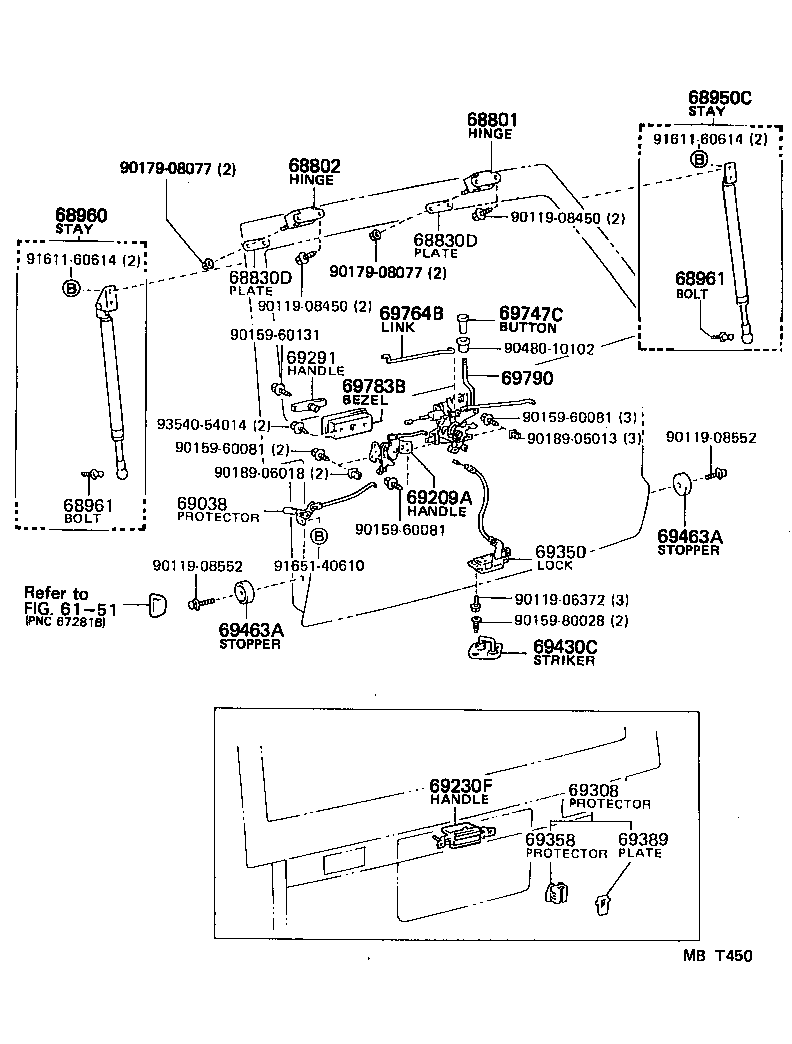

Click highlighted areas on diagram

diagram 6151 68801 68802 68830D 68830D 68950C 68960 68961 68961 69038 69209A 69230F 69291 69308 69350 69358 69389 69430C 69463A 69463A 69747C 69764B 69783B 69790 9011906372 9011908450 9011908450 9011908552 9011908552 9015960081 9015960081 9015960081 9015960131 9015980028 9017908077 9017908077 9018905013 9018906018 9048010102 9161160614 9161160614 9165140610 9354054014
Part # Description Qty Price
68801 - HINGE SUB-ASSY, BACK DOOR, UPPER RH
68801-87006

YR2#,3#

W(REAR WINDOW WIPER)

 1
68801-87005

YR2#,3#

 1
68802 - HINGE SUB-ASSY, BACK DOOR, UPPER LH
68801-87005

YR2#,3#

 1
68830D - PLATE, BACK DOOR HINGE
68715-87001

YR2#,3#

 2
68830D - PLATE, BACK DOOR HINGE
68715-87001

YR2#,3#

 2
68950C - STAY ASSY, BACK DOOR, RH
68950-29535

YR2#,3#..USA

 1
68950-29545

YR2#,3#..USA

COLD SPEC & W(REAR WINDOW WIPER)

 1
68960 - STAY ASSY, BACK DOOR, LH
68960-29215

YR2#,3#..USA

W(REAR WINDOW WIPER)

 1
68960-29205

YR2#,3#

 1
68961 - BOLT, BACK DOOR STAY
68961-28010

YR2#,3#

 2
68961 - BOLT, BACK DOOR STAY
68961-28010

YR2#,3#

 2
69230F - HANDLE ASSY, REAR DOOR OUTSIDE
69230-87008

YR22,31

 1
69230-87005

YR22,31

 1
69308 - PROTECTOR SUB-ASSY, BACK DOOR LOCK
69308-87001

YR2#,3#

 1
69350 - LOCK ASSY, BACK DOOR
69350-28011

YR2#,3#

 1
69358 - PROTECTOR, BACK DOOR LOCK
69358-87001

YR2#,3#

 1
69389 - PLATE, BACK DOOR LOCK
69389-87001

YR2#,3#

 1
69430C - STRIKER ASSY, BACK DOOR LOCK
69430-28010

YR2#,3#

 1
69463A - STOPPER, BACK DOOR MALE, LOWER
69463-87002

YR2#,3#

 2
69463A - STOPPER, BACK DOOR MALE, LOWER
69463-87002

YR2#,3#

 2
69764B - LINK, BACK DOOR LOCK CONTROL, RH
69764-87006

YR22,31..DLX;YR29,32..USA

 1
69790 - CONTROL ASSY, BACK DOOR LOCK
69790-28011

YR22,31..DLX;YR29,32..USA

 1
69790-28051

YR22,31..DLX;YR29,32..USA

W(POWER DOOR LOCK)

 1
Common parts
90119-06372
90119-08450
90119-08552
90159-60081
90159-60131
90159-80028
90179-08077
90189-05013
90189-06018
90480-10102
91611-60614
91651-40610
93540-54014
Linked diagrams
6151
