YR21LG-PQEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

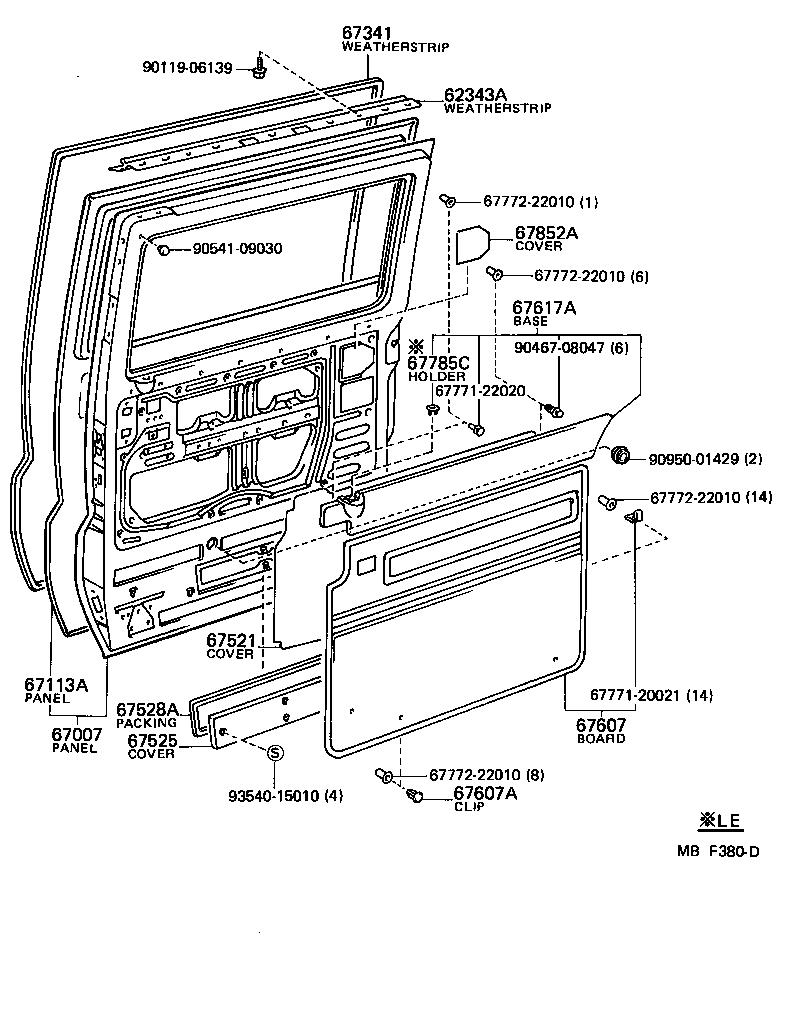

Click highlighted areas on diagram

diagram 62343A 67007 67113A 67341 67521 67525 67528A 67607 67607A 67617A 6777120021 6777122020 6777222010 6777222010 6777222010 6777222010 67785C 67852A 9011906139 9046708047 9054109030 9095001429 9354015010
Part # Description Qty Price
62343A - WEATHERSTRIP, SLIDE DOOR, NO.2
62343-87001

YR2#,3#

 1
67007 - PANEL SUB-ASSY, SLIDE DOOR, RH
67003-28050

YR21..LE

 1
67113A - PANEL, SLIDE DOOR, OUTER RH
67113-87001

YR2#

 1
67341 - WEATHERSTRIP, SLIDE DOOR, RH
67871-87001

YR2#,3#

 1
67521 - COVER SUB-ASSY, SLIDE DOOR PANEL, RH
67851-87002

YR2#,3#

 1
67525 - COVER, SLIDE DOOR PANEL, LOWER
67525-28010

YR2#,3#

 1
67528A - PACKING, SLIDE DOOR LOWER COVER
67528-87001

YR2#,3#

 1
67607 - BOARD SUB-ASSY, SLIDE DOOR TRIM, RH
67630-2804103

YR21..LE

GRAY,GRAY,TRIM1#

 1
67630-2804003

YR21..LE

GRAY,GRAY,TRIM1#

 1
67630-2804203

YR21..LE

GRAY,GRAY,TRIM1#

 1
67630-2804105

YR21..LE

BEIGE,BEIGE,TRIM4#

 1
67630-2804205

YR21..LE

BEIGE,BEIGE,TRIM4#

 1
67630-2804005

YR21..LE

BEIGE,BEIGE,TRIM4#

 1
67607A - CLIP(FOR SLIDE DOOR TRIM BOARD)
90467-1207824

YR21..LE

BLUE,BLUE,TRIM1#

 8
90467-1207803

YR21..LE

GRAY,GRAY,TRIM1#

 6
90467-1207805

YR21

BEIGE,BEIGE,TRIM4#

 8
90467-1207822

YR21

WINE,WINE,TRIM4#

 8
90467-1207805

YR21

BEIGE,BEIGE,TRIM4#

 6
67617A - BASE, REAR DOOR TRIM, RH
62035-2801015

YR21..LE

BEIGE,BEIGE,TRIM4#

 1
62035-2801005

YR21..LE

BEIGE,BEIGE,TRIM4#

 1
62035-2801003

YR21..LE

GRAY,GRAY,TRIM1#

 1
67785C - HOLDER, DOOR LOCKING BUTTON COLLAR(FOR SLIDE DOOR)
69751-87001

YR21,22,31..LE

 1
67852A - COVER, SLIDE DOOR SERVICE HOLE, NO.2
67852-87001

YR2#,3#

 1
Common parts
67771-20021
67771-22020
67772-22010
90119-06139
90467-08047
90541-09030
90950-01429
93540-15010
