YR21LG-PQEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

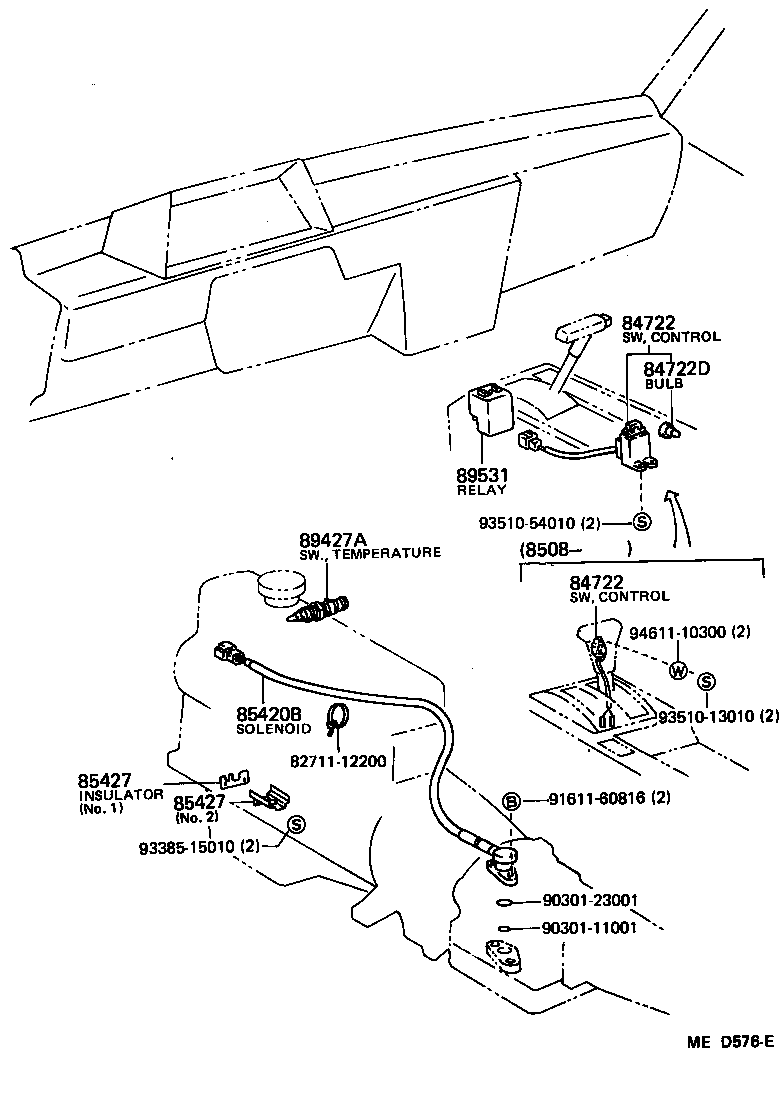

Click highlighted areas on diagram

diagram 8271112200 84722 84722 84722D 85420B 85427 85427 89427A 89531 9030111001 9030123001 9161160816 9338515010 9351013010 9351054010 9461110300
Part # Description Qty Price
84722 - SWITCH, TRANSMISSION CONTROL
84722-28020

YR2#..4FC

 1
84722-28010

YR2#..4FC

 1
84722 - SWITCH, TRANSMISSION CONTROL
84722-28020

YR2#..4FC

 1
84722-28010

YR2#..4FC

 1
84722D - BULB, TRANSMISSION CONTROL SWITCH
90981-11024

YR2#..4FC

12V 1.4W

 1
85420B - SOLENOID ASSY, TRANSMISSION
85420-28020

YR2#,3#..4FC

 1
89427A - SWITCH, TEMPERATURE
89428-20050

YR2#,3#..4FC

 1
89531 - RELAY, TRANSMISSION CONTROL
89531-28010

YR2#..4FC

 1
Common parts
82711-12200
90301-11001
90301-23001
91611-60816
93385-15010
93510-13010
93510-54010
94611-10300
