YR21LG-PQEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

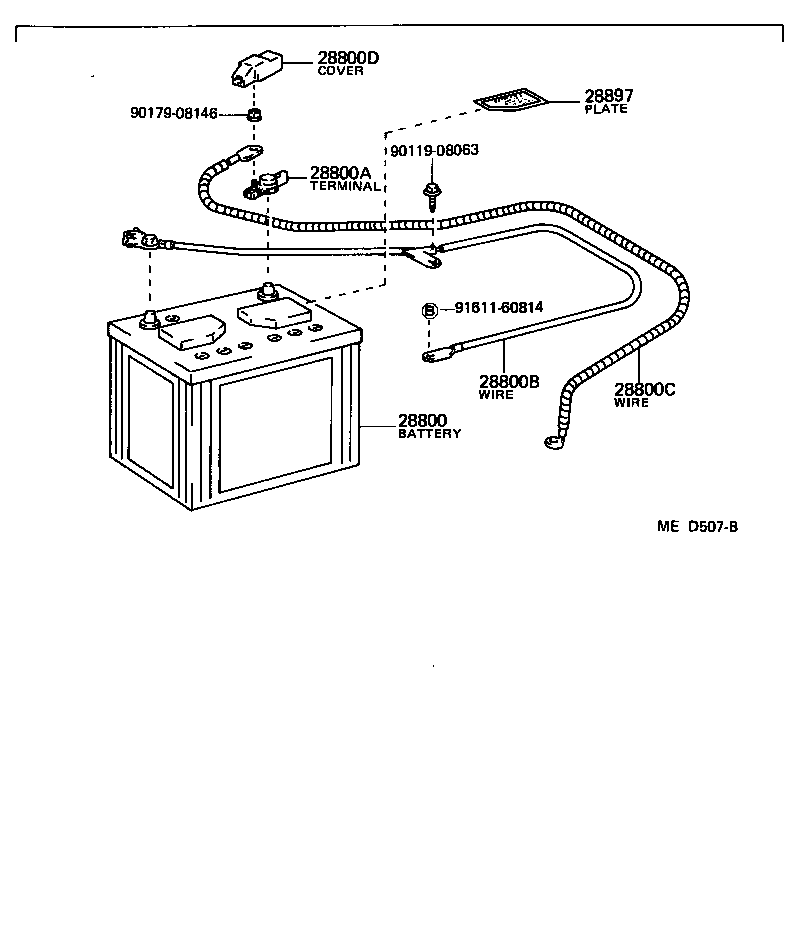

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 28897 9011908063 9017908146 9161160814
Part # Description Qty Price
28800 - BATTERY
28800-15010

3YEC..YR21;3YEC..YR27..USA

55D23R,55D23R-MF

 1
28800-14030

3YEC..YR21..USA

50D20R,50D20R-MF

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

3YEC,4YEC..YR2#,3#

 1
28800B - CABLE, BATTERY TO GROUND
82123-28010

3YEC..YR21;3YEC..YR27..USA

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-28010

3YEC..YR21;3YEC..YR27..USA

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-24010

3YEC,4YEC..YR2#,3#

 1
28897 - PLATE, BATTERY CAUTION
28898-26010

3YEC,4YEC..YR2#,3#..USA

 1
Common parts
90119-08063
90179-08146
91611-60814
