YR21LG-PQEA (1983)
Toyota Van
Production
Aug 1983
-
Aug 1985
Engine
3YEC
Transmission
4FC ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

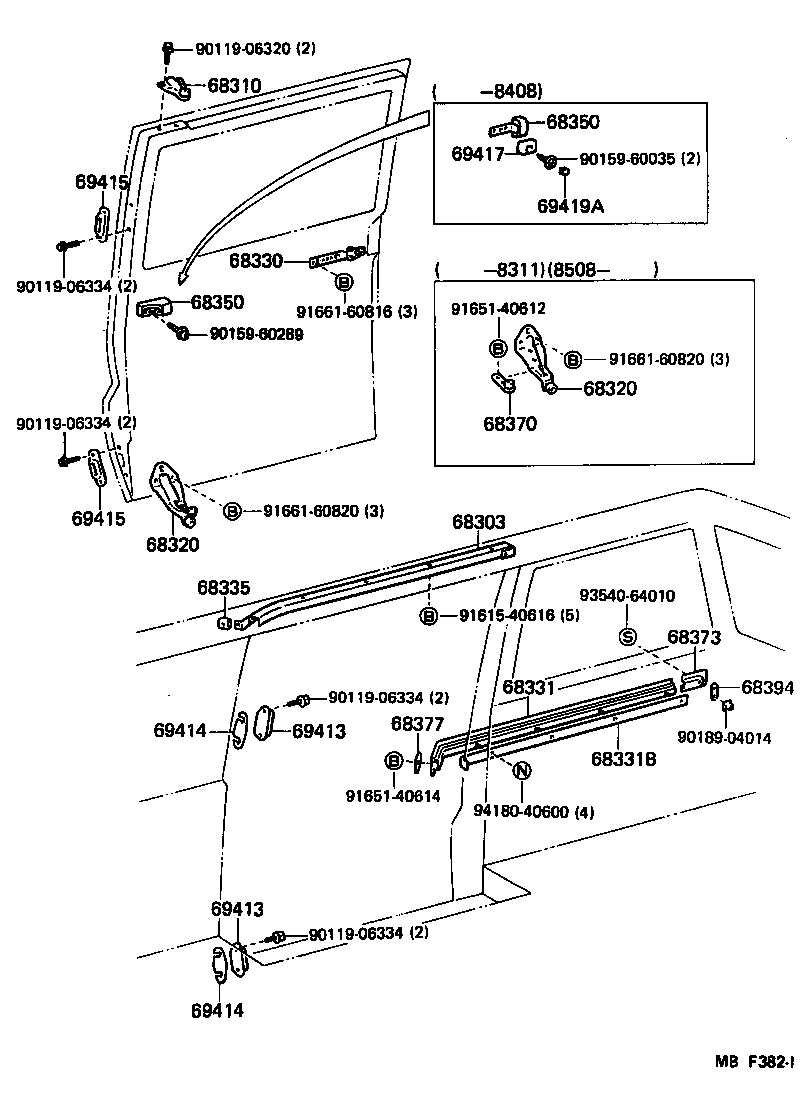

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 68303 - RAIL SUB-ASSY, SLIDE DOOR, UPPER | ||||
| 68308-87001 |
YR2#,3# |
1 | ||
| 68310 - ROLLER ASSY, SLIDE DOOR, UPPER | ||||
| 68310-87001 |
YR2#,3# |
1 | ||
| 68320 - ROLLER ASSY, SLIDE DOOR, LOWER | ||||
| 68350-87001 |
YR21 |
1 | ||
| 68350-87002 |
YR2# |
1 | ||
| 68320 - ROLLER ASSY, SLIDE DOOR, LOWER | ||||
| 68350-87001 |
YR21 |
1 | ||
| 68350-87002 |
YR2# |
1 | ||
| 68330 - ROLLER ASSY, SLIDE DOOR, CENTER | ||||
| 68330-87001 |
YR2# |
1 | ||
| 68331 - RAIL, SLIDE DOOR, CENTER | ||||
| 68303-87001 |
YR2#,3# |
1 | ||
| 68331B - PAD, SLIDE DOOR CENTER RAIL | ||||
| 68367-87002 |
YR2#,3# |
1 | ||
| 68335 - PAD, SLIDE DOOR UPPER RAIL | ||||
| 69243-87002 |
YR2#,3# |
1 | ||
| 68350 - STOPPER ASSY, SLIDE DOOR OPEN | ||||
| 69418-87001 |
YR2# |
1 | ||
| 68350 - STOPPER ASSY, SLIDE DOOR OPEN | ||||
| 69418-87001 |
YR2# |
1 | ||
| 68370 - ROLLER ASSY, SLIDE DOOR, LOWER SUB | ||||
| 68370-87001 |
YR21 |
1 | ||
| 68373 - MOULDING, SLIDE RAIL END, RH | ||||
| 68373-87001 |
YR2#,3# |
1 | ||
| 68377 - PAD, SLIDE DOOR CENTER RAIL, FRONT | ||||
| 68377-87001 |
YR2#,3# |
1 | ||
| 68394 - PROTECTOR, SLIDE RAIL END MOULDING | ||||
| 68394-87002 |
YR21 |
1 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-87001 |
YR21,22,31..LE |
1 | ||
| 69413 - STOP, SLIDE DOOR DOWN MALE | ||||
| 69416-87001 |
YR21,22,31..LE |
1 | ||
| 69414 - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
YR21,22,31..LE |
1 | ||
| 69414 - SHIM, SLIDE DOOR DOWN STOP MALE | ||||
| 69418-95700 |
YR21,22,31..LE |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-87001 |
YR21,22,31..LE |
1 | ||
| 69415 - STOPPER, SLIDE DOOR DOWN FEMALE | ||||
| 69415-87001 |
YR21,22,31..LE |
1 | ||
| 69417 - COVER, SLIDE DOOR OPEN STOP | ||||
| 69417-8700105 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 69417-8700103 |
YR21..LE GRAY,GRAY,TRIM1# |
1 | ||
| 69419A - PLUG, SLIDE DOOR OPEN STOP COVER | ||||
| 69419-8700105 |
YR2# BEIGE,BEIGE,TRIM4# |
1 | ||
| 69419-8700103 |
YR21..LE GRAY,GRAY,TRIM1# |
1 | ||
| Common parts | ||||
| 90119-06320 | ||||
| 90119-06334 | ||||
| 90159-60035 | ||||
| 90159-60289 | ||||
| 90189-04014 | ||||
| 91615-40616 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91661-60816 | ||||
| 91661-60820 | ||||
| 93540-64010 | ||||
| 94180-40600 | ||||
