YR21LG-PQEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308-8508)

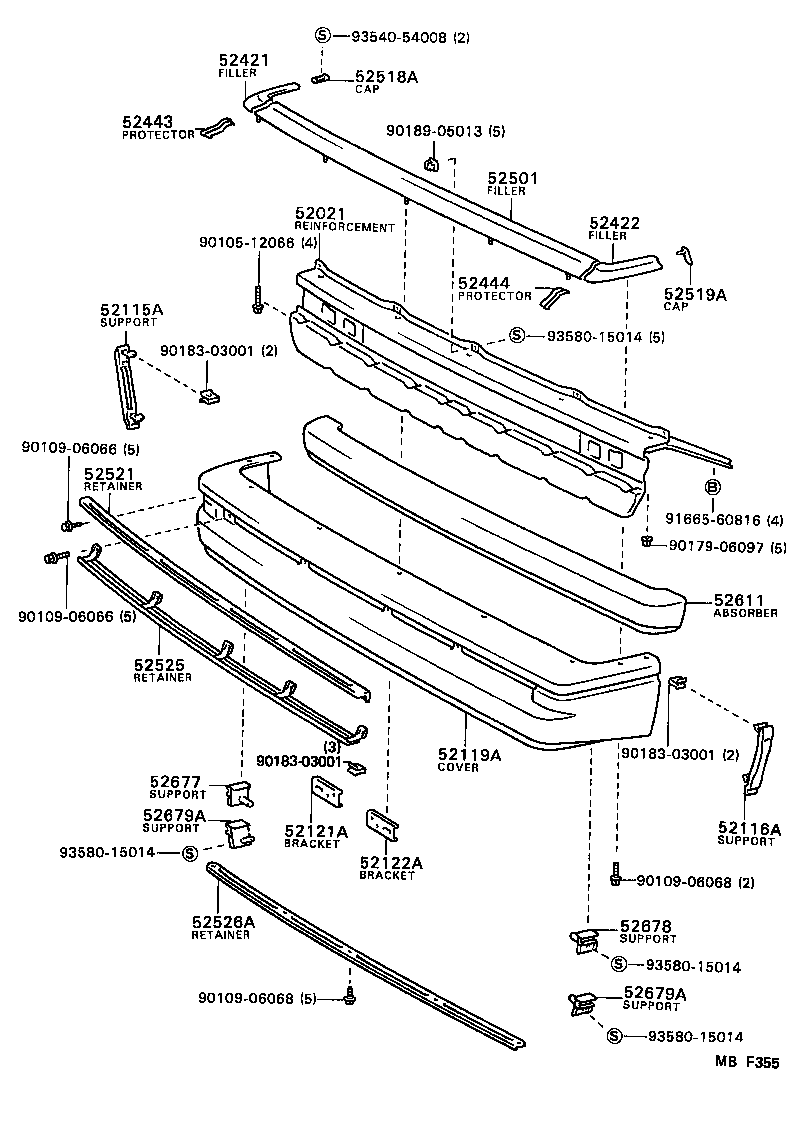

Click highlighted areas on diagram

diagram 52021 52115A 52116A 52119A 52121A 52122A 52421 52422 52443 52444 52501 52518A 52519A 52521 52525 52526A 52611 52677 52678 52679A 52679A 9010512066 9010906066 9010906066 9010906068 9010906068 9017906097 9018303001 9018303001 9018303001 9018905013 9166560816 9354054008 9358015014 9358015014 9358015014 9358015014
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-28010

YR2#

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52675-28010

YR2#

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52675-28010

YR2#

 1
52119A - COVER, FRONT BUMPER
52119-28900

YR21..LE

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-28010

YR2#,3#

 1
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52122-28020

YR2#,3#

 1
52421 - FILLER, FRONT BUMPER MOULDING, RH
52512-28010

YR2#

 1
52422 - FILLER, FRONT BUMPER MOULDING, LH
52513-28010

YR2#

 1
52443 - PROTECTOR, FRONT BUMPER, RH
52541-28010

YR2#

 1
52444 - PROTECTOR, FRONT BUMPER, LH
52542-28010

YR2#

 1
52501 - FILLER SUB-ASSY, FRONT BUMPER
52511-28010

YR2#

 1
52518A - CAP, FRONT BUMPER FILLER, RH
52518-28010

YR2#

 1
52519A - CAP, FRONT BUMPER FILLER, LH
52519-28010

YR2#

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-28010

YR2#

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-28010

YR2#

 1
52526A - RETAINER, FRONT BUMPER, LOWER NO.1
52526-28010

YR2#

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-28010

YR2#

 1
52677 - SUPPORT, FRONT BUMPER SIDE, NO.2, RH
52677-28010

YR2#,3#

 1
52678 - SUPPORT, FRONT BUMPER SIDE, NO.2, LH
52677-28010

YR2#,3#

 1
52679A - SUPPORT, FRONT BUMPER SIDE, NO.3
52679-28010

YR2#,3#

 2
52679A - SUPPORT, FRONT BUMPER SIDE, NO.3
52679-28010

YR2#,3#

 2
Common parts
90105-12066
90109-06066
90109-06068
90179-06097
90183-03001
90189-05013
91665-60816
93540-54008
93580-15014
