YR21LG-PDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

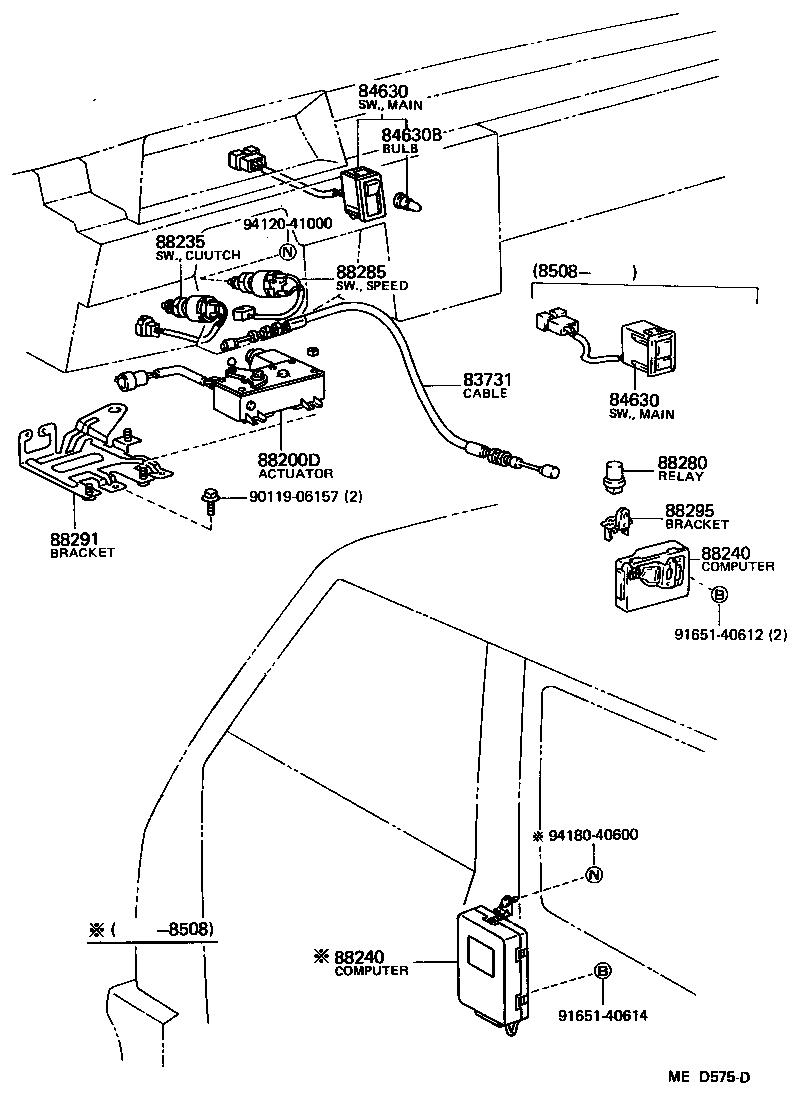

Click highlighted areas on diagram

diagram 83731 84630 84630 84630B 88200D 88235 88240 88240 88280 88285 88291 88295 9011906157 9165140612 9165140614 9412041000 9418040600
Part # Description Qty Price
83731 - CABLE, CRUISE CONTROL
83731-28020

YR21;YR27..USA

 1
83731-28020

YR2#

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-32020

YR2#

 1
84630-32020

YR21;YR27..USA

 1
84630 - SWITCH ASSY, CRUISE CONTROL MAIN
84630-32020

YR2#

 1
84630-32020

YR21;YR27..USA

 1
84630B - BULB(FOR CRUISE CONTROL SWITCH)
84999-10110

YR2#

12V 1.12W

 1
88200D - ACTUATOR ASSY, CRUISE CONTROL
88200-28040

YR2#

 1
88200-28040

YR21;YR27..USA

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-28030

YR21;YR27..USA

 1
88240-28030

YR2#

 1
88240 - COMPUTER ASSY, CRUISE CONTROL
88240-28030

YR21;YR27..USA

 1
88240-28030

YR2#

 1
88285 - SWITCH, CRUISE CONTROL
88282-28010

YR21;YR27..USA

 1
88291 - BRACKET, CRUISE CONTROL(AUTO DRIVE), NO.1
88291-28010

YR21;YR27..USA

 1
Common parts
90119-06157
91651-40612
91651-40614
94120-41000
94180-40600
