YR21LG-PDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

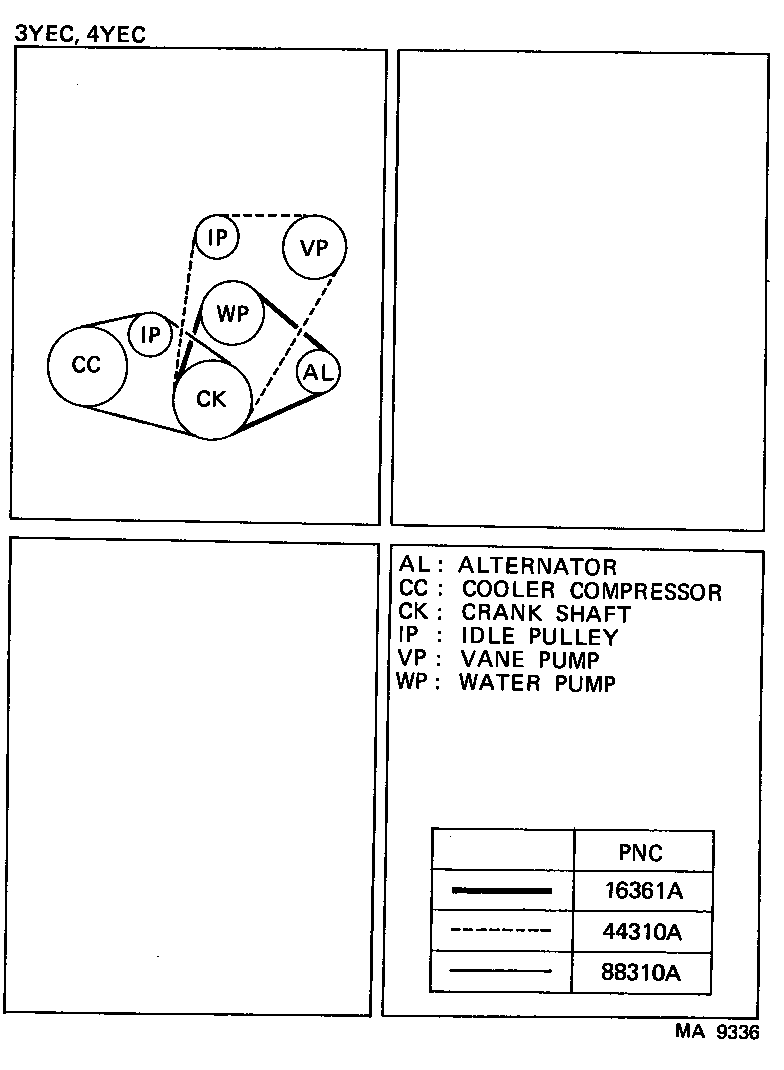

diagram 16361A 44310A 88310A
Part # Description Qty Price
16361A - BELT, V(FOR FAN & ALTERNATOR)
99365-50820

3YEC,4YEC..YR2#,3#

 1
44310A - BELT, V(FOR VANE PUMP)
99332-01055

YR2#,3#

L=1055

 1
88310A - BELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
99332-00910

YR21;YR27..USA

 1
99332-00905

YR21;YR27..USA

 1
