YR21LG-PDEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 4FC ATM
Displacement 2500cc
Power 168 HP (125 kW)

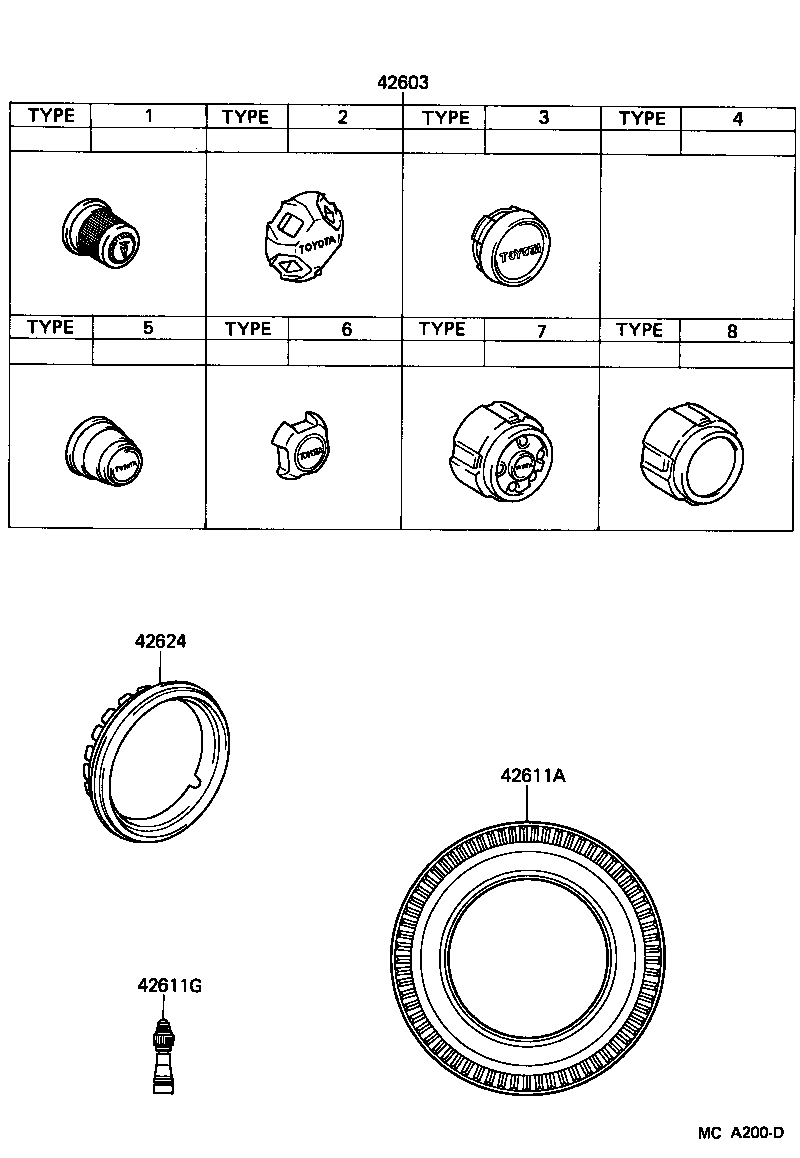

ILLUST NO. 1 OF 2(8308- )

Click highlighted areas on diagram

diagram 42603 42611A 42611G 42624
Part # Description Qty Price
42603 - ORNAMENT SUB-ASSY, WHEEL HUB
42603-14161

YR21

TYPE 2,W/ALUMI WHEEL

 4
42603-22140

YR21

TYPE 3,W/ALUMI WHEEL

 4
42603-28030

YR2#

TYPE 1

 4
42611A - TIRE TUBE SET OR TUBELESS TIRE
42652-28050

YR2#

P185/75R14

 5
42611G - VALVE (FOR TUBELESS TIRE)
90942-05009

YR2#,3#

 5

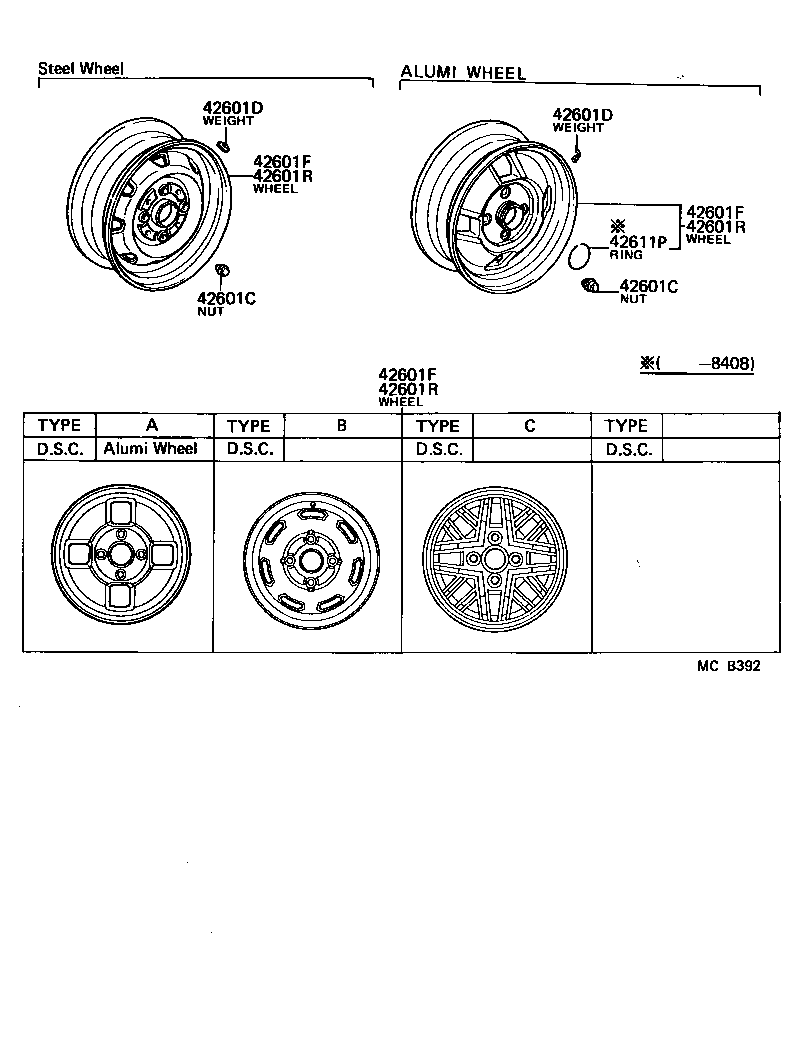

ILLUST NO. 2 OF 2(8308- )

Click highlighted areas on diagram

diagram 42601C 42601C 42601D 42601D 42601F 42601F 42601F 42601R 42601R 42601R 42611P
Part # Description Qty Price
42601C - NUT, HUB (FOR AXLE)
90942-01027

YR2#

 16
90942-01042

YR21

W/ALUMI WHEEL

 16
42601C - NUT, HUB (FOR AXLE)
90942-01027

YR2#

 16
90942-01042

YR21

W/ALUMI WHEEL

 16
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03031

YR2#,3#

80G,T=9.5,80G

 1
90942-03020

YR2#,3#

30G,T=10,30G

 1
90942-03027

YR2#,3#

60G,T=9.5,60G

 1
90942-03093

YR21,22,29

20G,20G,W/ALUMI WHEEL

 1
90942-03025

YR2#,3#

50G,T=9.5,50G

 1
90942-03092

YR21,22,29

10G,10G,W/ALUMI WHEEL

 1
90942-03095

YR21,22,29

40G,40G,W/ALUMI WHEEL

 1
90942-03094

YR21,22,29

30G,30G,W/ALUMI WHEEL

 1
90942-03017

YR2#,3#

20G,T=8,20G

 1
90942-03029

YR2#,3#

70G,T=9.5,70G

 1
90942-03041

YR2#,3#

10G,T=7.5,10G

 1
90942-03022

YR2#,3#

40G,T=9.5,40G

 1
90942-03097

YR21,22,29

60G,60G,W/ALUMI WHEEL

 1
90942-03096

YR21,22,29

50G,50G,W/ALUMI WHEEL

 1
42601D - WEIGHT, BALANCE (FOR DISC WHEEL)
90942-03031

YR2#,3#

80G,T=9.5,80G

 1
90942-03020

YR2#,3#

30G,T=10,30G

 1
90942-03027

YR2#,3#

60G,T=9.5,60G

 1
90942-03093

YR21,22,29

20G,20G,W/ALUMI WHEEL

 1
90942-03025

YR2#,3#

50G,T=9.5,50G

 1
90942-03092

YR21,22,29

10G,10G,W/ALUMI WHEEL

 1
90942-03095

YR21,22,29

40G,40G,W/ALUMI WHEEL

 1
90942-03094

YR21,22,29

30G,30G,W/ALUMI WHEEL

 1
90942-03017

YR2#,3#

20G,T=8,20G

 1
90942-03029

YR2#,3#

70G,T=9.5,70G

 1
90942-03041

YR2#,3#

10G,T=7.5,10G

 1
90942-03022

YR2#,3#

40G,T=9.5,40G

 1
90942-03097

YR21,22,29

60G,60G,W/ALUMI WHEEL

 1
90942-03096

YR21,22,29

50G,50G,W/ALUMI WHEEL

 1
42601F - WHEEL, DISC (FOR FRONT)
42611-22290

YR21

14X5.5JJ,5.5JJ-14,ALUMI

 2
42601-28050

YR21

5.5JJ-14,ALUMI,MARK L

 2
42611-14280

YR2#

14X5.5J,5.5J-14

 2
42611-12790

YR21

14X5.5JJ,5.5JJ-14,ALUMI,TOPY

 2
42601-14012

YR21

5.5JJ-14,ALUMI,NO MARK

 2
42601F - WHEEL, DISC (FOR FRONT)
42611-22290

YR21

14X5.5JJ,5.5JJ-14,ALUMI

 2
42601-28050

YR21

5.5JJ-14,ALUMI,MARK L

 2
42611-14280

YR2#

14X5.5J,5.5J-14

 2
42611-12790

YR21

14X5.5JJ,5.5JJ-14,ALUMI,TOPY

 2
42601-14012

YR21

5.5JJ-14,ALUMI,NO MARK

 2
42601F - WHEEL, DISC (FOR FRONT)
42611-22290

YR21

14X5.5JJ,5.5JJ-14,ALUMI

 2
42601-28050

YR21

5.5JJ-14,ALUMI,MARK L

 2
42611-14280

YR2#

14X5.5J,5.5J-14

 2
42611-12790

YR21

14X5.5JJ,5.5JJ-14,ALUMI,TOPY

 2
42601-14012

YR21

5.5JJ-14,ALUMI,NO MARK

 2
42601R - WHEEL, DISC (FOR REAR)
42601-14012

YR21

5.5JJ-14,ALUMI,NO MARK

 2
42611-22290

YR21

14X5.5JJ,5.5JJ-14,ALUMI

 2
42611-12790

YR21

14X5.5JJ,5.5JJ-14,ALUMI,TOPY

 2
42611-14280

YR2#

14X5.5J,5.5J-14

 3
42601-28050

YR21

5.5JJ-14,ALUMI,MARK L

 2
42601R - WHEEL, DISC (FOR REAR)
42601-14012

YR21

5.5JJ-14,ALUMI,NO MARK

 2
42611-22290

YR21

14X5.5JJ,5.5JJ-14,ALUMI

 2
42611-12790

YR21

14X5.5JJ,5.5JJ-14,ALUMI,TOPY

 2
42611-14280

YR2#

14X5.5J,5.5J-14

 3
42601-28050

YR21

5.5JJ-14,ALUMI,MARK L

 2
42601R - WHEEL, DISC (FOR REAR)
42601-14012

YR21

5.5JJ-14,ALUMI,NO MARK

 2
42611-22290

YR21

14X5.5JJ,5.5JJ-14,ALUMI

 2
42611-12790

YR21

14X5.5JJ,5.5JJ-14,ALUMI,TOPY

 2
42611-14280

YR2#

14X5.5J,5.5J-14

 3
42601-28050

YR21

5.5JJ-14,ALUMI,MARK L

 2
42611P - RING, SET
90522-64001

YR21

 5
