YR21LG-MQEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

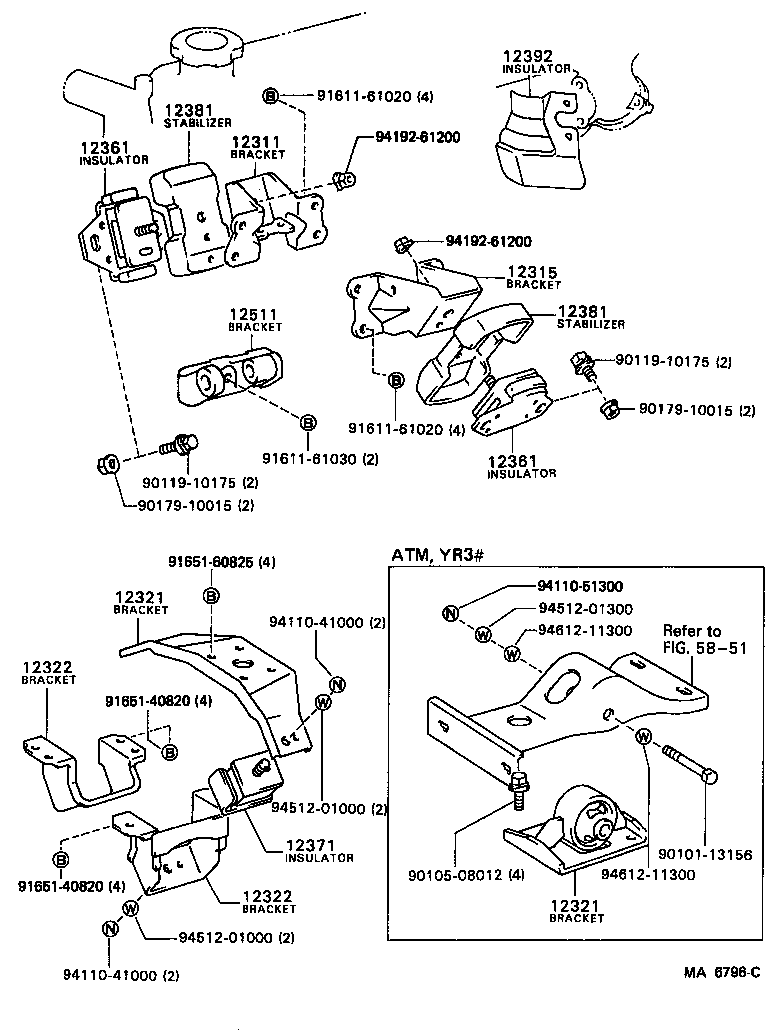

Click highlighted areas on diagram

diagram 12311 12315 12321 12321 12322 12322 12361 12361 12371 12381 12381 12392 12511 5851 9010113156 9010508012 9011910175 9011910175 9017910015 9017910015 9161161020 9161161020 9161161030 9165140820 9165140820 9165160825 9411041000 9411041000 9411051300 9419261200 9419261200 9451201000 9451201000 9451201300 9461211300 9461211300
Part # Description Qty Price
12311 - BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12311-71010

3YEC,4YEC..YR2#,3#

 1
12315 - BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12315-71010

3YEC,4YEC..YR2#,3#

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-71020

3YEC,4YEC..YR2#..5F

 1
12321 - BRACKET, ENGINE MOUNTING, REAR, NO.1
12321-71020

3YEC,4YEC..YR2#..5F

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13030

3YEC,4YEC..YR2#..5F

RH

 1
12326-13010

3YEC,4YEC..YR2#..5F

LH

 1
12322 - BRACKET, ENGINE MOUNTING, REAR NO.2
12322-13030

3YEC,4YEC..YR2#..5F

RH

 1
12326-13010

3YEC,4YEC..YR2#..5F

LH

 1
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38120

3YEC..YR2#

MARUYASU

 2
12361-38130

3YEC..YR2#

TOYO GOMU

 2
12361 - INSULATOR, ENGINE MOUNTING, FRONT
12361-38120

3YEC..YR2#

MARUYASU

 2
12361-38130

3YEC..YR2#

TOYO GOMU

 2
12371 - INSULATOR, ENGINE MOUNTING, REAR NO.1
12371-13051

3YEC,4YEC..YR2#..5F

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

3YEC..YR2#

 2
12381 - STABILIZER, ENGINE MOUNTING
12381-73010

3YEC..YR2#

 2
12392 - INSULATOR, ENGINE MOUNTING HEAT, FRONT LH
12391-72010

3YEC,4YEC..YR2#,3#

 1
12511 - BRACKET, ALTERNATOR, NO.1
12501-73010

3YEC..YR2#

 1
Common parts
90101-13156
90105-08012
90119-10175
90179-10015
91611-61020
91611-61030
91651-40820
91651-60825
94110-41000
94110-51300
94192-61200
94512-01000
94512-01300
94612-11300
Linked diagrams
5851
