YR21LG-MQEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

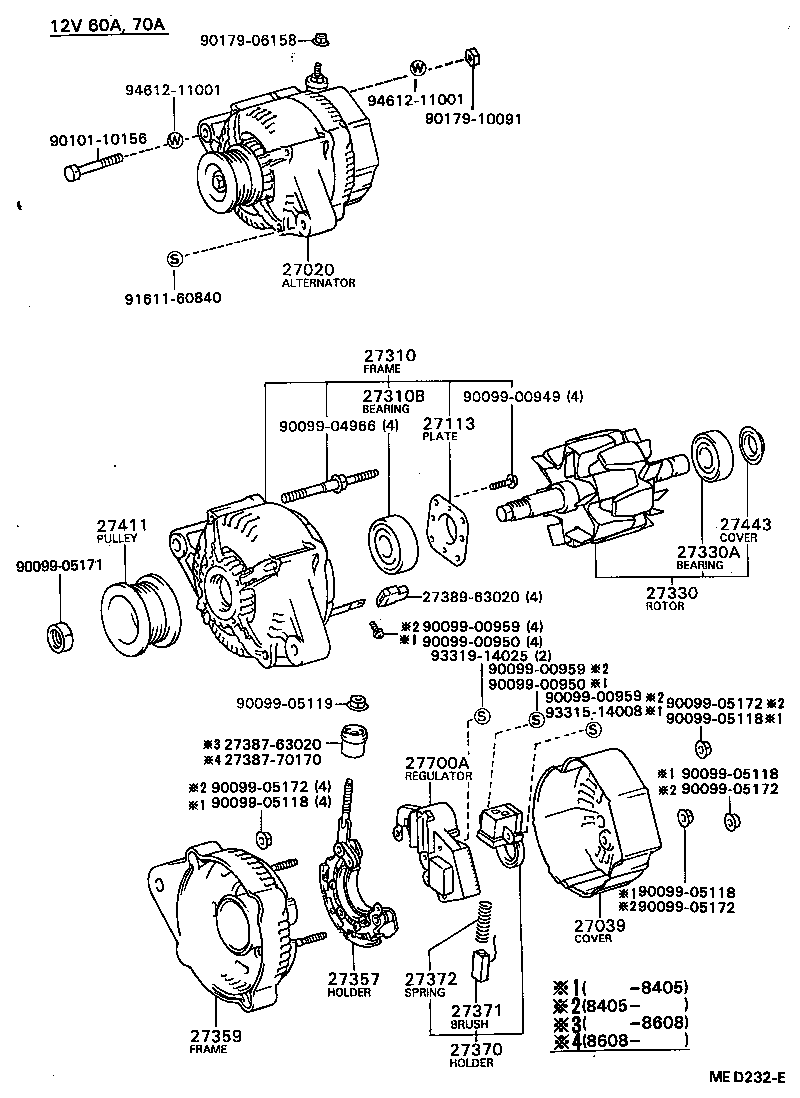

Click highlighted areas on diagram

diagram 27020 27039 27113 27310 27310B 27330 27330A 27357 27359 27370 27371 27372 2738763020 2738770170 2738963020 27411 27443 27700A 9009900949 9009900950 9009900950 9009900959 9009900959 9009900959 9009904966 9009905118 9009905118 9009905118 9009905118 9009905119 9009905171 9009905172 9009905172 9009905172 9009905172 9010110156 9017906158 9017910091 9161160840 9331514008 9331914025 9461211001 9461211001
Part # Description Qty Price
27020 - ALTERNATOR ASSY
27060-72050

3YEC..YR2#

12V 60A

 1
27060-72010

3YEC..YR2#

12V 60A

 1
27060-72060

3YEC..YR2#

12V 60A,12V 60A

 1
27039 - COVER, ALTERNATOR REAR END
27039-72010

3YEC,4YEC..YR2#,3#

12V 60A,70A

 1
27113 - PLATE, BEARING RETAINER, ALTERNATOR
27312-63020

3YEC..YR2#

12V 60A

 1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-72090

3YEC..YR2#

12V 60A

 1
27310-43100

3YEC..YR2#

12V 60A

 1
27310-72010

3YEC..YR21

12V 60A

 1
27310-72050

3YEC..YR2#

12V 60A

 1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10156

3YEC..YR2#

12V 60A

 1
90099-10141

3YEC..YR21

12V 60A

 1
90099-10152

3YEC..YR2#

12V 60A

 1
90099-10161

3YEC..YR2#

12V 60A

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-63021

3YEC..YR2#

12V 60A

 1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140

3YEC,4YEC..YR2#,3#

12V 60A,70A

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020

3YEC,4YEC..YR2#,3#

12V 60A,70A

 1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16010

3YEC..YR2#

12V 60A

 1
27370 - HOLDER ASSY, ALTERNATOR BRUSH
27370-63021

3YEC..YR2#

12V 60A

 1
27370-16010

3YEC..YR2#

12V 60A

 1
27371 - BRUSH, ALTERNATOR
27371-63020

3YEC,4YEC..YR2#,3#

12V 60A,70A

 1
27372 - SPRING, ALTERNATOR BRUSH
27372-72100

3YEC,4YEC..YR2#,3#

12V 60A,70A

 1
27411 - PULLEY, ALTERNATOR
27411-72010

3YEC..YR2#

12V 60A

 1
27411-72100

3YEC..YR2#

12V 60A

 1
27443 - COVER, ALTERNATOR BEARING
27443-63020

3YEC,4YEC..YR2#,3#

12V 60A,70A

 1
27700A - REGULATOR ASSY, GENERATOR
27700-63021

3YEC..YR2#

12V 60A

 1
27700-72040

3YEC..YR2#

12V 60A

 1
Common parts
27387-63020
27387-70170
27389-63020
90099-00949
90099-00950
90099-00959
90099-04966
90099-05118
90099-05119
90099-05171
90099-05172
90101-10156
90179-06158
90179-10091
91611-60840
93315-14008
93319-14025
94612-11001
