YR21LG-MDEK (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

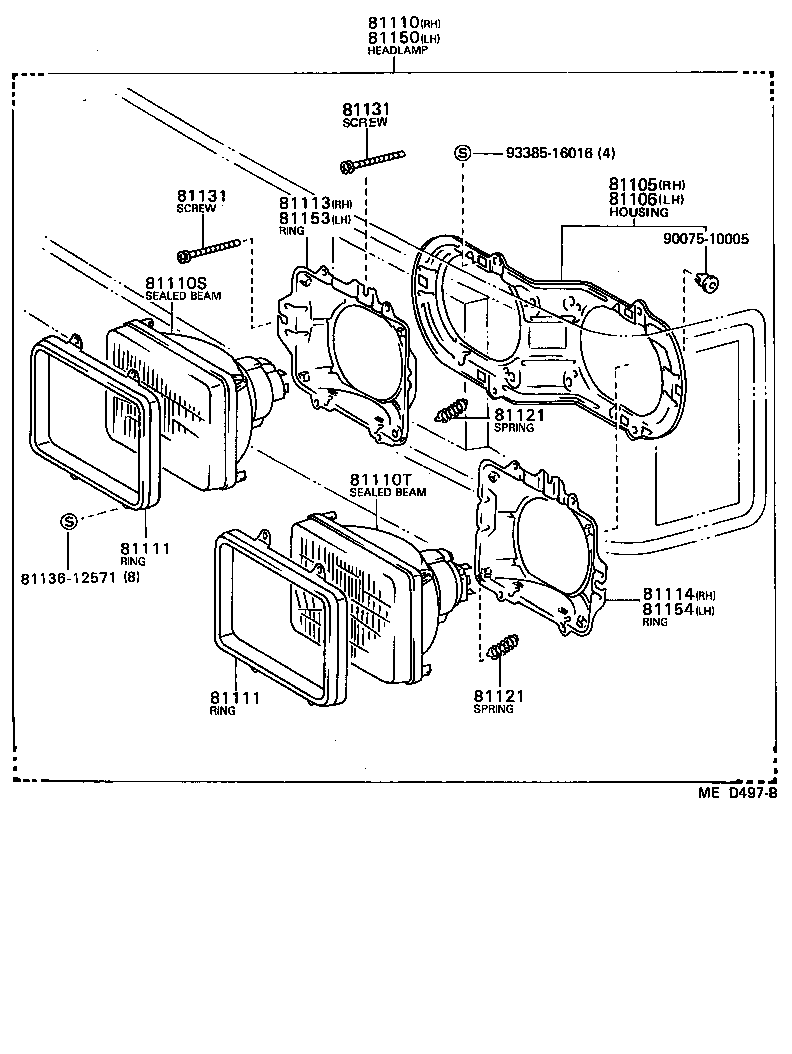

Click highlighted areas on diagram

diagram 81105 81106 81110 81110S 81110T 81111 81111 81113 81114 81121 81121 81131 81131 8113612571 81150 81153 81154 9007510005 9338516016
Part # Description Qty Price
81105 - HOUSING SUB-ASSY, HEADLAMP, RH
81105-87010

YR2#

 1
81106 - HOUSING SUB-ASSY, HEADLAMP, LH
81106-87010

YR2#

 1
81110 - HEADLAMP ASSY, RH
81110-80364

YR2#..DLX,STD

 1
81110-80365

YR21

HALOGEN

 1
81110S - SEALED BEAM UNIT, NO.1
90981-05028

YR21,22,31

12V 50W,*HAL,*WB,12V 50W,HALOGEN

 2
81110T - SEALED BEAM UNIT, NO.2
90981-05033

YR21,22,31

12V 40/60W,*HAL,*WB,12V 40/60W,HALOGEN

 2
81111 - RING, SEALED BEAM RETAINING
81111-20360

YR2#

 4
81111 - RING, SEALED BEAM RETAINING
81111-20360

YR2#

 4
81113 - RING, SEALED BEAM MOUNTING, NO.1 RH
81113-87011

YR2#,3#

 1
81114 - RING, SEALED BEAM MOUNTING, NO.2 RH
81114-87011

YR2#,3#

 1
81121 - SPRING, HEADLAMP TENSION
81121-14320

YR2#,3#

 4
81121 - SPRING, HEADLAMP TENSION
81121-14320

YR2#,3#

 4
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

YR2#

 8
81131 - SCREW, HEADLAMP ADJUSTING
81131-28050

YR2#

 8
81150 - HEADLAMP ASSY, LH
81150-80359

YR21

HALOGEN

 1
81150-80358

YR2#..DLX,STD

 1
81153 - RING, SEALED BEAM MOUNTING, NO.1 LH
81153-87011

YR2#,3#

 1
81154 - RING, SEALED BEAM MOUNTING, NO.2 LH
81154-87011

YR2#,3#

 1
Common parts
81136-12571
90075-10005
93385-16016
