YR21LG-MDEK (1983)
Toyota Van
Production
Aug 1983
-
Aug 1985
Engine
3YEC
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )5F

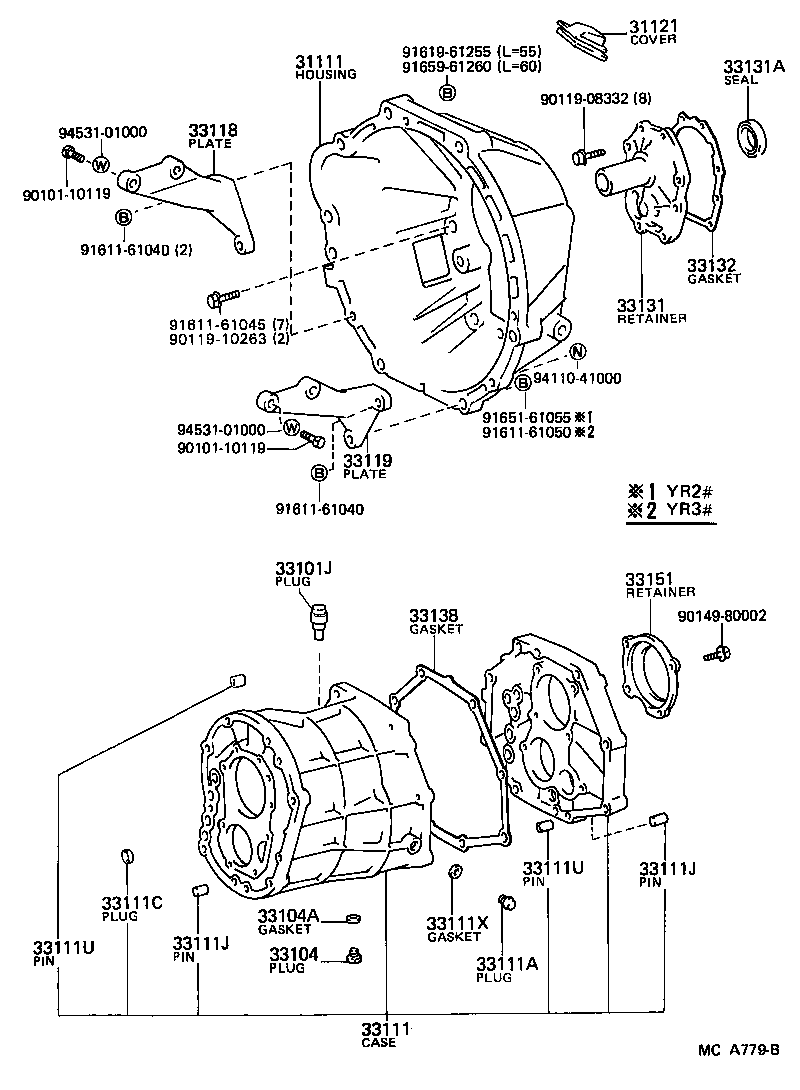

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-30180 |
YR2#..5F |
1 | ||
| 33101J - PLUG, BREATHER | ||||
| 90930-03085 |
YR2#,3#..5F |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18057 |
YR2#..5F |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18007 |
YR2#..5F |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-28010 |
YR2#..5F |
1 | ||
| 33111A - PLUG, MANUAL TRANSMISSION CASE | ||||
| 90341-18006 |
YR2#,3#..5F |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
YR2#,3#..5F OD=14 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
YR2#,3#..5F L=16,OD=12 |
4 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
YR2#,3#..5F L=16,OD=12 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
YR2#,3#..5F L=14,OD=15,L=14,OD=15 |
2 | ||
| 90253-11001 |
YR2#,3#..5F L=11,OD=11,L=11,OD=11 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
YR2#,3#..5F L=14,OD=15,L=14,OD=15 |
2 | ||
| 90253-11001 |
YR2#,3#..5F L=11,OD=11,L=11,OD=11 |
2 | ||
| 33111X - GASKET, TRANSMISSION CASE PLUG | ||||
| 90430-18007 |
YR2#..5F |
1 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-28010 |
YR21..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-28010 |
YR21..5F |
1 | ||
| 33119-28020 |
YR2#..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33131-28010 |
YR2#..5F |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-30115 |
YR2#,3#..5F |
1 | ||
| 33132 - GASKET, FRONT BEARING RETAINER(MTM) | ||||
| 33132-28010 |
YR2#,3#..5F |
1 | ||
| 33138 - GASKET, INTERMEDIATE PLATE | ||||
| 33138-28010 |
YR2#,3#..5F |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-28010 |
YR2#,3#..5F |
1 | ||
| Common parts | ||||
| 90101-10119 | ||||
| 90119-08332 | ||||
| 90119-10263 | ||||
| 90149-80002 | ||||
| 91611-61040 | ||||
| 91611-61045 | ||||
| 91611-61050 | ||||
| 91619-61255 | ||||
| 91651-61055 | ||||
| 91659-61260 | ||||
| 94110-41000 | ||||
| 94531-01000 | ||||
