YR21LG-MDEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

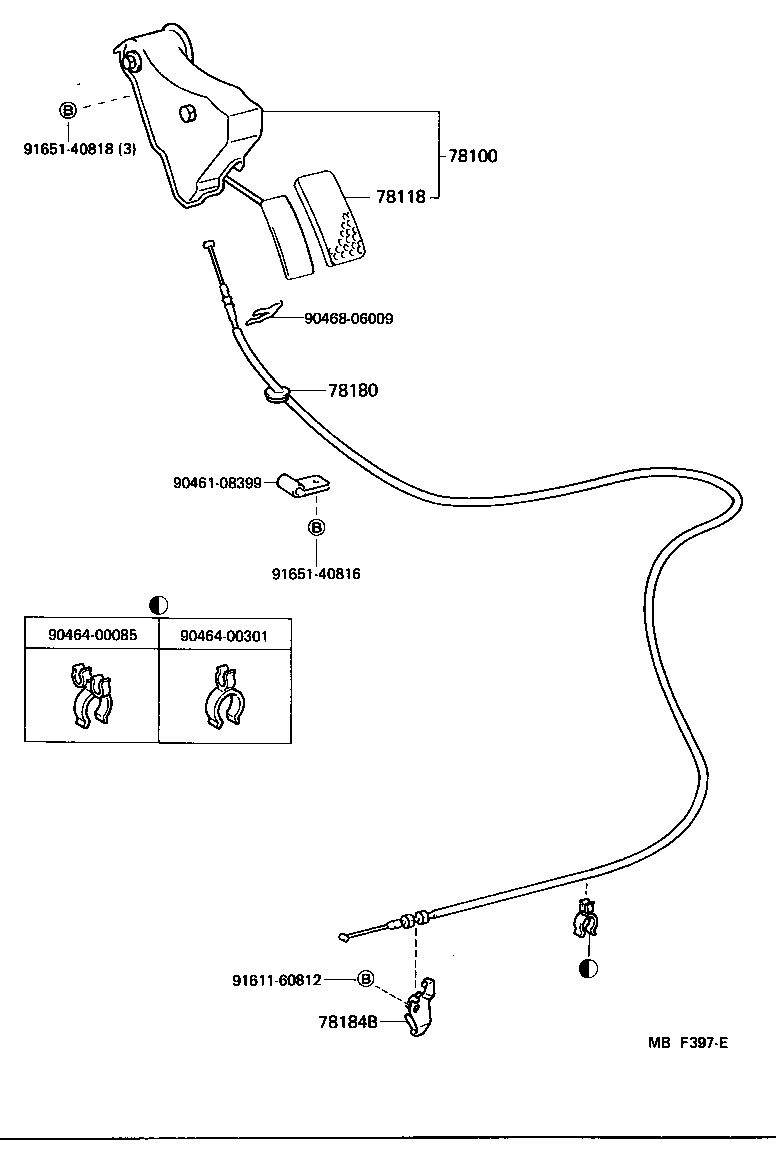

Click highlighted areas on diagram

diagram 78100 78118 78180 78184B 9046108399 9046400085 9046400301 9046806009 9161160812 9165140816 9165140818
Part # Description Qty Price
78100 - LINK ASSY, ACCELERATOR
78105-28030

YR2#

 1
78118 - PAD, ACCELERATOR PEDAL
78119-95700

YR2#,3#

 1
78180 - WIRE ASSY, ACCELERATOR
78180-28030

YR2#,3#

 1
78184B - BRACKET, ACCELERATOR CONTROL CABLE
78184-87005

YR2#,3#

 1
Common parts
90461-08399
90464-00085
90464-00301
90468-06009
91611-60812
91651-40816
91651-40818
