YR21LG-MDEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

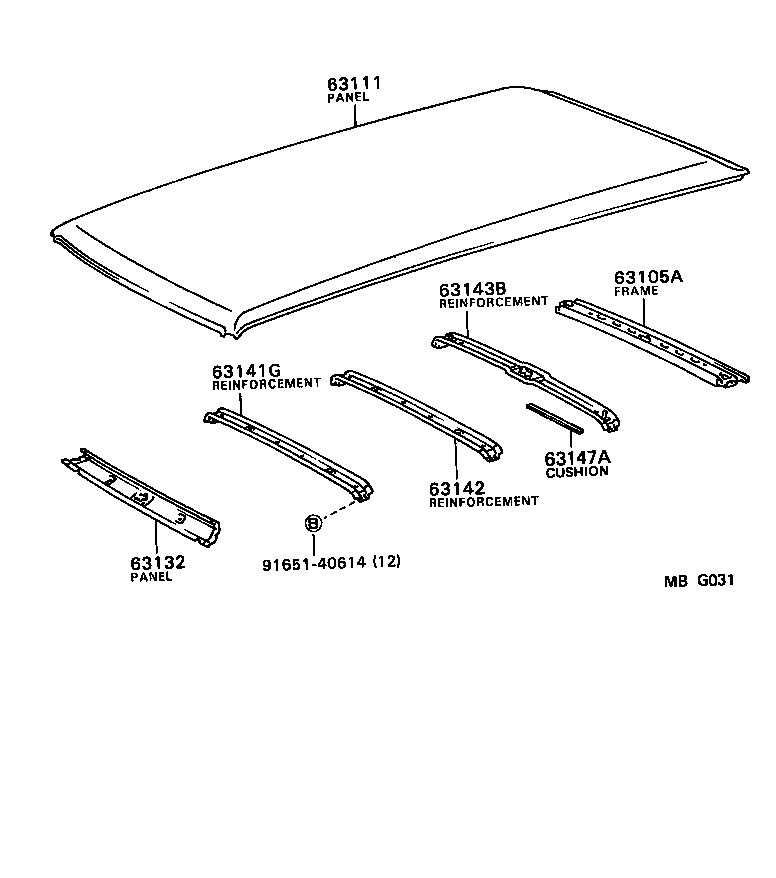

diagram 63105A 63111 63132 63141G 63142 63143B 63147A 9165140614
Part # Description Qty Price
63105A - FRAME SUB-ASSY, BACK DOOR OPENING
63105-87003

YR21,22,31

 1
63111 - PANEL, ROOF
63111-28010

YR2#,3#

 1
63132 - PANEL, WINDSHIELD HEADER, INNER
63132-87004

YR2#,3#

 1
63141G - REINFORCEMENT, ROOF PANEL, NO.1
63141-87009

YR2#,3#

 1
63142 - REINFORCEMENT, ROOF PANEL, NO.2
63141-87009

YR2#,3#

 1
63143B - REINFORCEMENT, ROOF PANEL, NO.3
63143-87003

YR2#,3#

 1
Common parts
91651-40614
