YR21LG-MDEA (1983)

Toyota Van

Production Aug 1983 - Aug 1985
Engine 3YEC
Transmission 5F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )YR2#

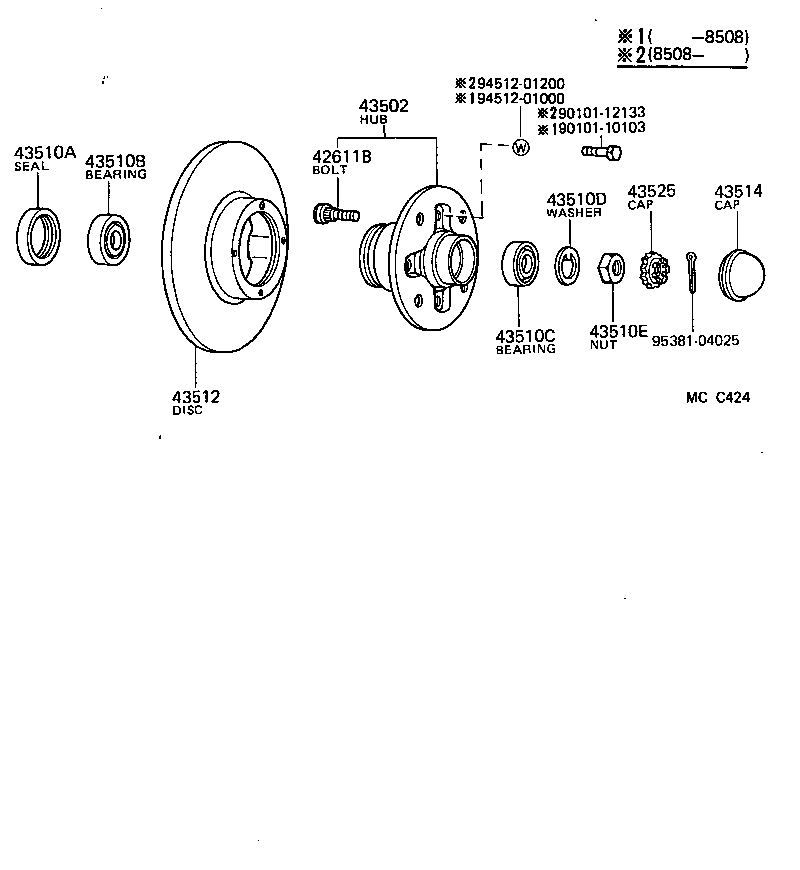

Click highlighted areas on diagram

diagram 42611B 43502 43510A 43510B 43510C 43510D 43510E 43512 43514 43525 9010110103 9010112133 9451201000 9451201200 9538104025
Part # Description Qty Price
42611B - BOLT, HUB (FOR FRONT AXLE)
90942-02036

YR21

 8
43502 - HUB SUB-ASSY, FRONT AXLE
43502-20010

YR2#

 2
43510A - SEAL, OIL (FOR FRONT AXLE HUB)
90311-48001

YR2#

 2
43510B - BEARING, TAPERED ROLLER (FOR FRONT AXLE INNER BEARING)
90368-31067

YR2#

 2
43510C - BEARING, TAPERED ROLLER (FOR FRONT AXLE OUTER BEARING)
90368-19037

YR2#

 2
43510D - WASHER, CLAW (FOR STEERING KNUCKLE WASHER)
90214-20005

YR2#

 2
43510E - NUT (FOR STEERING KNUCKLE)
90170-19185

YR2#

 2
43512 - DISC, FRONT
43512-28030

YR2#

 2
43514 - CAP, FRONT HUB GREASE
43514-27010

YR2#

 2
43525 - CAP, FRONT WHEEL ADJUSTING LOCK
43525-22010

YR2#

 2
Common parts
90101-10103
90101-12133
94512-01000
94512-01200
95381-04025
