NSP110R-AHFRKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - May 2014
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0901- )RHD

Click highlighted areas on diagram

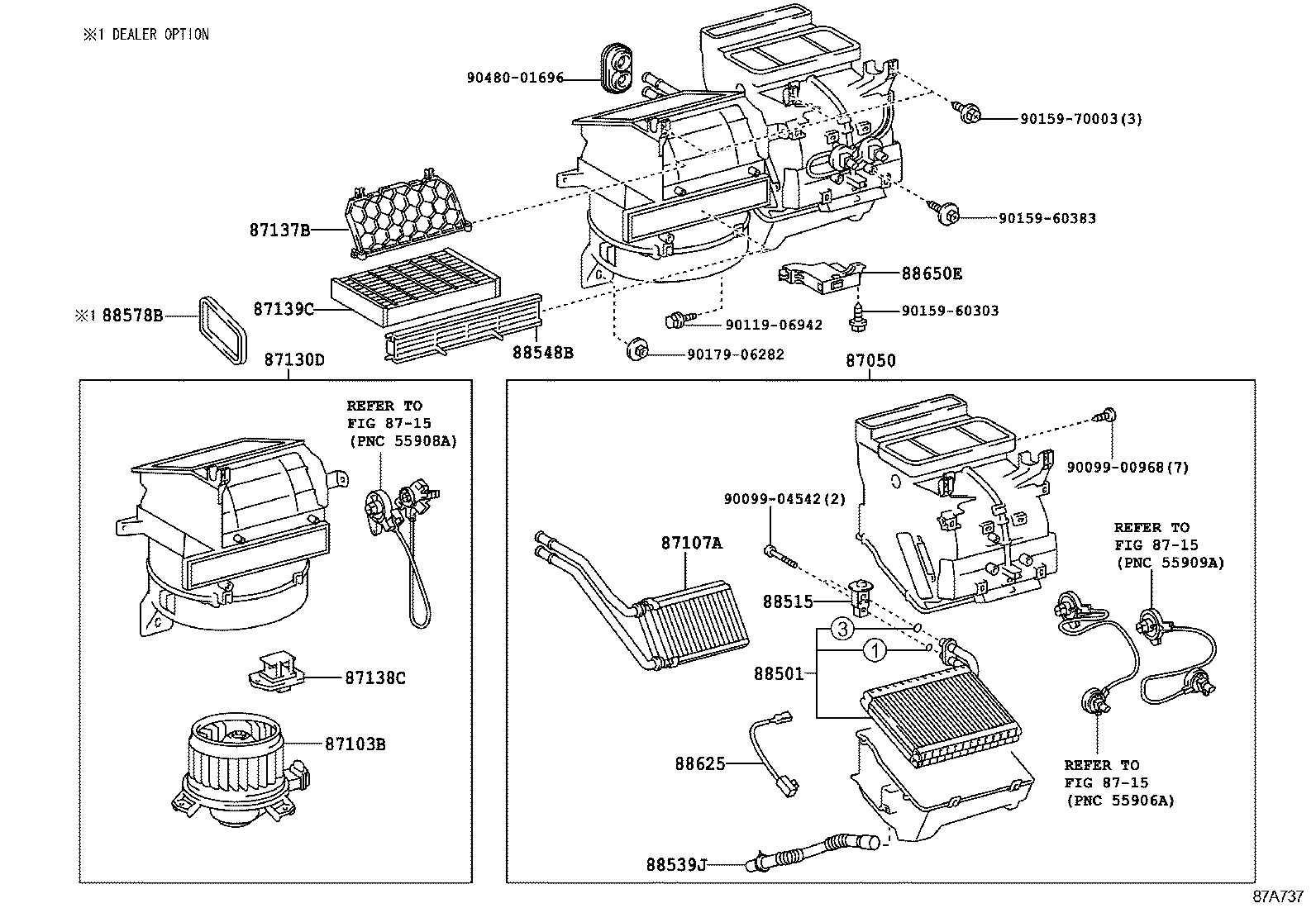

MANUAL AIR CONDITIONER

diagram 87050 87103B 87107A 87130D 87137B 87138C 87139C 8715 8715 8715 88501 88515 88539J 88548B 88578B 88625 88650E 9009900968 9009904542 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52012

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52012

NLP11#,NSP110..RHD..R

 1
87050-52020

NLP11#,NSP110..RHD..N

 1
87050-52051

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52131

NLP11#,NSP110..RHD..R

 1
87050-52141

NLP11#,NSP110..RHD..N

 1
87050-52131

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52051

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120

NLP11#,NSP110..RHD..R

 1
87103-52131

NLP11#,NSP110..RHD..N

 1
87103-52120

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52121

NLP11#,NSP110..RHD..R

 1
87103-52121

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52132

NLP11#,NSP110..RHD..N

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52032

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52042

NLP11#,NSP110..RHD..N

 1
87130-52032

NLP11#,NSP110..RHD..R

 1
87130-52050

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52112

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52050

NLP11#,NSP110..RHD..R

 1
87130-52112

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52180

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52061

NLP11#,NSP110..RHD..N

 1
87130-52180

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87138C - RESISTOR, BLOWER
87138-52030

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..R

 1
87139C - FILTER, CLEAN AIR
87139-30040

NLP11#,NSP110

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52091

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

 1
88501-52102

NLP11#,NSP110

 1
88501-52091

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88501-52103

NLP11#,NSP110

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NLP11#,NSP110

 1
88515-68010

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52030

NLP11#,NSP110..RHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-52100

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NLP11#,NSP110

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52630

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..R

 1
88650-52291

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52610

NLP11#,NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52610

NLP11#,NSP110..N

 1
Common parts
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

ILLUST NO. 1 OF 2(0901- )RHD

Click highlighted areas on diagram

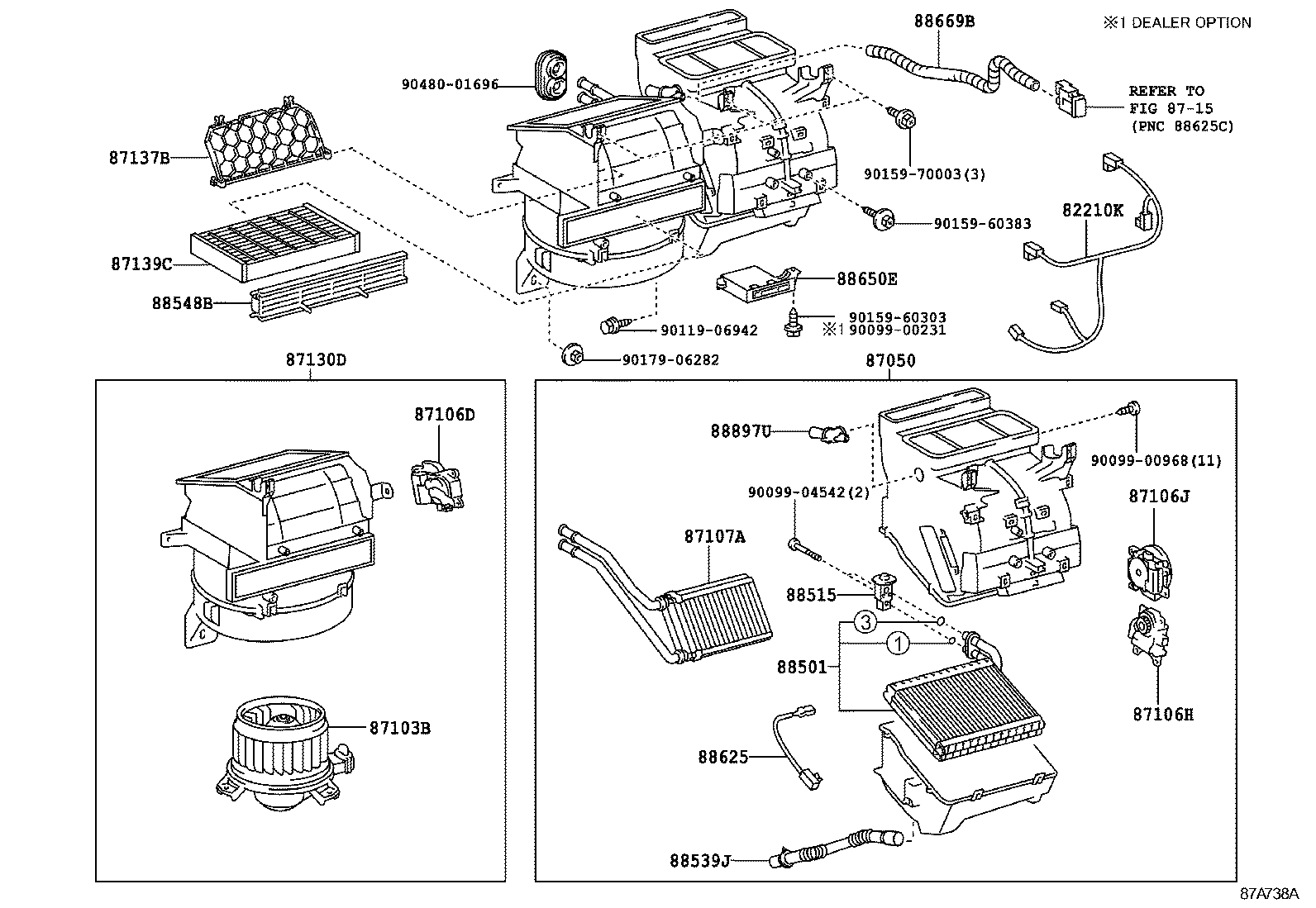

AUTO AIR CONDITIONER

diagram 82210K 87050 87103B 87106D 87106H 87106J 87107A 87130D 87137B 87139C 8715 88501 88515 88539J 88548B 88625 88650E 88669B 88897U 9009900231 9009900968 9009904542 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-52030

NLP11#,NSP110..RHD..N

 1
82212-52030

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
82212-52030

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52012

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52012

NLP11#,NSP110..RHD..R

 1
87050-52020

NLP11#,NSP110..RHD..N

 1
87050-52051

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52131

NLP11#,NSP110..RHD..R

 1
87050-52141

NLP11#,NSP110..RHD..N

 1
87050-52131

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52051

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52120

NLP11#,NSP110..RHD..R

 1
87103-52131

NLP11#,NSP110..RHD..N

 1
87103-52120

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52121

NLP11#,NSP110..RHD..R

 1
87103-52121

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52132

NLP11#,NSP110..RHD..N

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-52100

NLP11#,NSP110..N

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-52080

NLP11#,NSP110..N

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-52090

NLP11#,NSP110..N

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52032

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52042

NLP11#,NSP110..RHD..N

 1
87130-52032

NLP11#,NSP110..RHD..R

 1
87130-52050

NLP11#,NSP110..RHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52112

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52050

NLP11#,NSP110..RHD..R

 1
87130-52112

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52180

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52061

NLP11#,NSP110..RHD..N

 1
87130-52180

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87139C - FILTER, CLEAN AIR
87139-30040

NLP11#,NSP110

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52091

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

 1
88501-52102

NLP11#,NSP110

 1
88501-52091

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88501-52103

NLP11#,NSP110

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NLP11#,NSP110

 1
88515-68010

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52030

NLP11#,NSP110..RHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NLP11#,NSP110

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52630

NLP11#,NSP110..RHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..R

 1
88650-52291

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52610

NLP11#,NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52610

NLP11#,NSP110..N

 1
88669B - HOSE, COOLER AIR
88669-52050

NLP11#,NSP110..N

 1
88897U - PIPE, ASPIRATOR
88897-32090

NLP11#,NSP110..N

 1
Common parts
90099-00231
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715
