NSP110R-AHFRKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - May 2014
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )RHD

Click highlighted areas on diagram

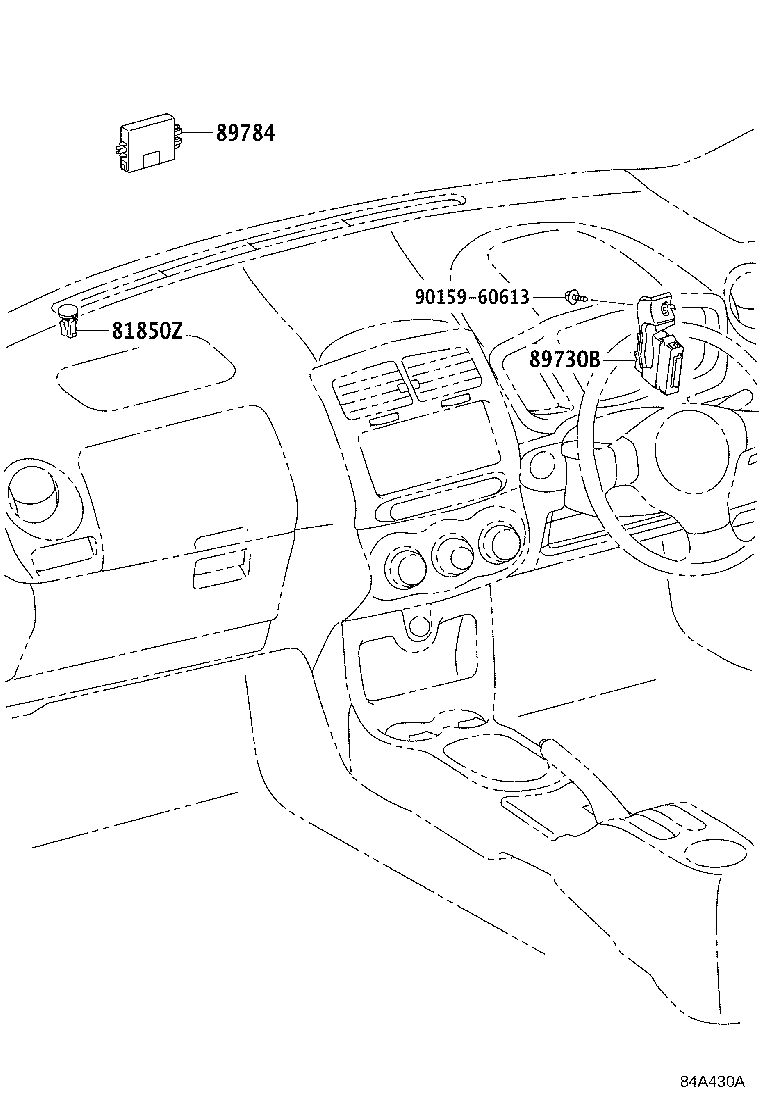

diagram 81850Z 89730B 89784 9015960613
Part # Description Qty Price
81850Z - LAMP ASSY, THEFT WARNING INDICATOR
81850-52010

NLP11#,NSP110..RHD

UK SPEC

 1
89730B - COMPUTER ASSY, THEFT WARNING
89730-52060

NLP11#,NSP110..RHD

UK SPEC

 1
89730-52061

NLP11#,NSP110..RHD

UK SPEC

 1
89784 - COMPUTER, IMMOBILIZER CODE
89784-52011

NLP11#,NSP110..RHD..N

UK SPEC&SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
89784-52011

NSP110..RHD..N

GENERAL EXPORT&SOL PACKAGE&WIRELESS DOOR LOCK-SMART KEY:FRONT & BACK(WITH/PUSH START)

 1
89784-52011

NLP11#,NSP110..RHD

 1
Common parts
90159-60613
