NSP110R-AHFRKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - May 2014
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )RHD

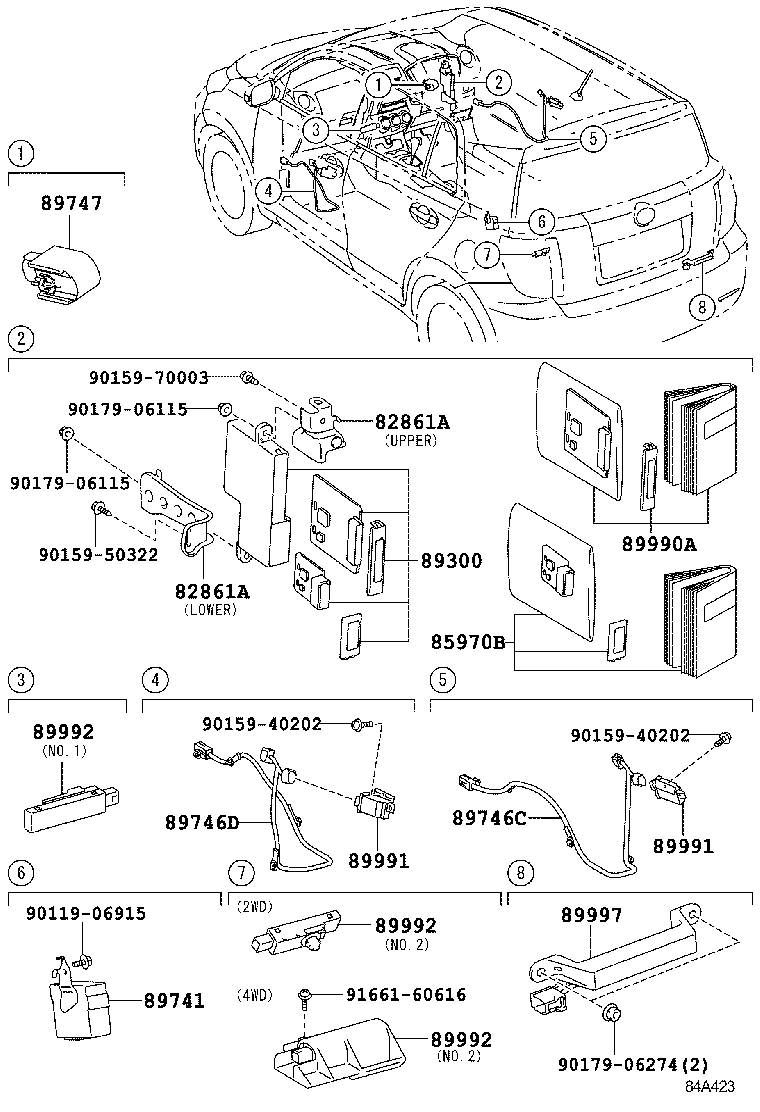

Click highlighted areas on diagram

diagram 82861A 82861A 85970B 89300 89741 89746C 89746D 89747 89990A 89991 89991 89992 89992 89992 89997 9011906915 9015940202 9015940202 9015950322 9015970003 9017906115 9017906115 9017906274 9166160616
Part # Description Qty Price
82861A - BRACKET, COMPUTER INTEGRATION, NO.1
82861-52020

NLP11#,NSP110..RHD

LOWER

 1
82861-52010

NSP110..RHD

UPPER

 1
82861A - BRACKET, COMPUTER INTEGRATION, NO.1
82861-52020

NLP11#,NSP110..RHD

LOWER

 1
82861-52010

NSP110..RHD

UPPER

 1
85970B - RELAY ASSY, DOUBLE LOCK DOOR CONTROL
85970-52020

NLP11#,NSP110..RHD

UK SPEC

 1
89300 - BOX ASSY, ECU AGGREGATION
89300-52130

NLP11#,NSP110..RHD

UK SPEC

 1
89300-52150

NLP11#,NSP110..RHD

 1
89300-52120

NLP11#,NSP110..RHD

 1
89300-52160

NLP11#,NSP110..RHD

UK SPEC

 1
89300-52170

NLP11#,NSP110..RHD

UK SPEC

 1
89300-52080

NLP11#,NSP110..RHD

 1
89741 - RECEIVER, DOOR CONTROL
89740-52051

NLP11#,NSP110..RHD

 1
89746C - HARNESS, ELECTRICAL KEY WIRE, NO.1
89746-52140

NLP11#,NSP110..RHD

 1
89746D - HARNESS, ELECTRICAL KEY WIRE, NO.2
89746-52150

NLP11#,NSP110..RHD

 1
89747 - BUZZER, WIRELESS DOOR LOCK
89747-52010

NLP11#,NSP110..RHD

 1
89990A - COMPUTER ASSY, SMART KEY
89990-52230

NLP11#,NSP110..RHD

 1
89990-52280

NLP11#,NSP110..RHD

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

NLP11#,NSP110..RHD

LH

 1
89991-30040

NLP11#,NSP110..RHD

RH

 1
89991 - OSCILLATOR, DOOR ELECTRICAL KEY
89991-30050

NLP11#,NSP110..RHD

LH

 1
89991-30040

NLP11#,NSP110..RHD

RH

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-52020

NLP110,NSP110..RHD

NO.2

 1
89992-52010

NLP11#,NSP110..RHD

NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-52020

NLP110,NSP110..RHD

NO.2

 1
89992-52010

NLP11#,NSP110..RHD

NO.1

 1
89992 - OSCILLATOR, INDOOR ELECTRICAL KEY
89992-52020

NLP110,NSP110..RHD

NO.2

 1
89992-52010

NLP11#,NSP110..RHD

NO.1

 1
89997 - ANTENNA, ELECTRICAL KEY
89997-52010

NLP11#,NSP110..RHD

 1
Common parts
90119-06915
90159-40202
90159-50322
90159-70003
90179-06115
90179-06274
91661-60616
