NSP110R-AHFRKW (2009)
Toyota Urban Cruiser
ILLUST NO. 4 OF 8(0901- )
DOOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-52L70 |
NLP11#,NSP110..RHD..N UK SPEC |
1 | ||
| 82151-52L20 |
NLP11#,NSP110..RHD..N |
1 | ||
| 82151-52M00 |
NLP11#,NSP110..RHD..R UK SPEC |
1 | ||
| 82151-52M10 |
NLP11#,NSP110..RHD..R |
1 | ||
| 82151-52M20 |
NLP11#,NSP110..RHD..N SOL PACKAGE |
1 | ||
| 82151-52M30 |
NLP11#,NSP110..RHD..N UK SPEC&SOL PACKAGE |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82152-52G90 |
NLP11#,NSP110..RHD UK SPEC |
1 | ||
| 82152-52J10 |
NLP11#,NSP110..RHD..N SOL PACKAGE |
1 | ||
| 82152-52J00 |
NLP11#,NSP110..RHD |
1 | ||
| 82152-52J20 |
NLP11#,NSP110..RHD..N UK SPEC&SOL PACKAGE |
1 | ||
| 82153A - WIRE, REAR DOOR, RH | ||||
| 82153-52560 |
NLP11#,NSP110..RHD..R UK SPEC |
1 | ||
| 82153-52400 |
NLP11#,NSP110..N |
1 | ||
| 82153-52570 |
NLP11#,NSP110..RHD..N UK SPEC |
1 | ||
| 82153-52540 |
NLP11#,NSP110..R |
1 | ||
| 82154A - WIRE, REAR DOOR, LH | ||||
| 82154-52240 |
NLP11#,NSP110..RHD..R UK SPEC |
1 | ||
| 82154-52270 |
NLP11#,NSP110..RHD..N UK SPEC |
1 | ||
| 82153-52540 |
NLP11#,NSP110..R |
1 | ||
| 82153-52400 |
NLP11#,NSP110..N |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-52470 |
NLP11#,NSP110..RHD |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-52460 |
NLP11#,NSP110..RHD |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52130 |
NLP11#,NSP110 |
2 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-52130 |
NLP11#,NSP110 |
2 | ||
| Common parts | ||||
| 90119-06915 | ||||

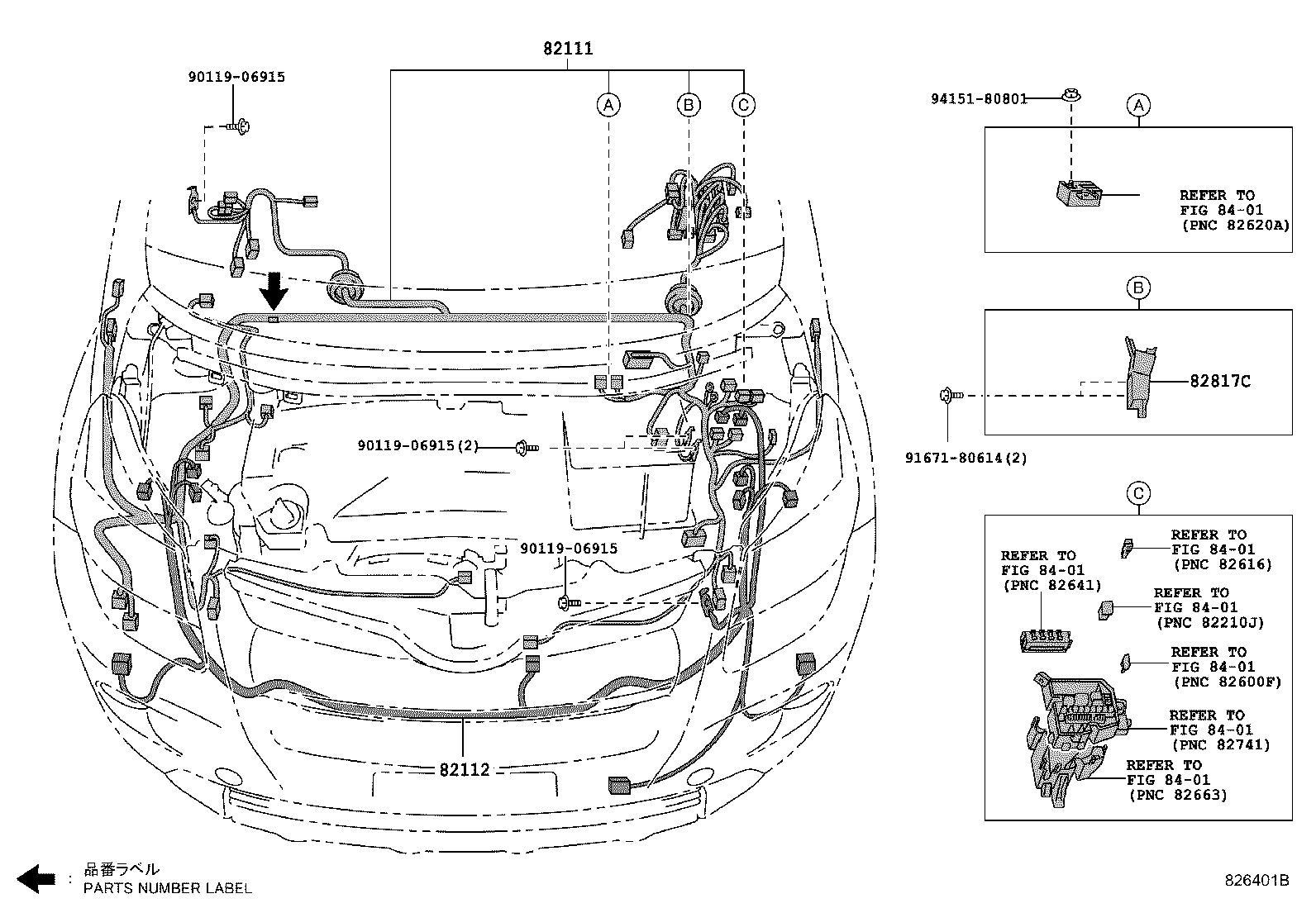

ILLUST NO. 1 OF 8(0901- )RHD
ENGINE ROOM
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-52W10 |
NSP110..RHD |
1 | ||
| 82111-52W11 |
NSP110..RHD |
1 | ||
| 82111-52W12 |
NSP110..RHD |
1 | ||
| 82111-52W13 |
NSP110..RHD |
1 | ||
| 82112 - WIRE, ENGINE ROOM, NO.2 | ||||
| 82112-52310 |
NSP110 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-52580 |
NLP11#,NSP110..RHD |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 91671-80614 | ||||
| 94151-80801 | ||||
| Linked diagrams | ||||
| 8401 | ||||

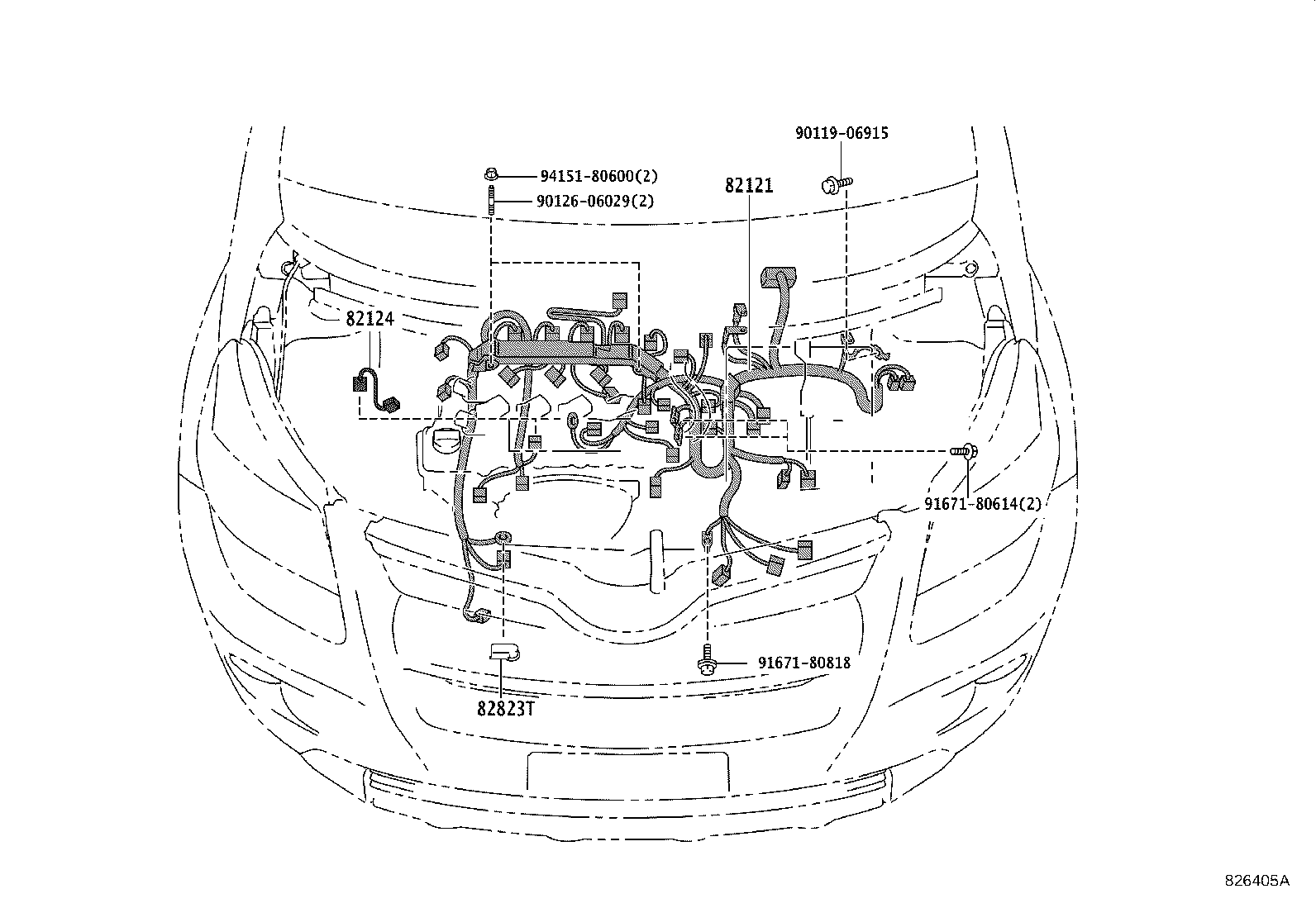

ILLUST NO. 2 OF 8(0901- )NSP110..RHD
ENGINE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82121 - WIRE, ENGINE | ||||
| 82121-52Q90 |
NSP110..RHD |
1 | ||
| 82121-52J80 |
NSP110..RHD |
1 | ||
| 82124 - WIRE, ENGINE, NO.4 | ||||
| 82124-12150 |
NSP110 |
1 | ||
| 82823T - CAP, ALTERNATOR TERMINAL | ||||
| 82823-22050 |
NLP11#,NSP110 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90126-06029 | ||||
| 91671-80614 | ||||
| 91671-80818 | ||||
| 94151-80600 | ||||

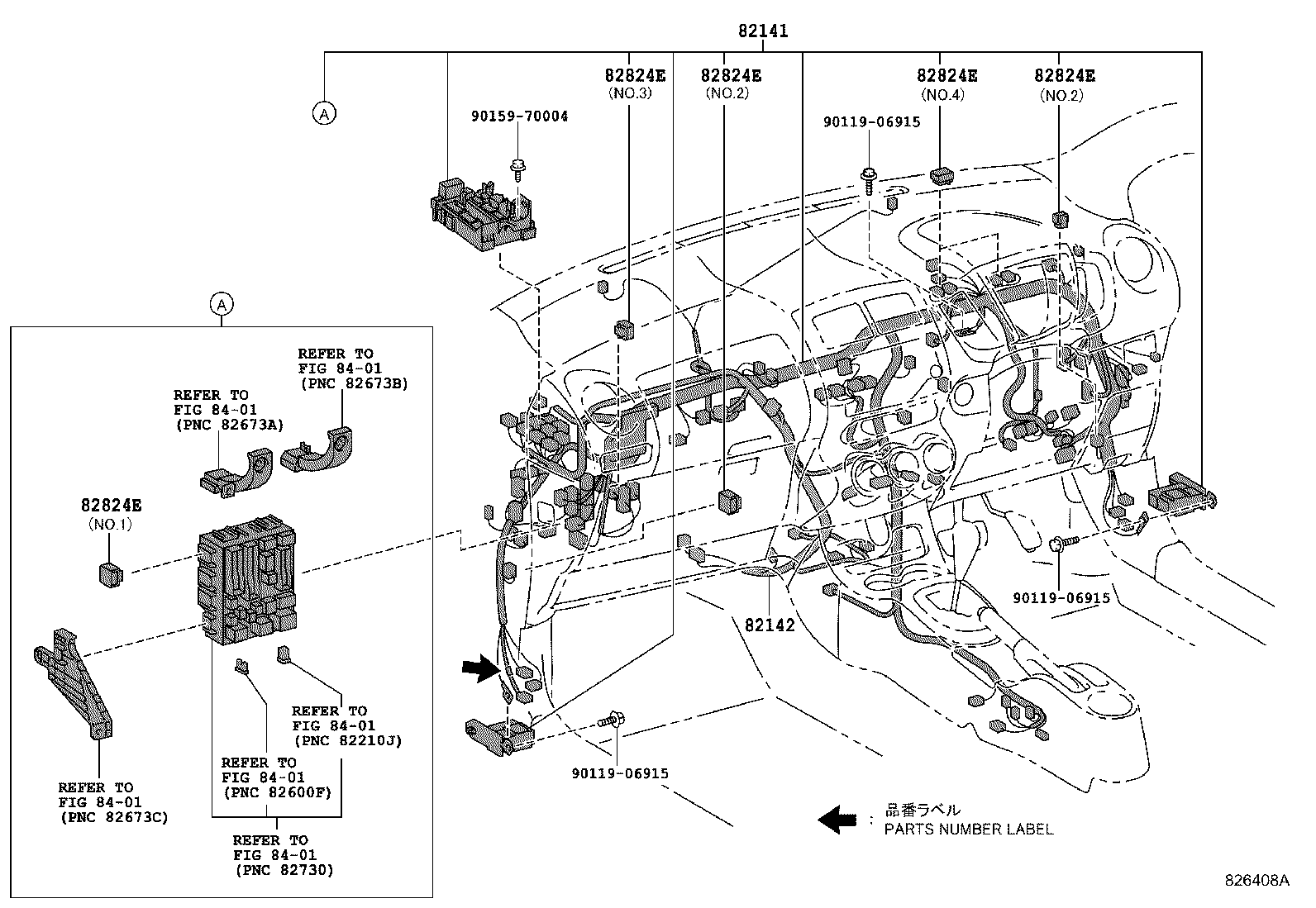

ILLUST NO. 3 OF 8(0901- )RHD
INSTRUMENT PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82141 - WIRE, INSTRUMENT PANEL | ||||
| 82141-5DC40 |
NSP110..RHD |
1 | ||
| 82141-5DX80 |
NSP110..RHD |
1 | ||
| 82141-5DX81 |
NSP110..RHD |
1 | ||
| 82142 - WIRE, INSTRUMENT PANEL, NO.2 | ||||
| 82142-52490 |
NLP11#,NSP110..RHD..R |
1 | ||
| 82142-52520 |
NSP110..RHD..N |
1 | ||
| 82142-52490 |
NLP11#,NSP110..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| 82824E - CONNECTOR, WIRING HARNESS | ||||
| 82824-47210 |
NLP11#,NSP110 NO.2 |
2 | ||
| 82824-52280 |
NLP11#,NSP110 NO.3 |
1 | ||
| 82824-52290 |
NLP11#,NSP110 NO.4 |
2 | ||
| 82824-22070 |
NLP11#,NSP110 NO.1 |
1 | ||
| Common parts | ||||
| 90119-06915 | ||||
| 90159-70004 | ||||
| Linked diagrams | ||||
| 8401 | ||||
ILLUST NO. 5 OF 8(0901- )
FLOOR & ROOF
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82161 - WIRE, FLOOR | ||||
| 82161-5CJ31 |
NLP110,NSP110..RHD |
1 | ||
| 82161-52Y40 |
NLP110,NSP110..RHD |
1 | ||
| 82161-5CJ30 |
NLP110,NSP110..RHD |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-52370 |
NLP11#,NSP110..R |
1 | ||
| 82171-52430 |
NLP11#,NSP110..N |
1 | ||
| 82171-52440 |
NLP11#,NSP110..N SOL PACKAGE |
1 | ||
| 82345A - DIODE | ||||
| 82345-32010 |
NLP11#,NSP110 |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-52710 |
NLP11#,NSP110 |
3 | ||
| Common parts | ||||
| 90119-06915 | ||||
ILLUST NO. 6 OF 8(0901- )
CLAMP & BRACKET
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82715-12B80 | ||||
| 82715-12C70 | ||||
| 82715-12N70 | ||||
| 82715-12N80 | ||||
| 82715-12N90 | ||||
| 82715-12P00 | ||||
| 82715-12P60 | ||||
| 82715-12P70 | ||||
| 82715-12P80 | ||||
| 82715-12Q41 | ||||
| 82715-52A70 | ||||
| 82715-52D20 | ||||
| 82715-52D30 | ||||
| 82715-52F61 | ||||
| 82715-52J70 | ||||
| 82715-52J90 | ||||
| 82715-52K40 | ||||
| 82715-52M30 | ||||
| 82715-52N70 | ||||
| 82715-52P20 | ||||
| 82715-52P50 | ||||
| 82715-52Q90 | ||||
| 82715-52R60 | ||||
| 82715-52U00 | ||||
| 82715-52U10 | ||||
| 82715-52U20 | ||||
| 82715-52U30 | ||||
| 82715-52U40 | ||||
| 82715-52U50 | ||||
| 82715-6A460 | ||||
| 90179-06178 | ||||
| 91671-80610 | ||||
| 91671-80612 | ||||
| 91671-80614 | ||||
| 91671-80812 | ||||
| 91671-80816 | ||||
| 91671-80820 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 2606 | ||||
ILLUST NO. 7 OF 8(0901- )
CONNECTOR 1/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-60460 | ||||
| 90080-98028 | ||||
| 90980-10619 | ||||
| 90980-10797 | ||||
| 90980-10860 | ||||
| 90980-10947 | ||||
| 90980-10988 | ||||
| 90980-11070 | ||||
| 90980-11148 | ||||
| 90980-11314 | ||||
| 90980-12225 | ||||
| 90980-12352 | ||||
| 90980-12391 | ||||
| 90980-12449 | ||||
| 90980-12450 | ||||
| 90980-12490 | ||||
| 90980-12699 | ||||
ILLUST NO. 8 OF 8(0901- )
CONNECTOR 2/2
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 82824-52330 | ||||
| 90980-10996 | ||||
| 90980-10997 | ||||
| 90980-11909 | ||||
| 90980-12460 | ||||
| 90980-12551 | ||||
