NSP110R-AHFRKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - May 2014
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )RHD

Click highlighted areas on diagram

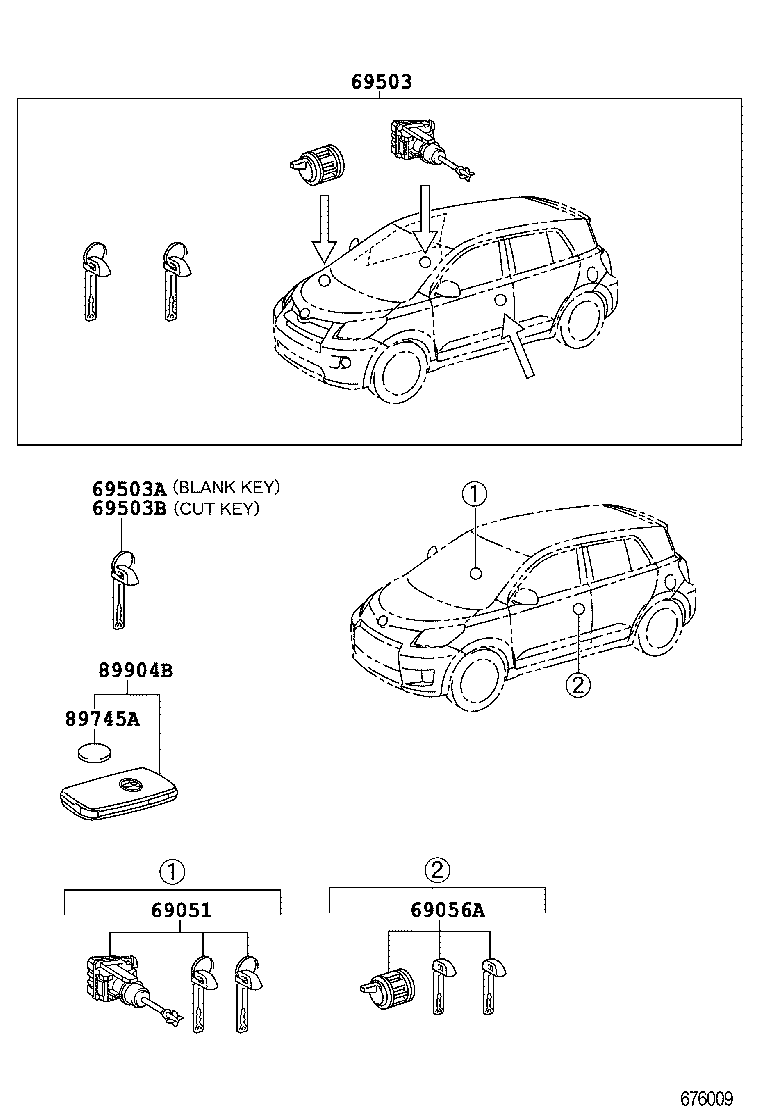

diagram 69051 69056A 69503 69503A 69503B 89745A 89904B
Part # Description Qty Price
69051 - CYLINDER & KEY SET, DOOR LOCK, RH
69051-52470

NLP11#,NSP110..RHD

UK SPEC

 1
69051-52480

NLP11#,NSP110..RHD

 1
69056A - CYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69056-33200

NLP11#,NSP110..RHD

 1
69503 - CYLINDER SET, LOCK
69005-52G60

NLP11#,NSP110..RHD

 1
69005-52G70

NLP11#,NSP110..RHD

UK SPEC

 1
69503A - KEY, BLANK
69515-52120

NLP11#,NSP110..RHD

MASTER KEY,W(*68)

 1
69503B - KEY, CUT
69515-52110

NLP11#,NSP110..RHD

MASTER KEY,W(*68)

 2
89745A - BATTERY, TRANSMITTER
89745-52030

NLP11#,NSP110..RHD

CR1632

 1
89904B - TRANSMITTER SUB-ASSY, ELECTRICAL KEY
89904-12170

NLP11#,NSP110..RHD

 2
89904-52050

NLP11#,NSP110..RHD

 2
89904-52071

NLP11#,NSP110..RHD

 1
