NSP110R-AHFRKW (2009)
Toyota Urban Cruiser

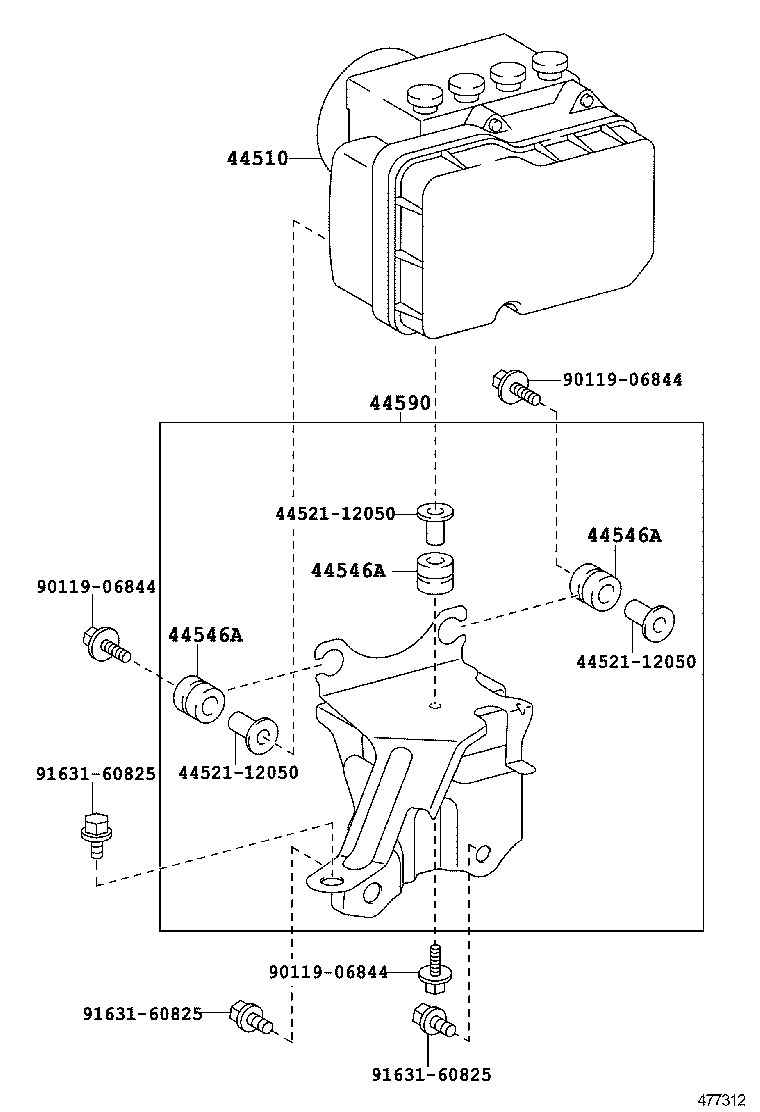

ILLUST NO. 2 OF 2(0901-1008)
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52A71 |
NLP110,NSP110..RHD |
1 | ||
| 44050-52A70 |
NLP110,NSP110..RHD |
1 | ||
| 44050-52G41 |
NLP110,NSP110..RHD |
1 | ||
| 44050-52G40 |
NLP110,NSP110..RHD |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52230 |
NLP11#,NSP110..RHD |
1 | ||
| 44590-52190 |
NLP11#,NSP110..RHD |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||

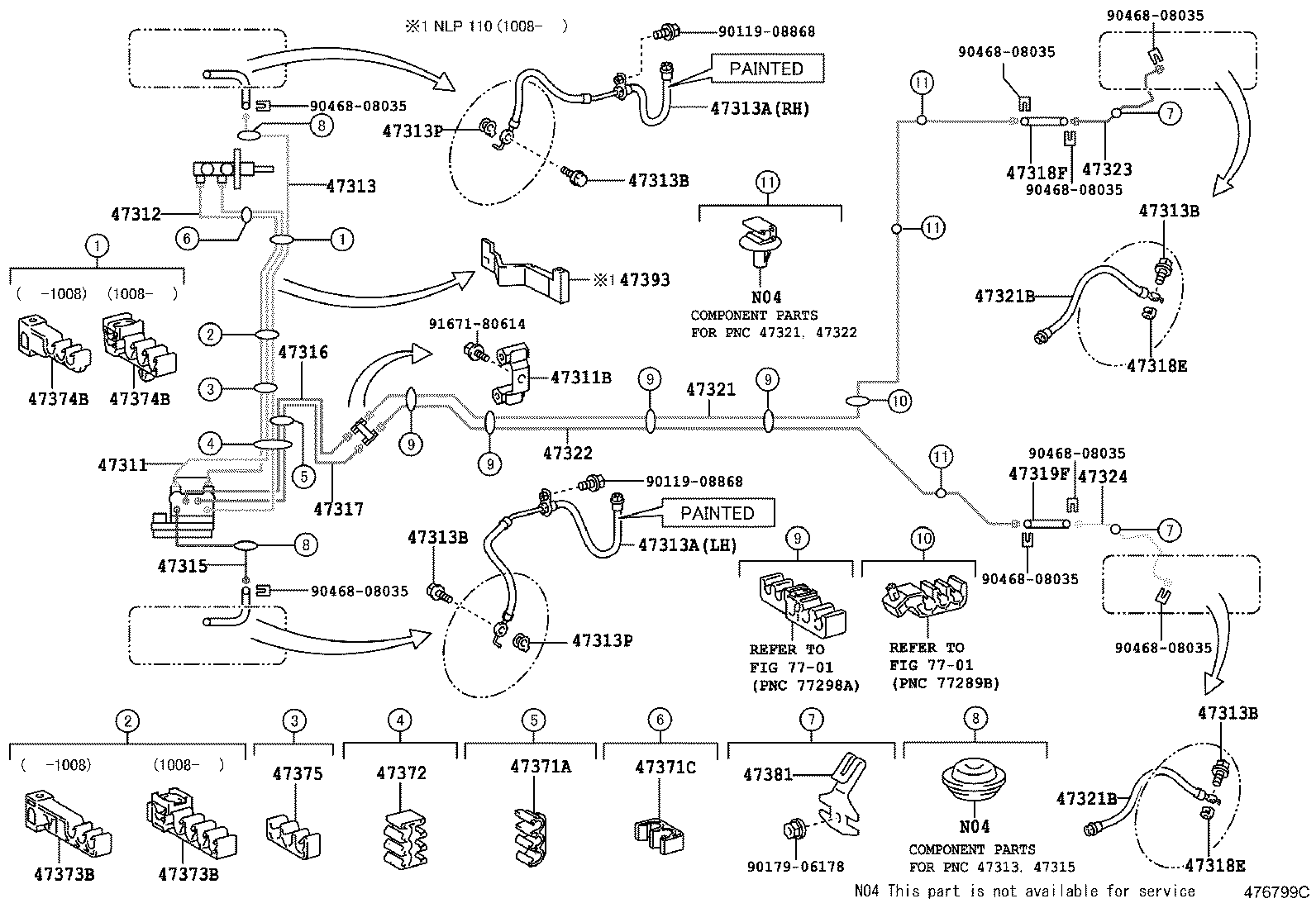

ILLUST NO. 1 OF 2(0901- )NLP110,NSP110..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-52400 |
NSP110..RHD |
1 | ||
| 47311-52490 |
NSP110..RHD |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10260 |
NLP11#,NSP110 |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-52450 |
NSP110..RHD |
1 | ||
| 47312-52360 |
NLP11#,NSP110..RHD |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-52170 |
NLP11#,NSP110..RHD |
1 | ||
| 47313-52230 |
NSP110..RHD |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E08 |
NLP11#,NSP110 LH,PAINTED=PINK |
1 | ||
| 90947-02E07 |
NLP11#,NSP110 RH,PAINTED=GREEN |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90947-02E08 |
NLP11#,NSP110 LH,PAINTED=PINK |
1 | ||
| 90947-02E07 |
NLP11#,NSP110 RH,PAINTED=GREEN |
1 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP11#,NSP110 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP11#,NSP110 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP11#,NSP110 |
2 | ||
| 47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE) | ||||
| 90401-10058 |
NLP11#,NSP110 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP11#,NSP110 |
2 | ||
| 47313P - GASKET(FOR FRONT FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP11#,NSP110 |
2 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-52200 |
NLP11#,NSP110..RHD |
1 | ||
| 47315-52230 |
NLP11#,NSP110..RHD |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-52160 |
NLP11#,NSP110..RHD |
1 | ||
| 47316-52190 |
NLP11#,NSP110..RHD |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-52160 |
NLP11#,NSP110..RHD |
1 | ||
| 47317-52190 |
NLP11#,NSP110..RHD |
1 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP11#,NSP110 |
2 | ||
| 47318E - GASKET(FOR REAR FLEXIBLE HOSE) | ||||
| 47389-50020 |
NLP11#,NSP110 |
2 | ||
| 47318F - HOSE, FLEXIBLE(FOR REAR RH) | ||||
| 90947-02E09 |
NLP110,NSP110 |
1 | ||
| 47319F - HOSE, FLEXIBLE(FOR REAR LH) | ||||
| 90947-02E10 |
NLP110,NSP110 |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-52270 |
NLP110,NSP110 |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E11 |
NLP110,NSP110 |
2 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-02E11 |
NLP110,NSP110 |
2 | ||
| 47322 - TUBE, REAR BRAKE, NO.2 | ||||
| 47322-52250 |
NLP110,NSP110 |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-52110 |
NLP110,NSP110 |
1 | ||
| 47324 - TUBE, REAR BRAKE, NO.4 | ||||
| 47324-52100 |
NLP110,NSP110 |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90464-00868 |
NLP11#,NSP110 |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90464-00904 |
NLP11#,NSP110..RHD |
1 | ||
| 90464-00920 |
NLP11#,NSP110..RHD |
1 | ||
| 47372 - CLAMP, BRAKE TUBE, NO.2 | ||||
| 90949-01969 |
NLP115;NLP110,NSP110..RHD |
1 | ||
| 90464-00925 |
NLP115;NLP110,NSP110..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D27 |
NLP11#,NSP110..RHD |
1 | ||
| 90949-01D85 |
NLP11#,NSP110..RHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-01D27 |
NLP11#,NSP110..RHD |
1 | ||
| 90949-01D85 |
NLP11#,NSP110..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D02 |
NLP11#,NSP110..RHD |
1 | ||
| 90949-01D84 |
NLP11#,NSP110..RHD |
1 | ||
| 47374B - CLAMP, BRAKE TUBE, NO.4 | ||||
| 90949-01D02 |
NLP11#,NSP110..RHD |
1 | ||
| 90949-01D84 |
NLP11#,NSP110..RHD |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90464-00857 |
NLP11#,NSP110..RHD |
1 | ||
| 90464-00929 |
NLP11#,NSP110..RHD |
1 | ||
| 47381 - BRACKET, BRAKE TUBE CLAMP NO.1 | ||||
| 47381-52020 |
NLP110,NSP110 |
2 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90179-06178 | ||||
| 90468-08035 | ||||
| 91671-80614 | ||||
| Linked diagrams | ||||
| 7701 | ||||
ILLUST NO. 2 OF 2(1008- )RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44510 - ACTUATOR ASSY, BRAKE | ||||
| 44050-52A71 |
NLP110,NSP110..RHD |
1 | ||
| 44050-52A70 |
NLP110,NSP110..RHD |
1 | ||
| 44050-52G41 |
NLP110,NSP110..RHD |
1 | ||
| 44050-52G40 |
NLP110,NSP110..RHD |
1 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44546A - CUSHION, BRAKE ACTUATOR BOLT | ||||
| 44546-12110 |
NLP11#,NSP110..RHD |
4 | ||
| 44546-12110 |
NLP11#,NSP110..RHD |
3 | ||
| 44590 - BRACKET ASSY, BRAKE ACTUATOR | ||||
| 44590-52230 |
NLP11#,NSP110..RHD |
1 | ||
| 44590-52190 |
NLP11#,NSP110..RHD |
1 | ||
| Common parts | ||||
| 44521-12050 | ||||
| 90119-06844 | ||||
| 91631-60825 | ||||
