NSP110R-AHFRKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
May 2014
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

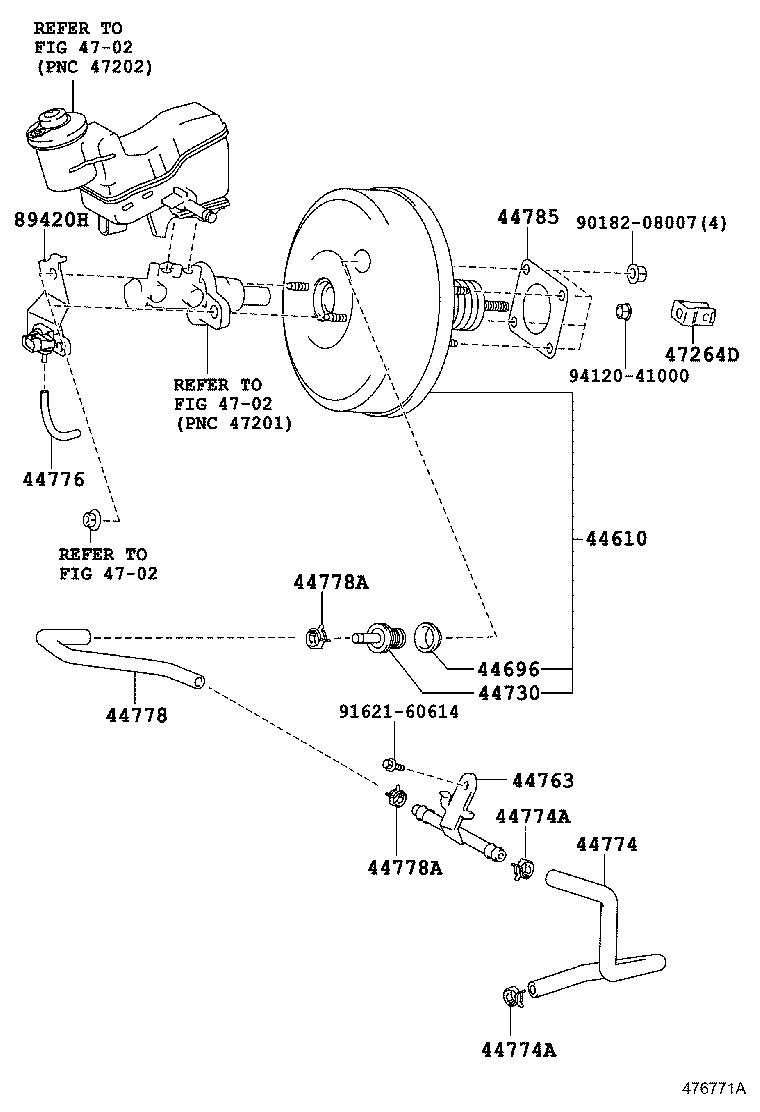

(0901-1008)NSP110..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52680 |
NSP110..RHD |
1 | ||
| 44610-52D00 |
NSP110..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NSP110..RHD |
1 | ||
| 90480-24439 |
NSP110..RHD |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
NLP11#,NSP110..RHD |
1 | ||
| 44730-22150 |
NLP11#,NSP110 |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-52090 |
NSP110..RHD |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-52110 |
NSP110..RHD |
1 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NSP110..RHD |
2 | ||
| 44774A - CLIP(FOR UNION TO CONNECTOR TUBE HOSE) | ||||
| 96133-41500 |
NSP110..RHD |
2 | ||
| 44776 - HOSE, BRAKE BOOSTER | ||||
| 90999-92002 |
NSP110..RHD |
1 | ||
| 44778 - HOSE, CONNECTOR TO CHECK VALVE | ||||
| 44778-52010 |
NSP110..RHD |
1 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP11#,NSP110..RHD |
2 | ||
| 44778A - CLIP(FOR CONNECTOR TO CHECK VALVE HOSE) | ||||
| 96133-41500 |
NLP11#,NSP110..RHD |
2 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NLP11#,NSP110 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52010 |
NLP11#,NSP110 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89420-52070 |
NSP110..RHD |
1 | ||
| 89421-52020 |
NSP110..RHD |
1 | ||
| Common parts | ||||
| 90182-08007 | ||||
| 91621-60614 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||

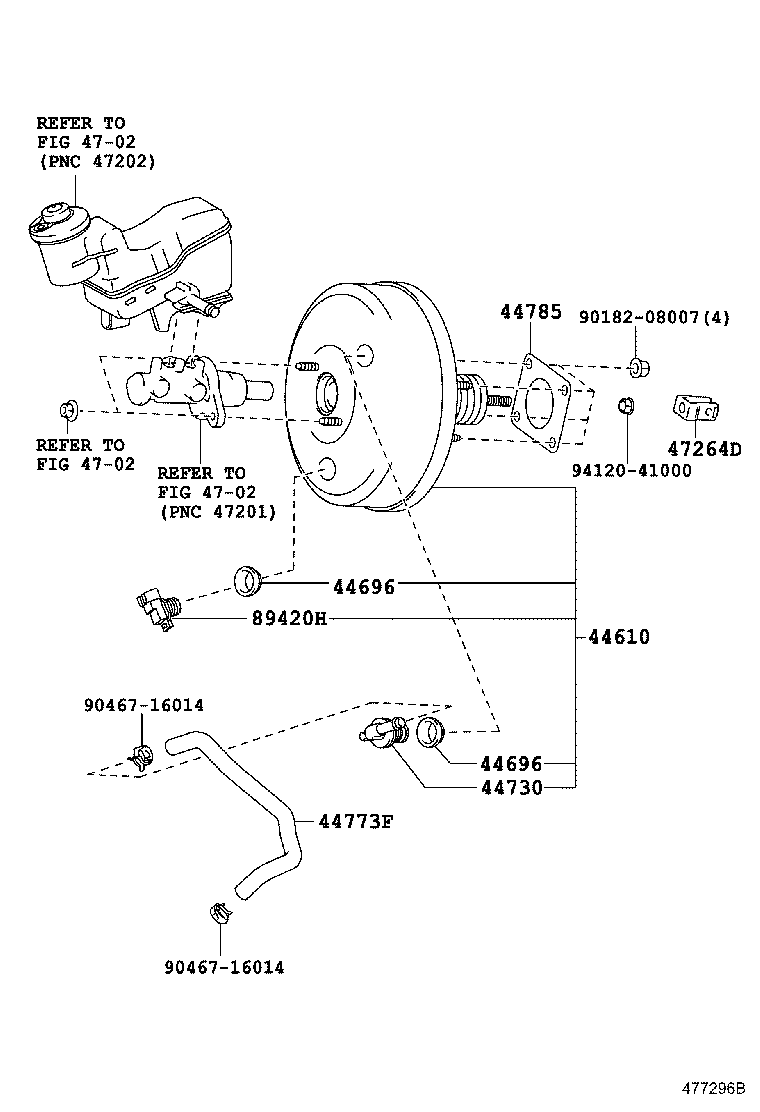

(1008- )NSP110..RHD
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-52680 |
NSP110..RHD |
1 | ||
| 44610-52D00 |
NSP110..RHD |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NSP110..RHD |
1 | ||
| 90480-24439 |
NSP110..RHD |
2 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90480-24439 |
NSP110..RHD |
1 | ||
| 90480-24439 |
NSP110..RHD |
2 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-20170 |
NLP11#,NSP110..RHD |
1 | ||
| 44730-22150 |
NLP11#,NSP110 |
1 | ||
| 44773F - HOSE, UNION TO CHECK VALVE | ||||
| 44773-52240 |
NSP110..RHD |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-16020 |
NLP11#,NSP110 |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-52010 |
NLP11#,NSP110 |
1 | ||
| 89420H - SENSOR ASSY, VACUUM | ||||
| 89420-52070 |
NSP110..RHD |
1 | ||
| 89421-52020 |
NSP110..RHD |
1 | ||
| Common parts | ||||
| 90182-08007 | ||||
| 90467-16014 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 4702 | ||||
