NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0901- )NSP110

Click highlighted areas on diagram

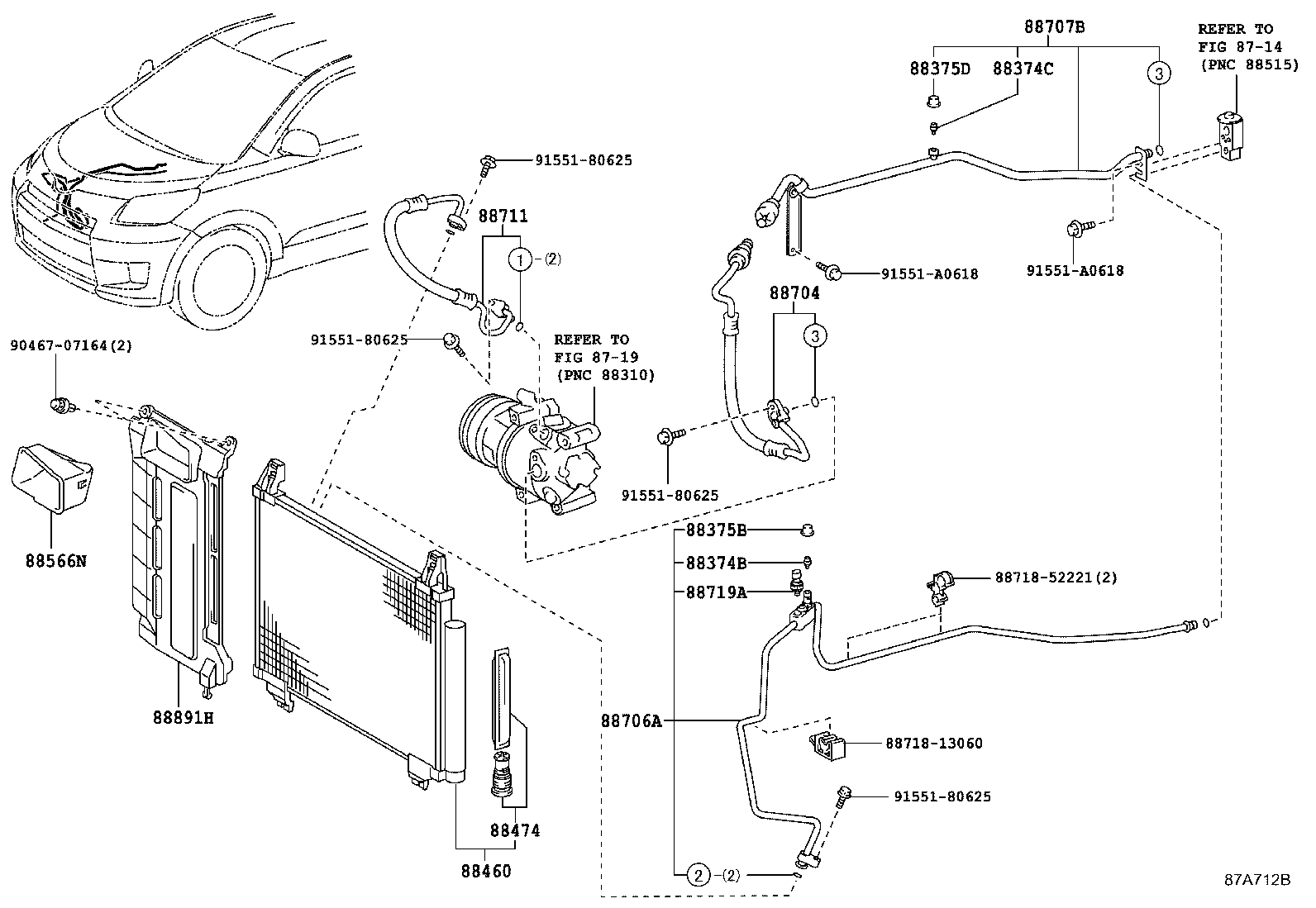

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88474 88566N 88704 88706A 88707B 88711 8871813060 8871852221 88719A 88891H 9046707164 9155180625 9155180625 9155180625 9155180625 91551A0618 91551A0618
Part # Description Qty Price
88374B - VALVE, SERVICE, NO.1
88374-30010

NLP11#,NSP110

 1
88374-30010

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88374-30010

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88374C - VALVE, SERVICE, NO.2
88374-30010

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88374-30010

NLP11#,NSP110

 1
88374-30010

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88375B - CAP, SERVICE VALVE, NO.1
88375-30280

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88375-30280

NLP11#,NSP110

 1
88375-30280

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30290

NLP11#,NSP110

 1
88375-30290

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88375-30290

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88460 - CONDENSER ASSY, COOLER
88460-52130

NSP110

 1
88460-52130

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88460-52130

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88474 - DRYER, COOLER
88474-12030

NLP11#,NSP110

 1
88474-12030

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88474-12030

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88566N - DUCT, COOLER AIR, NO.1
88566-52110

NSP110

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-52160

NSP110

 1
88704-52160

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88704-52160

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52441

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52450

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52441

NSP110

 1
88706-52450

NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52441

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52190

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88707-52190

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88707-52190

NSP110

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52330

NSP110

 1
88711-52330

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88711-52330

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88719-33020

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88719-33020

NLP11#,NSP110

 1
88891H - COVER, COOLER, NO.1
88891-52032

NSP110

 1
Common parts
88718-13060
88718-52221
90467-07164
91551-80625
91551-A0618
Linked diagrams
8714
8719

ILLUST NO. 1 OF 2(0901- )NSP110

Click highlighted areas on diagram

DEALER OPTION

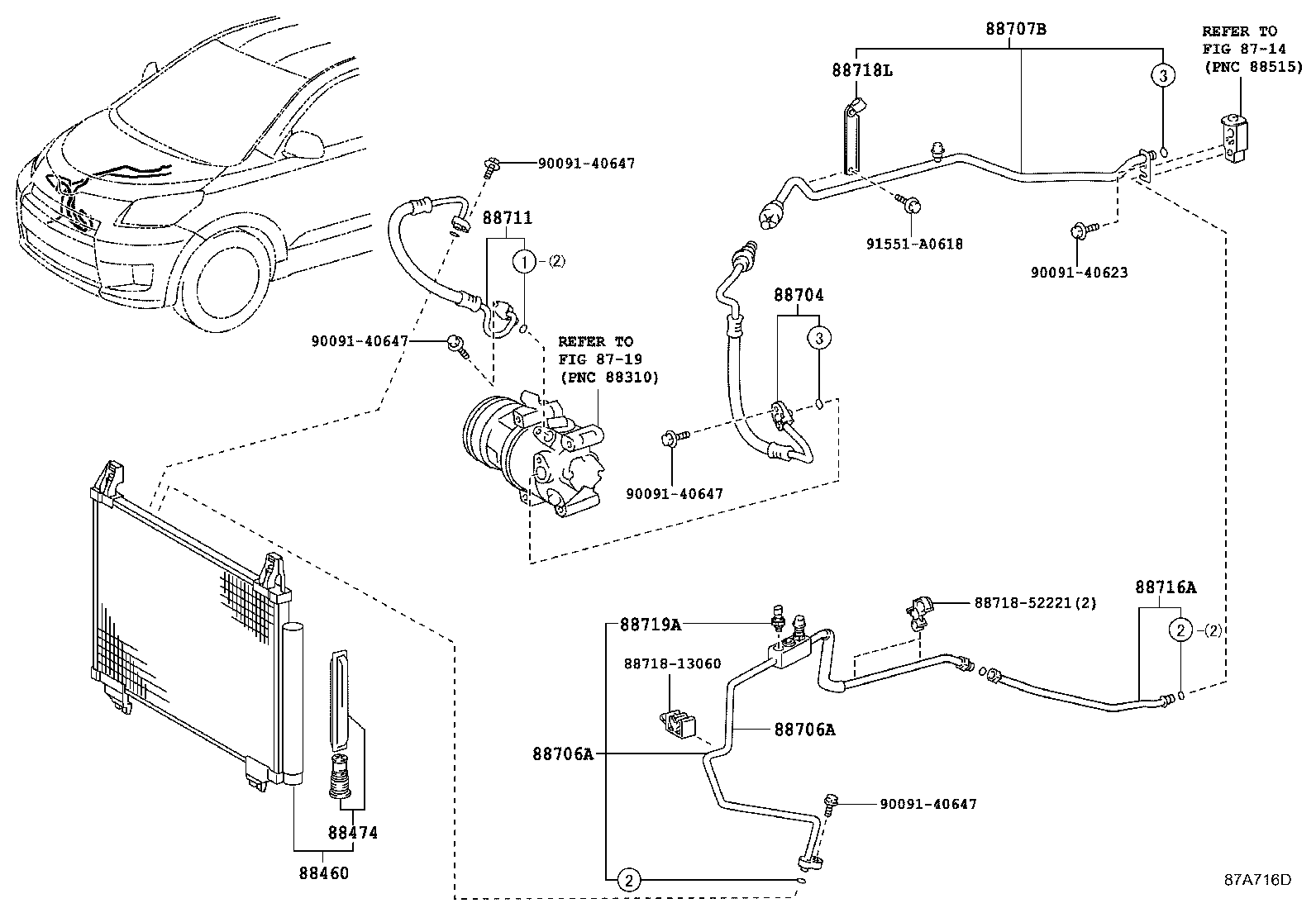

diagram 8714 8719 88460 88474 88704 88706A 88706A 88707B 88711 88716A 8871813060 8871852221 88718L 88719A 9009140623 9009140647 9009140647 9009140647 9009140647 91551A0618
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-52130

NSP110

 1
88460-52130

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88460-52130

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88474 - DRYER, COOLER
88474-12030

NLP11#,NSP110

 1
88474-12030

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88474-12030

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-52160

NSP110

 1
88704-52160

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88704-52160

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52441

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52450

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52441

NSP110

 1
88706-52450

NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52441

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88706A - TUBE SUB-ASSY, LIQUID, A
88706-52441

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52450

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52441

NSP110

 1
88706-52450

NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88706-52441

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88707B - TUBE SUB-ASSY, SUCTION, B
88707-52190

NSP110

 1
88707-52190

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88707-52190

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-52330

NSP110

 1
88711-52330

NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88711-52330

NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88716A - PIPE, COOLER REFRIGERANT LIQUID, A
88716-52510

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88716-52510

NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88718L - CLAMP, PIPING
88718-52260

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88718-52260

NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88719A - SENSOR, AIR CONDITIONER PRESSURE
88719-33020

NLP11#,NSP110

FRONT AIR CONDITIONER-DEALER OPTION

 1
88719-33020

NLP11#..LHD..N;NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88719-33020

NLP11#,NSP110

 1
Common parts
88718-13060
88718-52221
90091-40623
90091-40647
91551-A0618
Linked diagrams
8714
8719
