NSP110L-AHFNKW (2009)
Toyota Urban Cruiser
Production
Jan 2009
-
Apr 2016
Engine
1NRFE
Transmission
6F MTM
Displacement
2500cc
Power
168 HP (125 kW)

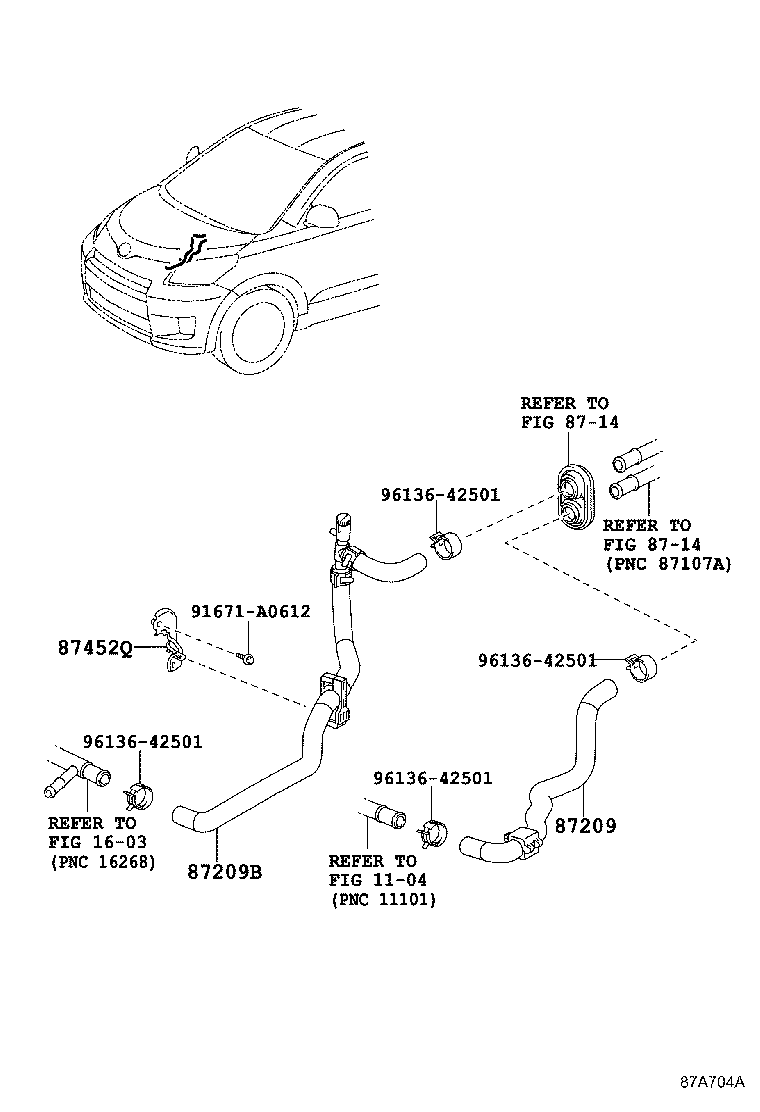

(0901- )NSP110
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-52230 |
NSP110 |
1 | ||
| 87209B - HOSE SUB-ASSY, WATER, B | ||||
| 87209-52240 |
NSP110 |
1 | ||
| 87209-52250 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87452Q - BRACKET, HEATER, NO.1 | ||||
| 87452-52060 |
NSP110 |
1 | ||
| Common parts | ||||
| 91671-A0612 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 8714 | ||||

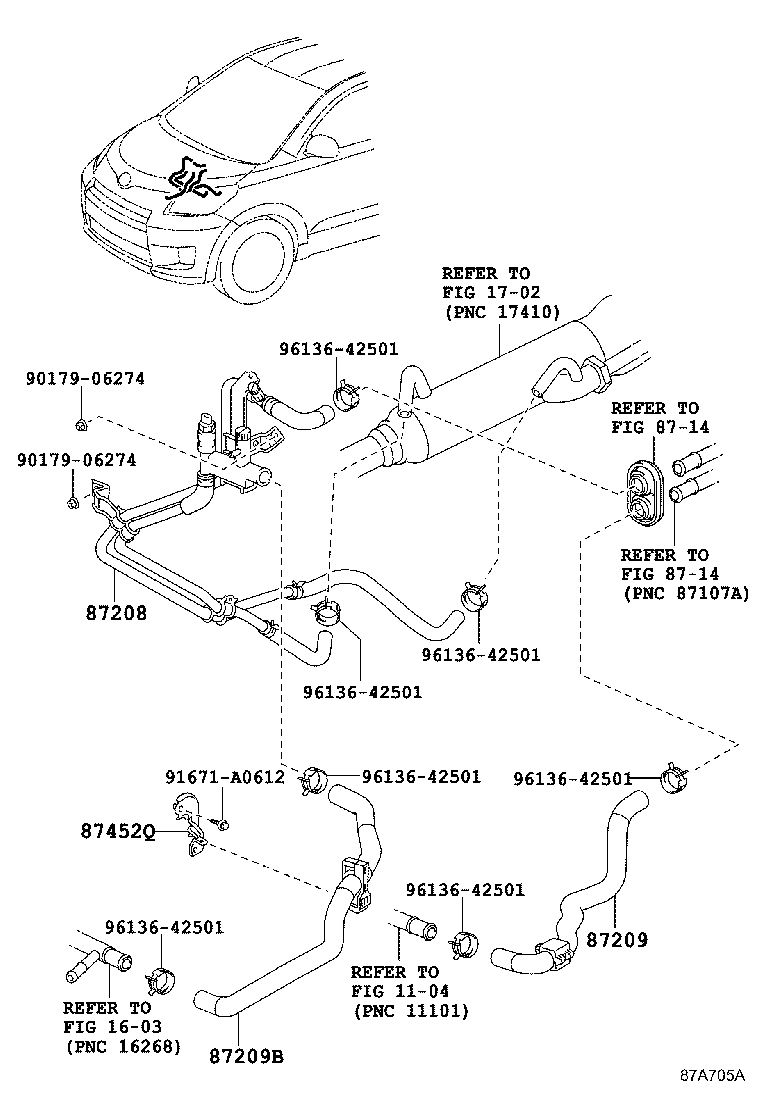

(0901- )NSP110..LHD
Click highlighted areas on diagram
COLD SPEC
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87208 - PIPE SUB-ASSY, HEATER WATER | ||||
| 87208-52010 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87209 - HOSE SUB-ASSY, WATER | ||||
| 87209-52230 |
NSP110 |
1 | ||
| 87209B - HOSE SUB-ASSY, WATER, B | ||||
| 87209-52240 |
NSP110 |
1 | ||
| 87209-52250 |
NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87452Q - BRACKET, HEATER, NO.1 | ||||
| 87452-52060 |
NSP110 |
1 | ||
| Common parts | ||||
| 90179-06274 | ||||
| 91671-A0612 | ||||
| 96136-42501 | ||||
| Linked diagrams | ||||
| 1104 | ||||
| 1603 | ||||
| 1702 | ||||
| 8714 | ||||
