NSP110L-AHFNKW (2009)
Toyota Urban Cruiser

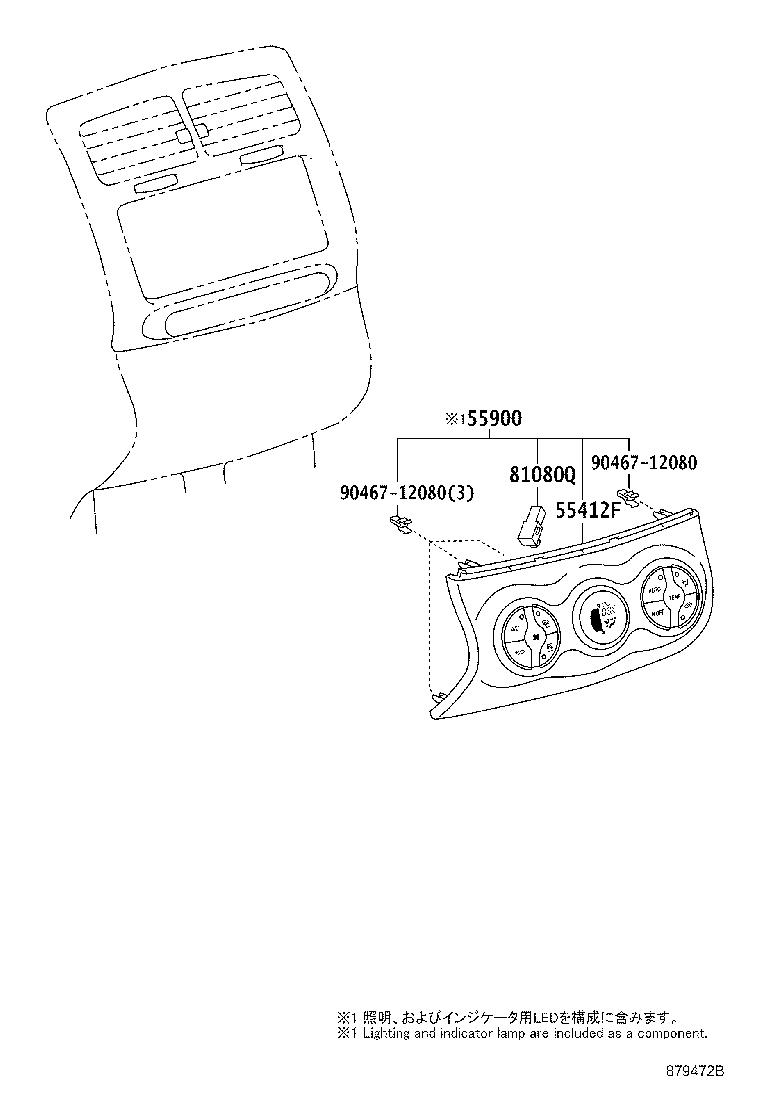

ILLUST NO. 1 OF 3(0901- )N
CONTROL PANEL-AUTO
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55412F - PANEL, INSTRUMENT CLUSTER FINISH, CENTER | ||||
| 55410-52140B0 |
NLP11#,NSP110..N SILVER,TRIM1# |
1 | ||
| 55410-52140B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,SILVER,TRIM1# |
1 | ||
| 55410-52140B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),SILVER,TRIM1# |
1 | ||
| 55410-52200B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM10 |
1 | ||
| 55410-52200B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM10 |
1 | ||
| 55410-52200C0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),BLACK,TRIM10 |
1 | ||
| 55410-52140B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),SILVER,TRIM1# |
1 | ||
| 55410-52200B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,GRAY,TRIM10 |
1 | ||
| 55410-52200B0 |
NLP11#,NSP110..N GRAY,TRIM10 |
1 | ||
| 55410-52200B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM1# |
1 | ||
| 55410-52200C0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),BLACK,TRIM10 |
1 | ||
| 55410-52200B0 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 55410-52200B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,GRAY,TRIM1# |
1 | ||
| 55410-52200C0 |
NLP11#,NSP110..N BLACK,TRIM10 |
1 | ||
| 55410-52200B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM1# |
1 | ||
| 55410-52200C0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM10 |
1 | ||
| 55900 - CONTROL ASSY, AIR CONDITIONER | ||||
| 55900-52640B0 |
NLP11#,NSP110..N SILVER,TRIM1# |
1 | ||
| 55900-52640B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),SILVER,TRIM1# |
1 | ||
| 55900-52770B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM10 |
1 | ||
| 55900-52770C0 |
NLP11#,NSP110..N BLACK,TRIM10 |
1 | ||
| 55900-52770B0 |
NLP11#,NSP110..N GRAY,TRIM10 |
1 | ||
| 55900-52770B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM10 |
1 | ||
| 55900-52640B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),SILVER,TRIM1# |
1 | ||
| 55900-52770B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,GRAY,TRIM10 |
1 | ||
| 55900-52770C0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),BLACK,TRIM10 |
1 | ||
| 55900-52770B0 |
NLP11#,NSP110..N GRAY,TRIM1# |
1 | ||
| 55900-52770B0 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM1# |
1 | ||
| 55900-52770B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,GRAY,TRIM1# |
1 | ||
| 55900-52770C0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,BLACK,TRIM10 |
1 | ||
| 55900-52640B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION,SILVER,TRIM1# |
1 | ||
| 55900-52770C0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),BLACK,TRIM10 |
1 | ||
| 55900-52770B0 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI),GRAY,TRIM1# |
1 | ||
| 81080Q - LAMP ASSY, INTERIOR ILLUMINATION, NO.1 | ||||
| 81080-30040 |
NLP11#,NSP110..N |
1 | ||
| 81080-30040 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 81080-48010 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 81080-48010 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 81080-48010 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 81080-30040 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 81080-48010 |
NLP11#,NSP110..N |
1 | ||
| 81080-30040 |
NLP11#,NSP110..N HEATER CONTROL PANEL-MANUAL&FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| Common parts | ||||
| 90467-12080 | ||||

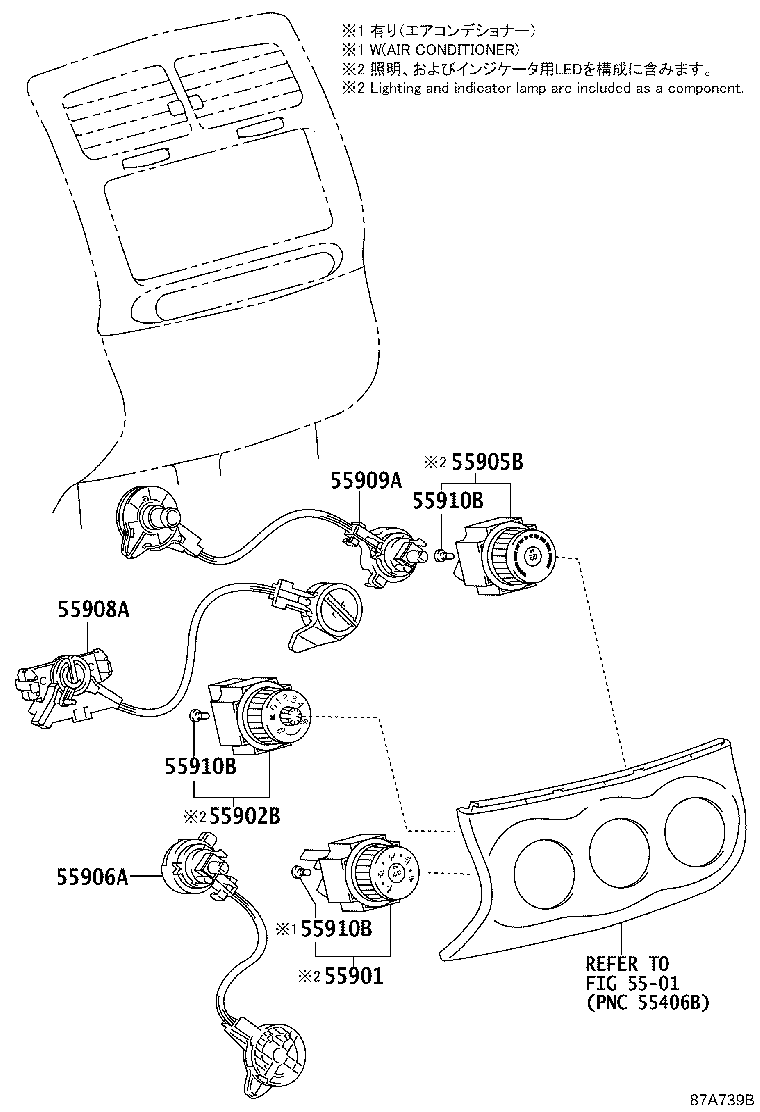

ILLUST NO. 1 OF 3(0901- )
CONTROL PANEL-MANUAL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55901 - BASE SUB-ASSY, HEATER CONTROL | ||||
| 55901-52230 |
NLP11#,NSP110..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 55901-52230 |
NLP11#,NSP110..R |
1 | ||
| 55901-52230 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55901-52310 |
NLP11#,NSP110..R FRONT AIR CONDITIONER-WITHOUT(W/H ONLY) |
1 | ||
| 55902B - CONTROL SUB-ASSY, HEATER | ||||
| 55902-52080 |
NLP11#,NSP110..R |
1 | ||
| 55902-52080 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55905B - KNOB, HEATER CONTROL, NO.2 | ||||
| 55903-52230 |
NLP11#,NSP110..R |
1 | ||
| 55903-52240 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 55903-52230 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55903-52240 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55903-52231 |
NLP11#,NSP110..R |
1 | ||
| 55903-52241 |
NSP110..LHD..R COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 55903-52231 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55903-52241 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-52132 |
NLP11#,NSP110..R |
1 | ||
| 55906-52132 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-52120 |
NLP11#,NSP110..LHD..R |
1 | ||
| 55908-52120 |
NSP110..LHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-52120 |
NLP11#,NSP110..R |
1 | ||
| 55909-52120 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90010-01142 |
NLP11#,NSP110..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90010-01142 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90010-01142 |
NLP11#,NSP110..R |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90010-01142 |
NLP11#,NSP110..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90010-01142 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90010-01142 |
NLP11#,NSP110..R |
1 | ||
| 55910B - BULB, HEATER CONTROL | ||||
| 90010-01142 |
NSP110..N;NLP11#..RHD..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90010-01142 |
NLP11#,NSP110..R FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 90010-01142 |
NSP110..LHD..N COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 90010-01142 |
NLP11#,NSP110..R |
1 | ||
| Linked diagrams | ||||
| 5501 | ||||

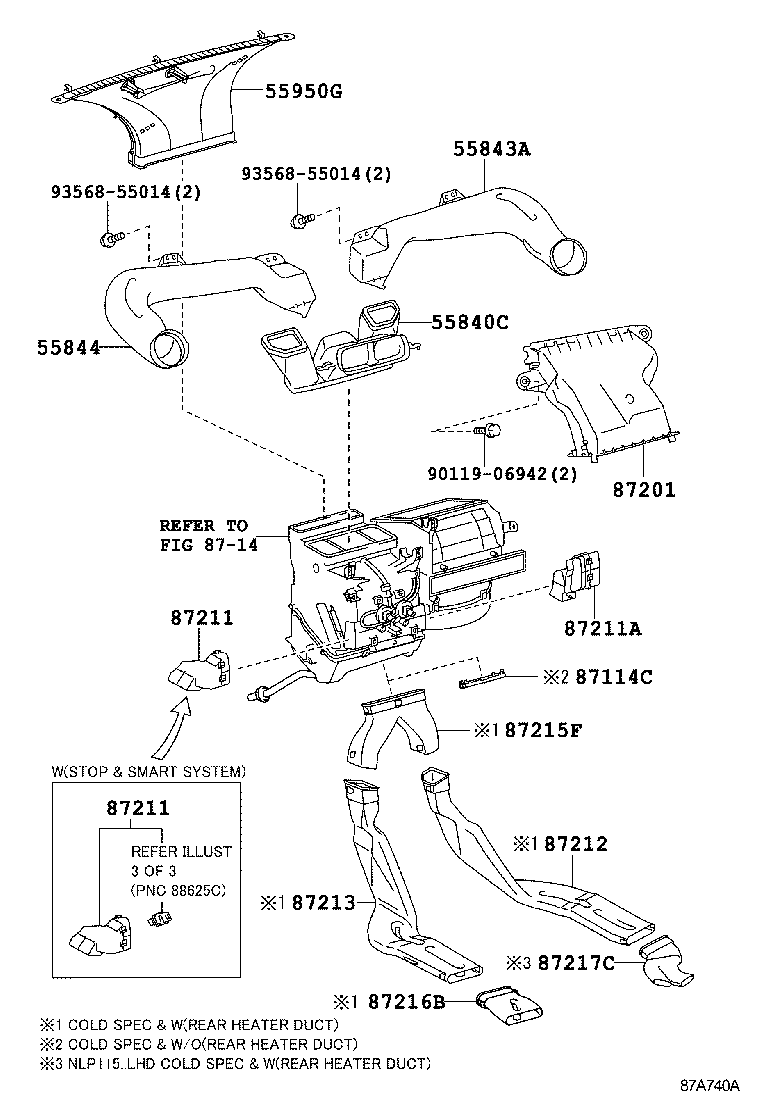

ILLUST NO. 2 OF 3(0901- )LHD
AIR DUCT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55840C - DUCT ASSY, HEATER TO REGISTER, NO.6 | ||||
| 55840-52070 |
NLP11#,NSP110..LHD |
1 | ||
| 55843A - DUCT, HEATER TO REGISTER, NO.1 | ||||
| 55843-52310 |
NLP11#,NSP110..LHD |
1 | ||
| 55844 - DUCT, HEATER TO REGISTER, NO.2 | ||||
| 55844-52210 |
NLP11#,NSP110..LHD |
1 | ||
| 55950G - NOZZLE ASSY, DEFROSTER | ||||
| 55950-52150 |
NLP11#,NSP110 |
1 | ||
| 87201 - DUCT SUB-ASSY, AIR, NO.1 | ||||
| 87201-52081 |
NLP11#,NSP110..LHD |
1 | ||
| 87201-52080 |
NLP11#,NSP110..LHD |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52030 |
NLP11#,NSP110..LHD |
1 | ||
| 87201-52100 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 87211-52031 |
NLP11#,NSP110..LHD |
1 | ||
| 87201-52101 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 87211 - DUCT, AIR, NO.1 | ||||
| 87211-52031 |
NLP11#,NSP110..LHD |
1 | ||
| 87211-52030 |
NLP11#,NSP110..LHD |
1 | ||
| 87201-52100 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 87201-52101 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87211-52020 |
NSP110..LHD..R FRONT AIR CONDITIONER-DEALER OPTION,RHD |
1 | ||
| 87211-52040 |
NLP11#,NSP110..LHD |
1 | ||
| 87211-52040 |
NSP110..LHD..R FRONT AIR CONDITIONER-DEALER OPTION,LHD |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-52100 |
NLP11#,NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87213-52070 |
NLP11#,NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87215F - DUCT, AIR, REAR NO.3 | ||||
| 87215-52050 |
NLP11#,NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| 87216B - DUCT, AIR, REAR NO.4 | ||||
| 87216-52040 |
NLP11#,NSP110..LHD COLD SPEC & WITH(REAR HEATER DUCT) |
1 | ||
| Common parts | ||||
| 90119-06942 | ||||
| 93568-55014 | ||||
| Linked diagrams | ||||
| 8714 | ||||

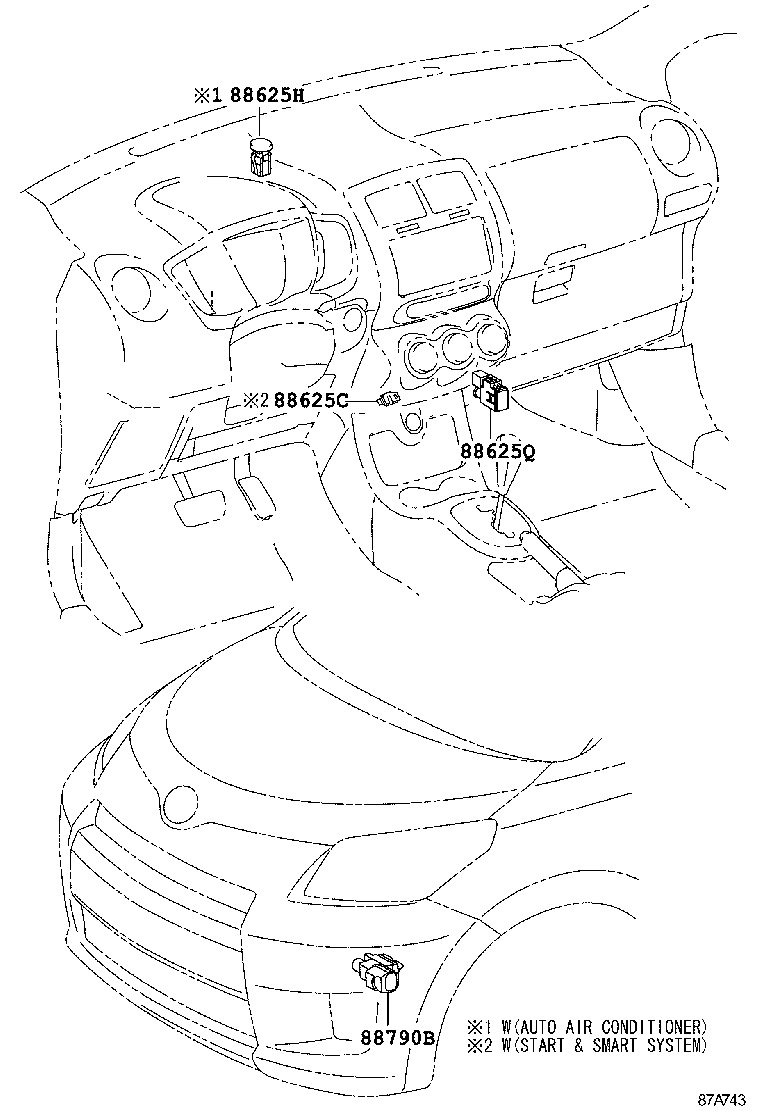

ILLUST NO. 3 OF 3(0901- )LHD
SENSOR
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88625C - THERMISTOR, COOLER | ||||
| 88625-50130 |
NSP110..LHD WITH(STOP & START SYSTEM) |
1 | ||
| 88625H - THERMISTOR, COOLER (SOLAR SENSOR) | ||||
| 88625-47031 |
NLP11#,NSP110..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88625-47031 |
NLP11#,NSP110..N FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88625-47031 |
NLP11#,NSP110..N |
1 | ||
| 88625Q - THERMISTOR, COOLER (ROOM TEMP. SENSOR) | ||||
| 88625-47021 |
NLP11#,NSP110..N |
1 | ||
| 88625-47021 |
NLP11#,NSP110..N FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI) |
1 | ||
| 88625-47021 |
NLP11#,NSP110..N FRONT AIR CONDITIONER-DEALER OPTION |
1 | ||
| 88790B - THERMISTOR ASSY | ||||
| 88790-22131 |
NLP11#,NSP110 |
1 | ||
