NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0901- )

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

ILLUST NO. 1 OF 2(0901- )LHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER

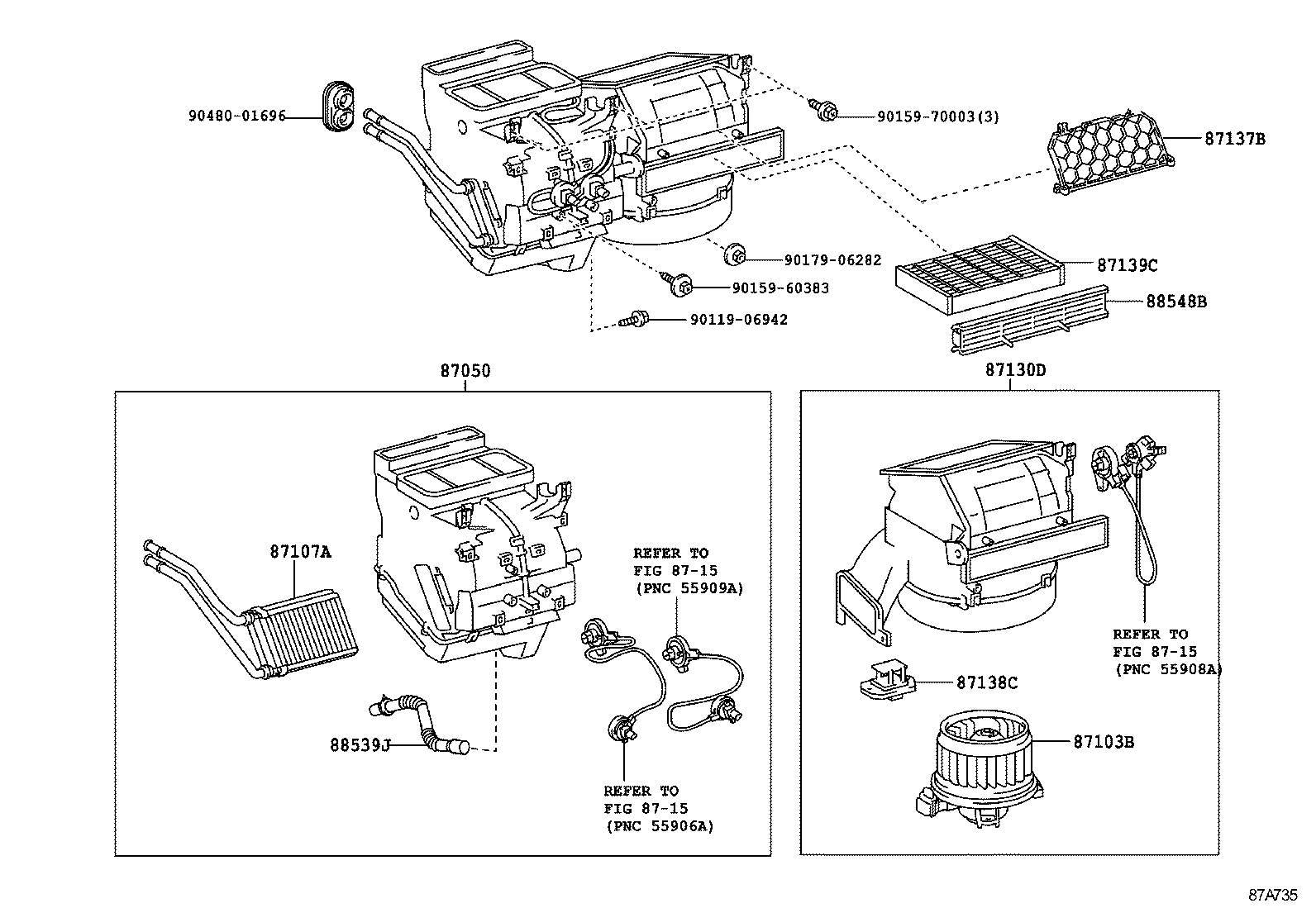

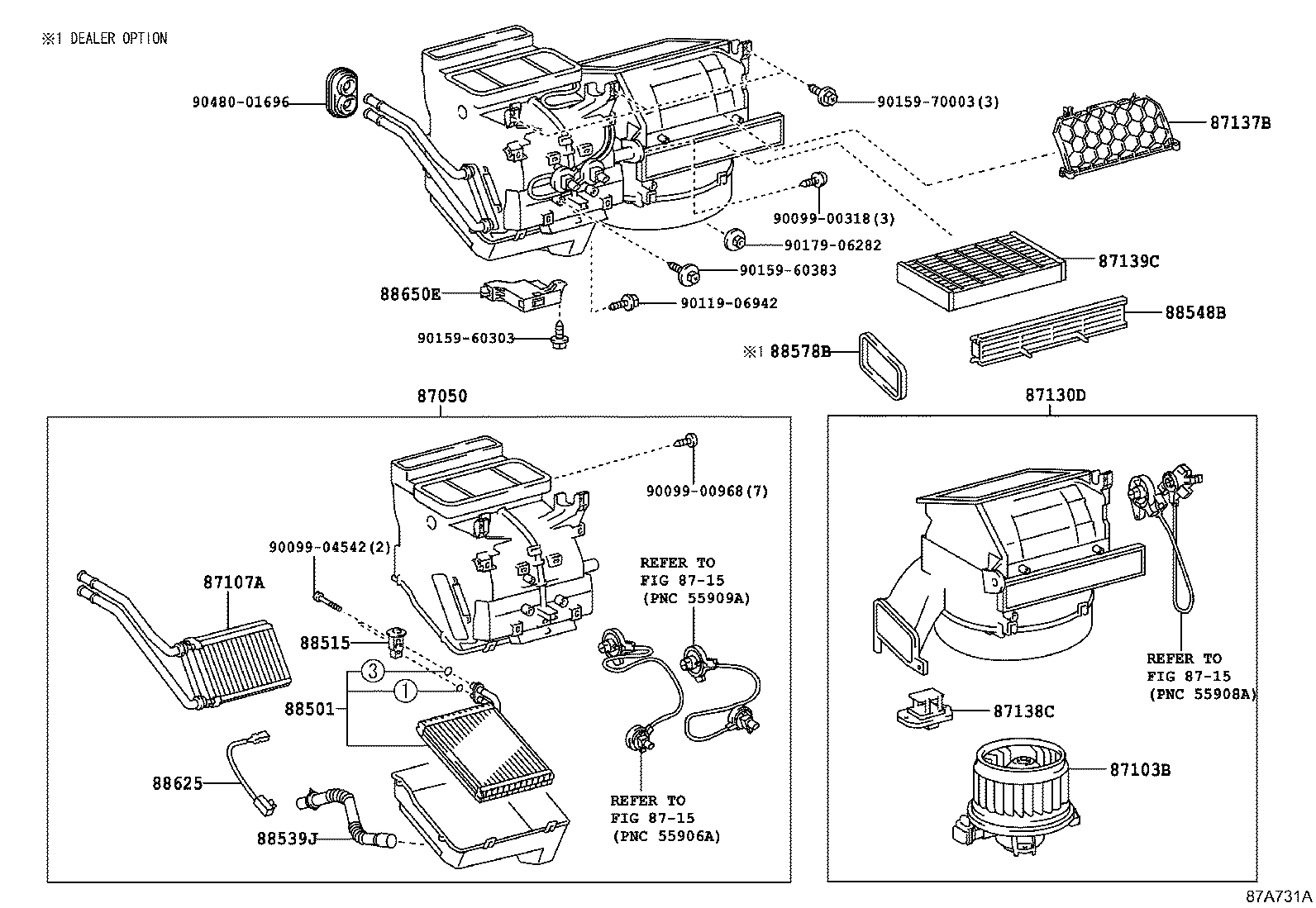

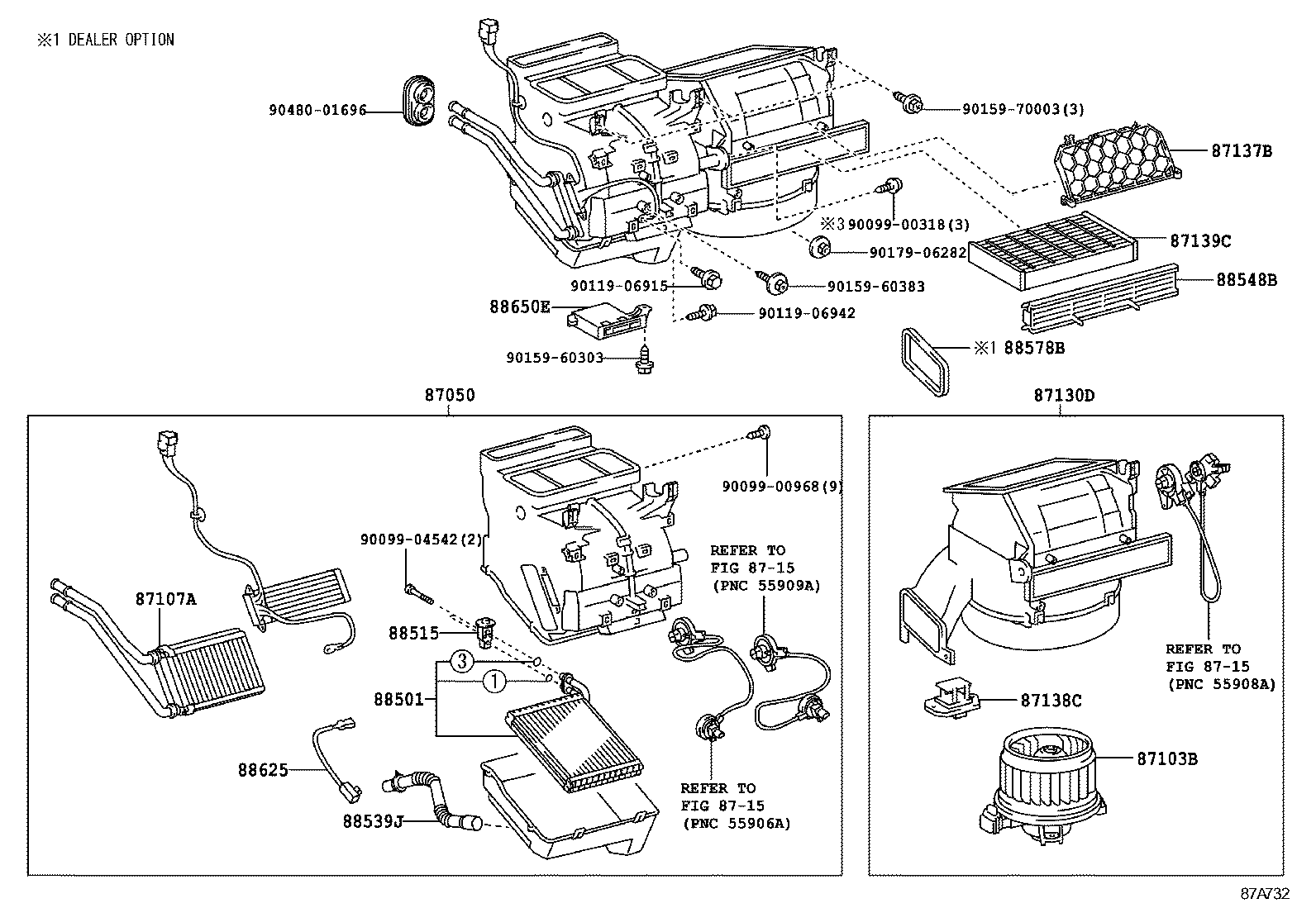

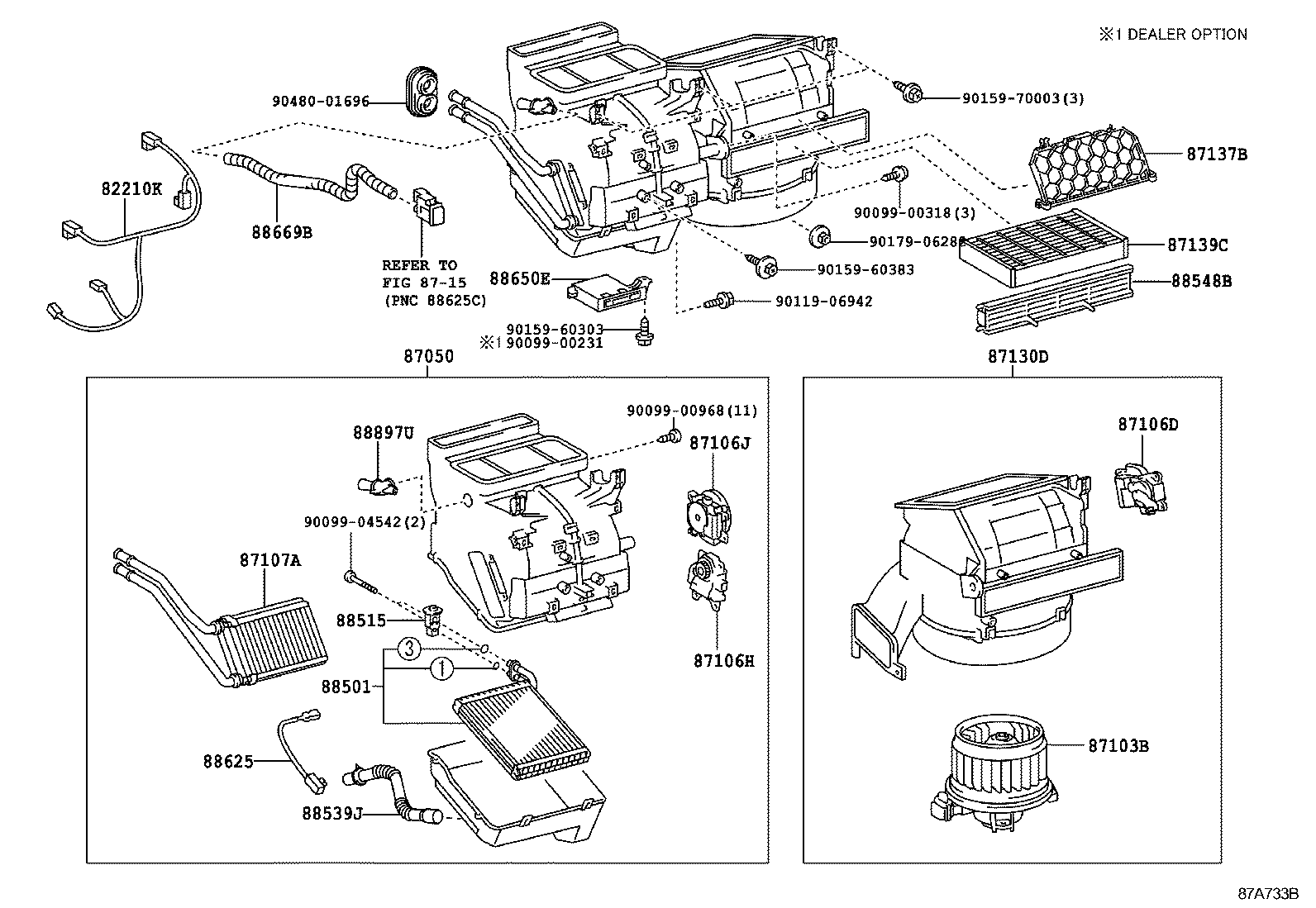

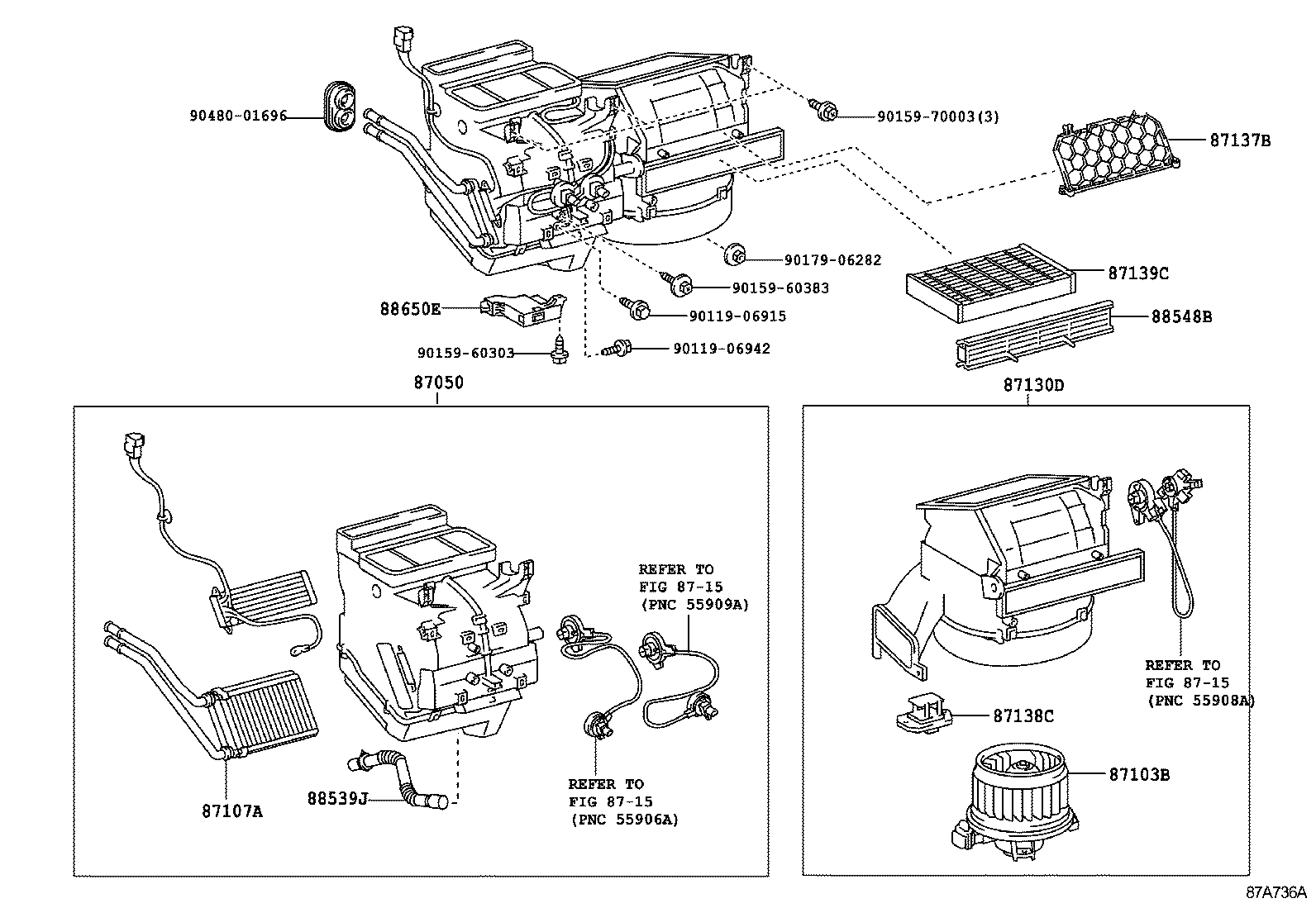

diagram 87050 87103B 87107A 87130D 87137B 87138C 87139C 8715 8715 8715 88501 88515 88539J 88548B 88578B 88625 88650E 9009900318 9009900968 9009904542 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52062

NLP11#,NSP110..LHD..R

 1
87050-52071

NLP11#,NSP110..LHD..N

 1
87050-52062

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52062

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52063

NLP11#,NSP110..LHD..R

 1
87050-52063

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87050-52063

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52250

NLP11#,NSP110..LHD..N

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87103-52140

NLP11#,NSP110..LHD..R

 1
87103-52152

NLP11#,NSP110..LHD..N

 1
87103-52141

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52151

NLP11#,NSP110..LHD..N

 1
87103-52141

NLP11#,NSP110..LHD..R

 1
87103-52141

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52082

NLP11#,NSP110..LHD..N

 1
87130-52102

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..R

 1
87130-52092

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52092

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52102

NLP11#,NSP110..LHD..N

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87138C - RESISTOR, BLOWER
87138-52030

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..R

 1
87139C - FILTER, CLEAN AIR
87139-52040

NLP11#,NSP110

 1
87139-30040

NLP11#,NSP110

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52091

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

 1
88501-52102

NLP11#,NSP110

 1
88501-52101

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52101

NLP11#,NSP110..LHD..R

 1
88501-52101

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52101

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88501-52091

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88501-52101

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52103

NLP11#,NSP110

 1
88501-52091

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88515-26070

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88515-26070

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NLP11#,NSP110

 1
88515-68010

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52040

NLP11#,NSP110..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-52100

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88578-52100

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NLP11#,NSP110

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52361

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52291

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52610

NLP11#,NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88650-52610

NLP11#,NSP110..N

 1
88650-52640

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY),DEALEROPTION

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52630

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
Common parts
90099-00318
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

ILLUST NO. 1 OF 2(0901- )LHD

Click highlighted areas on diagram

MANUAL AIR CONDITIONER & W(HEATER)

diagram 87050 87103B 87107A 87130D 87137B 87138C 87139C 8715 8715 8715 88501 88515 88539J 88548B 88578B 88625 88650E 9009900318 9009900968 9009904542 9011906915 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52062

NLP11#,NSP110..LHD..R

 1
87050-52071

NLP11#,NSP110..LHD..N

 1
87050-52062

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52062

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52063

NLP11#,NSP110..LHD..R

 1
87050-52063

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87050-52063

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52250

NLP11#,NSP110..LHD..N

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87103-52140

NLP11#,NSP110..LHD..R

 1
87103-52141

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52151

NLP11#,NSP110..LHD..N

 1
87103-52152

NLP11#,NSP110..LHD..N

 1
87103-52141

NLP11#,NSP110..LHD..R

 1
87103-52141

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52082

NLP11#,NSP110..LHD..N

 1
87130-52102

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..R

 1
87130-52092

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52092

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52102

NLP11#,NSP110..LHD..N

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87138C - RESISTOR, BLOWER
87138-52030

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..R

 1
87139C - FILTER, CLEAN AIR
87139-52040

NLP11#,NSP110

 1
87139-30040

NLP11#,NSP110

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52091

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

 1
88501-52102

NLP11#,NSP110

 1
88501-52101

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52101

NLP11#,NSP110..LHD..R

 1
88501-52101

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52101

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88501-52091

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88501-52101

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52103

NLP11#,NSP110

 1
88501-52091

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88515-26070

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88515-26070

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NLP11#,NSP110

 1
88515-68010

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52040

NLP11#,NSP110..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
88578B - PACKING, COOLING UNIT, NO.1
88578-52100

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88578-52100

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NLP11#,NSP110

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52361

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52291

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52610

NLP11#,NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88650-52610

NLP11#,NSP110..N

 1
88650-52640

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY),DEALEROPTION

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52630

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
Common parts
90099-00318
90099-00968
90099-04542
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

ILLUST NO. 1 OF 2(0901- )NSP110..LHD ; (0901- )NLP11#..LHD..N

Click highlighted areas on diagram

AUTO AIR CONDITIONER

diagram 82210K 87050 87103B 87106D 87106H 87106J 87107A 87130D 87137B 87139C 8715 88501 88515 88539J 88548B 88625 88650E 88669B 88897U 9009900231 9009900318 9009900968 9009904542 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
82210K - HARNESS ASSY, AIR CONDITIONER
82212-52040

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
82212-52040

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
82212-52041

NSP110..N

 1
82212-52040

NLP11#,NSP110..LHD..N

 1
82212-52041

NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
82212-52041

NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52062

NLP11#,NSP110..LHD..R

 1
87050-52071

NLP11#,NSP110..LHD..N

 1
87050-52062

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52062

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52063

NLP11#,NSP110..LHD..R

 1
87050-52063

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87050-52063

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52250

NLP11#,NSP110..LHD..N

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87103-52140

NLP11#,NSP110..LHD..R

 1
87103-52141

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52151

NLP11#,NSP110..LHD..N

 1
87103-52152

NLP11#,NSP110..LHD..N

 1
87103-52141

NLP11#,NSP110..LHD..R

 1
87103-52141

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-52100

NLP11#,NSP110..N

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-52080

NLP11#,NSP110..N

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-52090

NLP11#,NSP110..N

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52082

NLP11#,NSP110..LHD..N

 1
87130-52102

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..R

 1
87130-52092

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52092

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52102

NLP11#,NSP110..LHD..N

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87139C - FILTER, CLEAN AIR
87139-52040

NLP11#,NSP110

 1
87139-30040

NLP11#,NSP110

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-52091

NLP11#,NSP110..RHD;NLP11#,NSP110..LHD..N

 1
88501-52102

NLP11#,NSP110

 1
88501-52101

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52101

NLP11#,NSP110..LHD..R

 1
88501-52101

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52101

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88501-52091

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88501-52101

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88501-52103

NLP11#,NSP110

 1
88501-52091

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515 - VALVE, COOLER EXPANSION
88515-26070

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88515-26070

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88515-26070

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88515-26070

NLP11#,NSP110

 1
88515-68010

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52040

NLP11#,NSP110..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
88625 - THERMISTOR, COOLER, NO.1
88625-26090

NLP11#,NSP110

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52361

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52291

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52610

NLP11#,NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88650-52610

NLP11#,NSP110..N

 1
88650-52640

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY),DEALEROPTION

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52630

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88669B - HOSE, COOLER AIR
88669-52050

NLP11#,NSP110..N

 1
88897U - PIPE, ASPIRATOR
88897-32090

NLP11#,NSP110..N

 1
Common parts
90099-00231
90099-00318
90099-00968
90099-04542
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

ILLUST NO. 1 OF 2(0901- )LHD

Click highlighted areas on diagram

W/O(AIR CONDITIONER)

diagram 87050 87103B 87107A 87130D 87137B 87138C 87139C 8715 8715 8715 88539J 88548B 9011906942 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52062

NLP11#,NSP110..LHD..R

 1
87050-52071

NLP11#,NSP110..LHD..N

 1
87050-52062

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52062

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52063

NLP11#,NSP110..LHD..R

 1
87050-52063

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87050-52063

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52250

NLP11#,NSP110..LHD..N

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87103-52140

NLP11#,NSP110..LHD..R

 1
87103-52141

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52151

NLP11#,NSP110..LHD..N

 1
87103-52152

NLP11#,NSP110..LHD..N

 1
87103-52141

NLP11#,NSP110..LHD..R

 1
87103-52141

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52082

NLP11#,NSP110..LHD..N

 1
87130-52102

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..R

 1
87130-52092

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52092

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52102

NLP11#,NSP110..LHD..N

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87138C - RESISTOR, BLOWER
87138-52030

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..R

 1
87139C - FILTER, CLEAN AIR
87139-52040

NLP11#,NSP110

 1
87139-30040

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52040

NLP11#,NSP110..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
Common parts
90119-06942
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715

ILLUST NO. 1 OF 2(0901- )LHD

Click highlighted areas on diagram

W/O(AIR CONDITIONER) & W(HEATER)

diagram 87050 87103B 87107A 87130D 87137B 87138C 87139C 8715 8715 8715 88539J 88548B 88650E 9011906915 9011906942 9015960303 9015960383 9015970003 9017906282 9048001696
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-52062

NLP11#,NSP110..LHD..R

 1
87050-52071

NLP11#,NSP110..LHD..N

 1
87050-52062

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52062

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52063

NLP11#,NSP110..LHD..R

 1
87050-52063

NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52083

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87050-52063

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52113

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87050-52250

NLP11#,NSP110..LHD..N

 1
87050-52102

NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87050-52102

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-52140

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52140

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87103-52140

NLP11#,NSP110..LHD..R

 1
87103-52141

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87103-52141

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52151

NLP11#,NSP110..LHD..N

 1
87103-52152

NLP11#,NSP110..LHD..N

 1
87103-52141

NLP11#,NSP110..LHD..R

 1
87103-52141

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87103-52141

NLP11#,NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-52060

NLP110,NSP110

 1
87107-52061

NLP11#,NSP110

 1
87130D - BLOWER ASSY
87130-52082

NLP11#,NSP110..LHD..N

 1
87130-52102

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..R

 1
87130-52092

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
87130-52072

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)

 1
87130-52092

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52092

NLP11#,NSP110..LHD..R

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#..LHD;NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
87130-52122

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87130-52092

NLP11#,NSP110..LHD..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87130-52102

NLP11#,NSP110..LHD..N

 1
87130-52132

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
87137B - COVER, HEATER BLOWER
87137-52010

NLP11#,NSP110..R

CLEAN AIR FILTER-WITHOUT

 1
87138C - RESISTOR, BLOWER
87138-52030

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..LHD..N

COLD SPEC & WITHOUT(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
87138-52030

NLP11#,NSP110..R

 1
87139C - FILTER, CLEAN AIR
87139-52040

NLP11#,NSP110

 1
87139-30040

NLP11#,NSP110

 1
88539J - HOSE, DRAIN COOLER
88539-52020

NLP11#,NSP110

 1
88539-52040

NLP11#,NSP110..LHD

 1
88548B - CASE, AIR FILTER
88548-52040

NLP11#,NSP110

 1
88650E - AMPLIFIER ASSY, AIR CONDITIONER, NO.1
88650-52630

NLP11#,NSP110..R

 1
88650-52361

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52291

NLP11#,NSP110..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52610

NLP11#,NSP110..N

FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52630

NLP11#,NSP110..N

FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52630

NLP11#,NSP110..R

FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)

 1
88650-52610

NLP11#,NSP110..N

 1
88650-52640

NSP110..LHD..N

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-MANUAL(B/RESI COMP/VARI)

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY),DEALEROPTION

 1
88650-52640

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-DEALER OPTION

 1
88650-52650

NSP110..LHD..R

COLD SPEC & WITH(REAR HEATER DUCT)&FRONT AIR CONDITIONER-WITHOUT(W/H ONLY)

 1
88650-52630

NLP11#,NSP110..LHD..R

FRONT AIR CONDITIONER-DEALER OPTION

 1
Common parts
90119-06915
90119-06942
90159-60303
90159-60383
90159-70003
90179-06282
90480-01696
Linked diagrams
8715
