NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )N

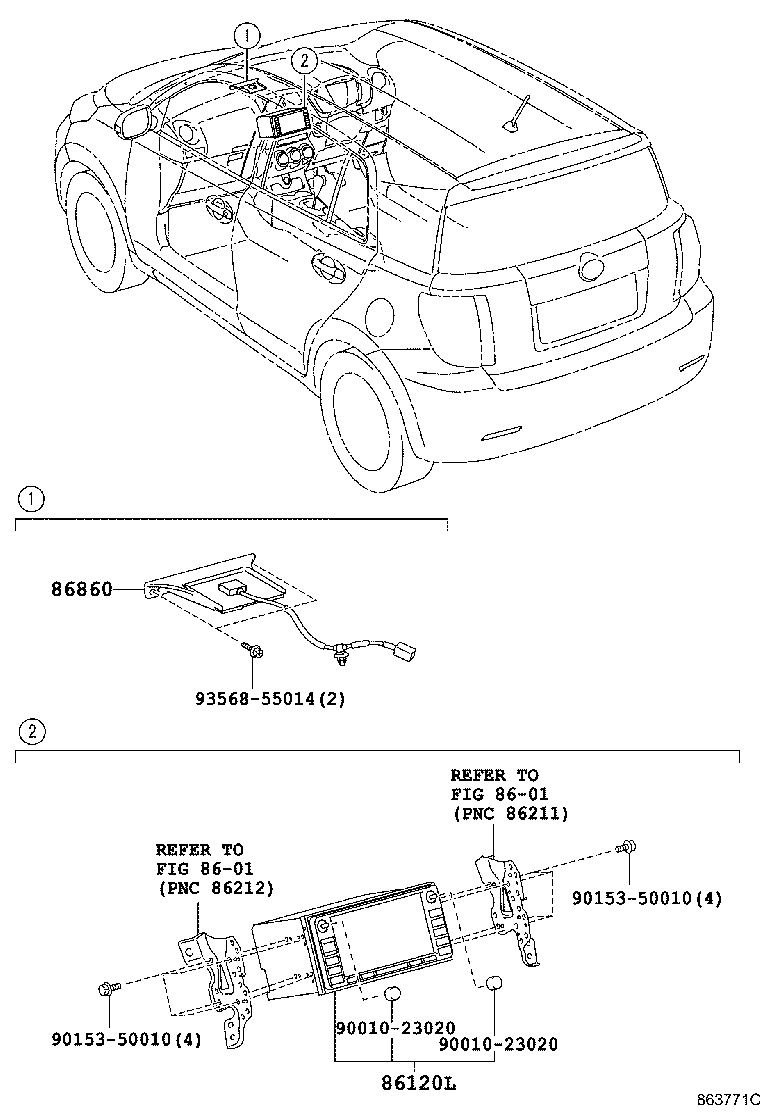

Click highlighted areas on diagram

diagram 8601 8601 86120L 86860 9001023020 9001023020 9015350010 9015350010 9356855014
Part # Description Qty Price
86120L - RECEIVER ASSY, NAVIGATION
86120-52620

NLP11#,NSP110..N

AISHIN AW,AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN

 1
86860 - ANTENNA ASSY, NAVIGATION
86860-52170

NLP11#,NSP110..N

AUDIO(OVERSEAS MARKET)-AVN 6SPEAKER BLUE TOOTH MULTI 2DIN

 1
Common parts
90010-23020
90153-50010
93568-55014
Linked diagrams
8601
