NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

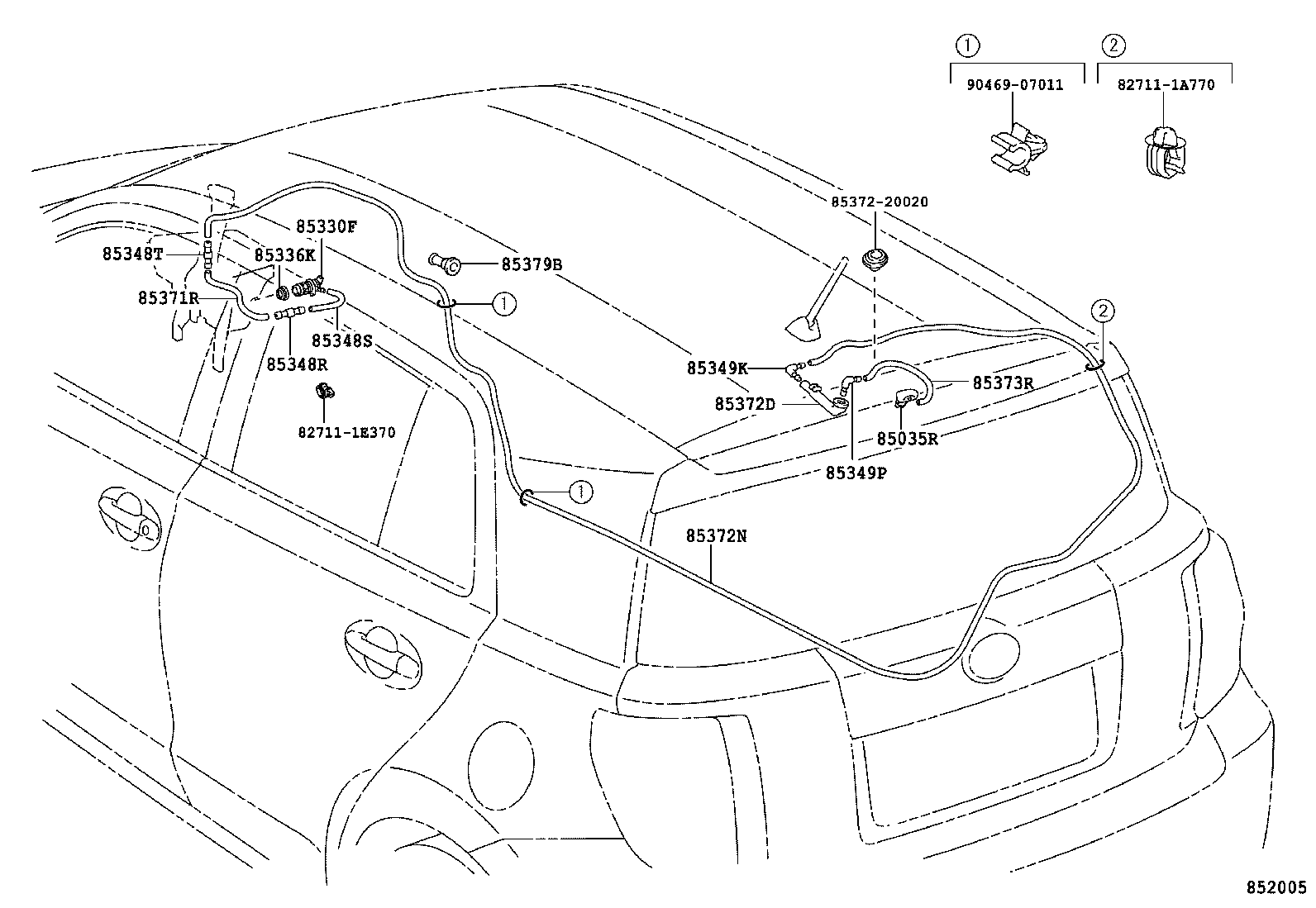

Click highlighted areas on diagram

diagram 827111A770 827111E370 85035R 85330F 85336K 85348R 85348S 85348T 85349K 85349P 85371R 8537220020 85372D 85372N 85373R 85379B 9046907011
Part # Description Qty Price
85035R - NOZZLE SUB-ASSY, REAR WASHER
85391-52140

NLP11#,NSP110

 1
85330F - MOTOR & PUMP ASSY, RR WASHER
85330-60160

NLP11#,NSP110

 1
85336K - PROTECTOR, WASHER JAR
85336-60300

NLP11#,NSP110

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85349-89122

NLP11#,NSP110

 1
85348S - JOINT, REAR WASHER ELBOW, NO.1
85336-12230

NLP11#,NSP110

 1
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

NLP11#,NSP110

 1
85349K - JOINT, REAR WASHER ELBOW, NO.2
85355-20200

NLP11#,NSP110

 1
85349P - JOINT, REAR WASHER ELBOW, NO.3
85355-20200

NLP11#,NSP110

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
90099-33080

NLP11#,NSP110

*H,L=200

 1
85372D - GROMMET, REAR WASHER HOSE
85372-20040

NLP11#,NSP110

 1
85372N - HOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
90446-07001

NLP11#,NSP110

*H,L=4550

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33080

NLP11#,NSP110

*H,L=220

 1
85379B - GROMMET, WASHER, A
85379-52351

NLP11#,NSP110

 1
Common parts
82711-1A770
82711-1E370
85372-20020
90469-07011
