NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )

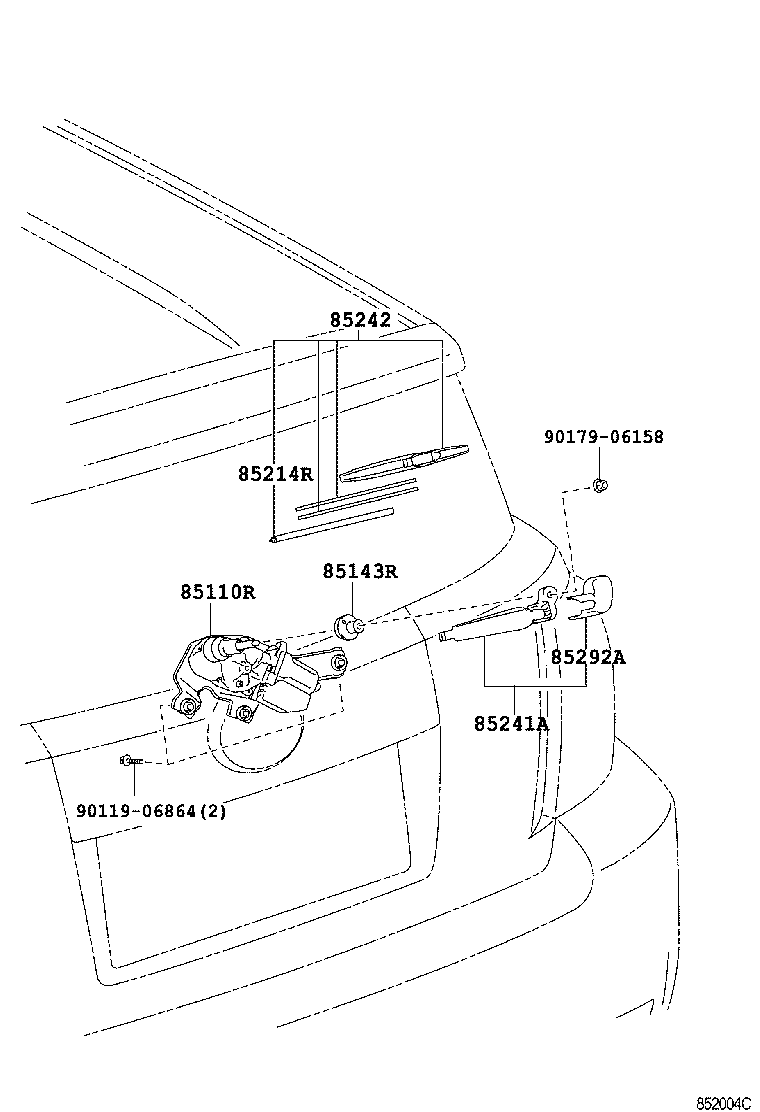

Click highlighted areas on diagram

diagram 85110R 85143R 85214R 85241A 85242 85292A 9011906864 9017906158
Part # Description Qty Price
85110R - MOTOR ASSY, REAR WIPER
85130-52150

NLP11#,NSP110

 1
85143R - GROMMET, REAR WIPER MOTOR
85143-42040

NLP11#,NSP110

 1
85214R - RUBBER, REAR WIPER
85214-52060

NLP11#,NSP110

 1
85241A - ARM, REAR WIPER
85241-52140

NLP11#,NSP110

 1
85242 - BLADE, RR WIPER
85242-52060

NLP11#,NSP110

 1
85292A - CAP, REAR WIPER ARM HEAD
85292-52040

NLP11#,NSP110

 1
Common parts
90119-06864
90179-06158
