NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )LHD

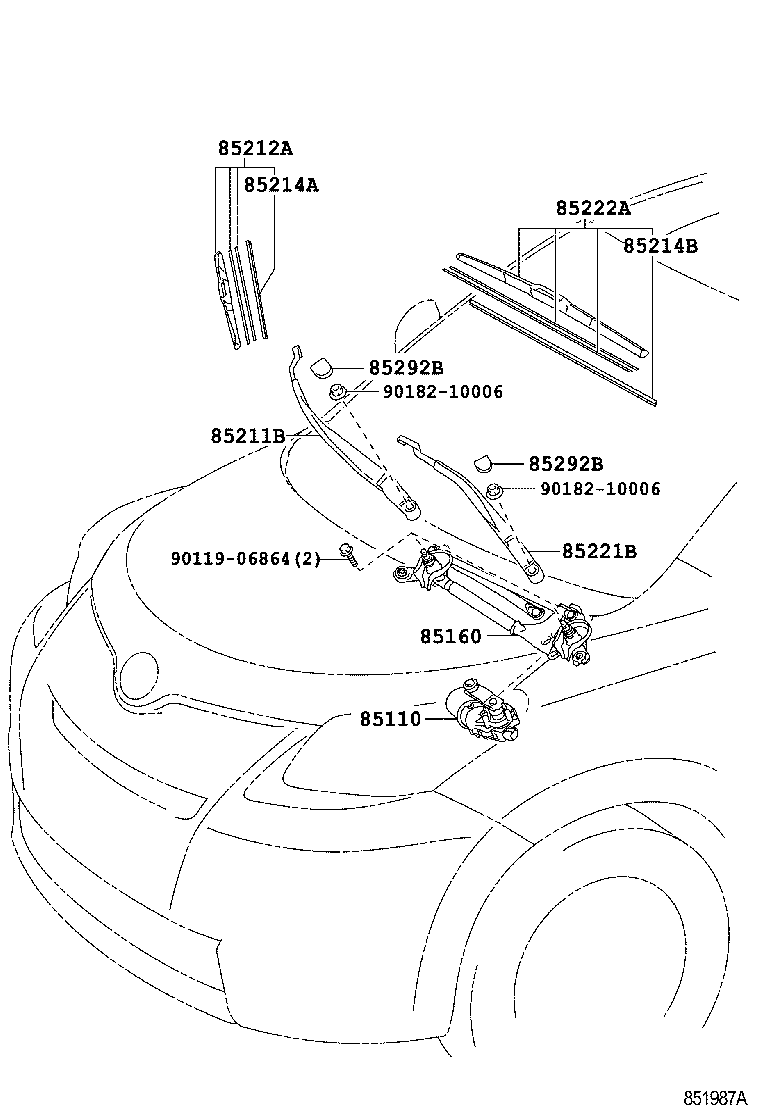

Click highlighted areas on diagram

diagram 85110 85160 85211B 85212A 85214A 85214B 85221B 85222A 85292B 85292B 9011906864 9018210006 9018210006
Part # Description Qty Price
85110 - MOTOR ASSY, WINDSHIELD WIPER
85110-52550

NLP11#,NSP110..LHD

 1
85160 - LINK ASSY, WINDSHIELD WIPER
85150-52390

NLP11#,NSP110..LHD

 1
85211B - ARM, FRONT WIPER, RH
85211-52350

NLP11#,NSP110..LHD

 1
85212A - BLADE, FR WIPER, RH
85212-52180

NLP11#,NSP110..LHD

 1
85214A - RUBBER, WIPER, RH
85214-68030

NLP11#,NSP110..LHD

 1
85214B - RUBBER, WIPER, LH
85214-30380

NLP11#,NSP110..LHD

 1
85221B - ARM, FRONT WIPER, LH
85221-52340

NLP11#,NSP110..LHD

 1
85222A - BLADE, FR WIPER, LH
85222-52180

NLP11#,NSP110..LHD

 1
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NLP11#,NSP110

 2
85292B - CAP, FRONT WIPER ARM HEAD
85292-13010

NLP11#,NSP110

 2
Common parts
90119-06864
90182-10006
