NSP110L-AHFNKW (2009)

Toyota Urban Cruiser

Production Jan 2009 - Apr 2016
Engine 1NRFE
Transmission 6F MTM
Displacement 2500cc
Power 168 HP (125 kW)

(0901- )NLP110,NSP110

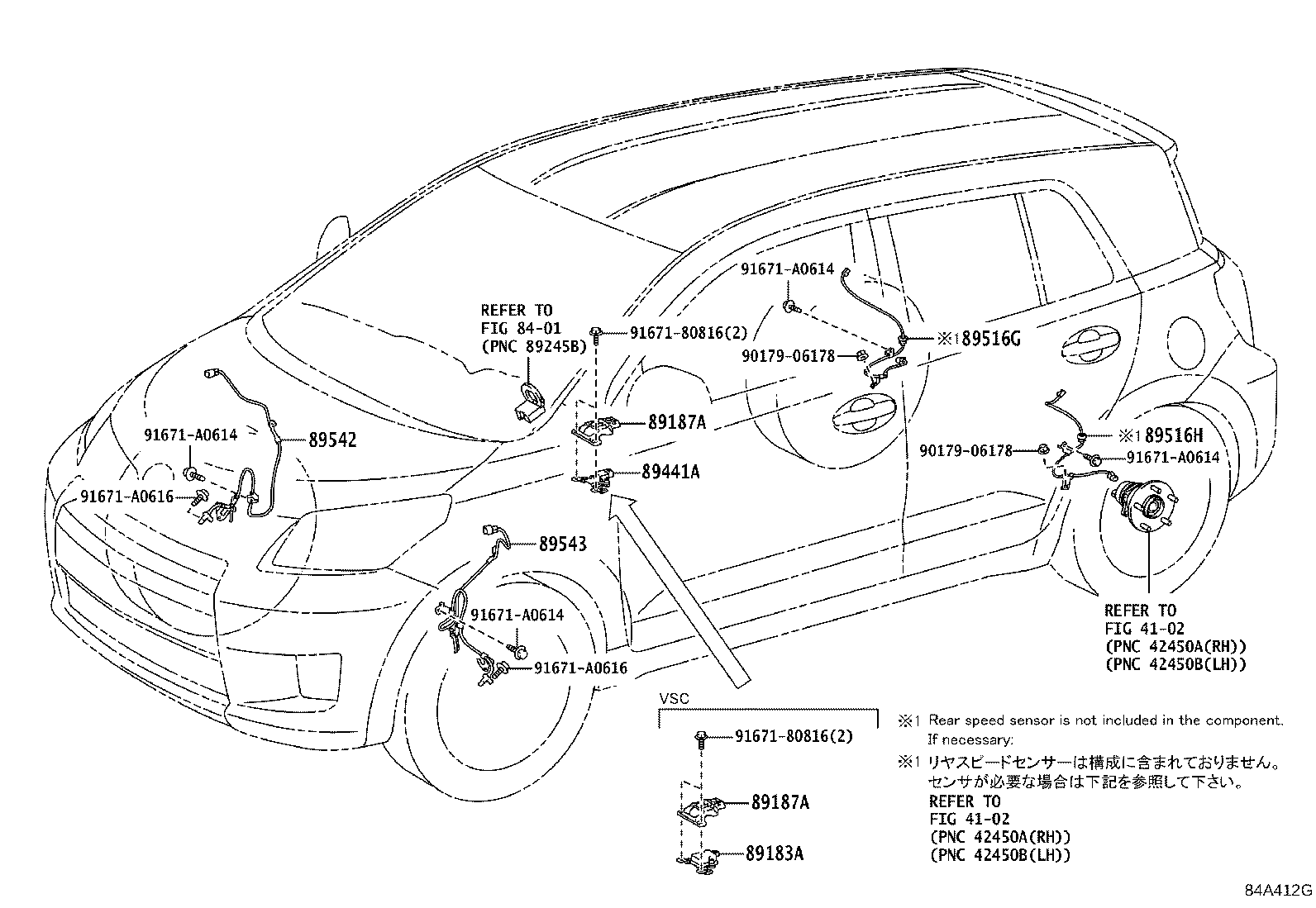

Click highlighted areas on diagram

diagram 4102 4102 8401 89183A 89187A 89187A 89441A 89516G 89516H 89542 89543 9017906178 9017906178 9167180816 9167180816 91671A0614 91671A0614 91671A0614 91671A0614 91671A0616 91671A0616
Part # Description Qty Price
89183A - SENSOR, YAWRATE
89180-52010

NLP110,NSP110..LHD

VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
89180-52050

NLP110,NSP110..LHD

VEHICLE STABILITY CONT-WITH PUMP UP BA

 1
89187A - PROTECTOR, YAWRATE SENSOR
89187-52010

NLP110,NSP110

 1
89187A - PROTECTOR, YAWRATE SENSOR
89187-52010

NLP110,NSP110

 1
89441A - SENSOR, DECELERATION
89440-52060

NLP110,NSP110..LHD

 1
89516G - WIRE, SKID CONTROL SENSOR, REAR RH NO.1
89516-52110

NLP110,NSP110

 1
89516-52090

NLP110,NSP110

 1
89516H - WIRE, SKID CONTROL SENSOR, REAR LH NO.1
89516-52100

NLP110,NSP110

 1
89516-52120

NLP110,NSP110

 1
89542 - SENSOR, SPEED, FRONT RH
89542-52120

NLP11#,NSP110

 1
89542-52060

NLP11#,NSP110

 1
89543 - SENSOR, SPEED, FRONT LH
89543-52120

NLP11#,NSP110

 1
89543-52060

NLP11#,NSP110

 1
Common parts
90179-06178
91671-80816
91671-A0614
91671-A0616
Linked diagrams
4102
8401
